Product Details:
|
| Product Name: | Dry Powder Ribbon Blender Mixer Food Mixing Blender Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SUS304,SUS 316,carbon Steel | Speed: | 17-62 Rpm |
| Powder: | 3-90 Kw | Volume: | 50-20000L |
| Warranty: | One Year | Package: | Wooden Case Or Container |
| Highlight: | powder mixing machine,powder blender mixer |
||

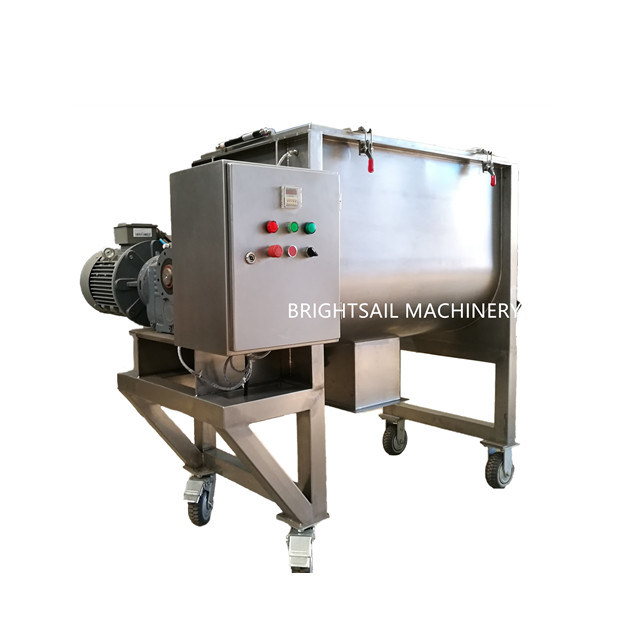

Stainless steel flour blender ribbon mixer machine powder mixing equipment
Our BSR powder blender comprises of U-shape barrel,transmisstion parts and ribbon agitating blades which usually have double or triple layers with outside screw gathering material from side to center and inside screw transmitting the material from center to sides to form convection mix.It is widely used in solid-solid(powder material) and solid-liquid(powder material-fluidity material) mixing in the fields of chemical industry, pharmacy, foodstuff industries.
Working method:
It is mainly comprised of mixing barrel, spiral ribbon and driven parts. The spiral ribbon is made of two layers. That is, the inner ribbon makes the material move outwards, while the external ribbon makes the material move inwards which forms a good circulation of material. Ribbon moves so circumferentially that the mixer could achieve fine mixing efficiency in a very short time.
Main components:
1) Safety net: There is a safety net on the cover, so that operator cannot reach out arms into the mixer, danger can be prevented.
2) Ribbon inside the mixer: make the mixing effect better.
3) Discharge part: Pneumatic valve is adopted to discharge material. Mixing dry powder or powder with a little liquid are applicable.
4) Two types of sealing: The packing seal is a conventional seal on which the gas seal can be added to increase the sealability. The mechanical seal has better sealing performance than the packing seal, less leakage and long service life. It can be used for powder and liquid, and has a wider range of use and higher price.
1) Simple structure in horizontal U shape, easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts, motor, electric parts, bearings and operation parts.
3) Hermetic seals are adopted on both sides of ribbon mixer.
4) Cover has a safety net.
5) Pneumatic valve is adopted to discharge material.
Drawing:
Technical data:
| Model | Max work volume(L) | Speed(rpm) | Motor(kw) | Overall size(L*W*H)(mm) | Weight(kg) |
| BSR-100 | 60L | 62 | 3 | 1080*758*615 | 330 |
| BSR-300 | 180L | 49 | 5.5 | 1550*812*1015 | 780 |
| BSR-500 | 300L | 46 | 7.5 | 1975*1059*1120 | 955 |
| BSR-1000 | 600L | 35 | 11 | 2340*1380*1455 | 1400 |
| BSR-2000 | 1200L | 33 | 15 | 2480*1651*1805 | 2500 |
| BSR-3000 | 1800L | 33 | 18.5 | 2945*1896*1980 | 3300 |
| BSR-4000 | 2400L | 29 | 22 | 3038*1946*2205 | 3600 |
| BSR-5000 | 3000L | 29 | 30 | 3932*2010*2035 | 4320 |
| BSR-6000 | 3600L | 26 | 37 | 3938*1882*2246 | 5300 |
| BSR-8000 | 4800L | 26 | 45 | 3986*2160*2516 | 6800 |
| BSR-10000 | 6000L | 19 | 55 | 4500*2270*2667 | 8900 |
| BSR-15000 | 9000L | 17 | 75 | 5363*2470*3020 | 9950 |
| BSR-20000 | 12000L | 17 | 90 | 5670*2650*3497 | 11140 |
Application:
