Small Circular Grain Wheat Flour Vibrating Powder Sifting Machine , Industrial Powder Sifter

small circular grain wheat flour vibrating powder sifting machine

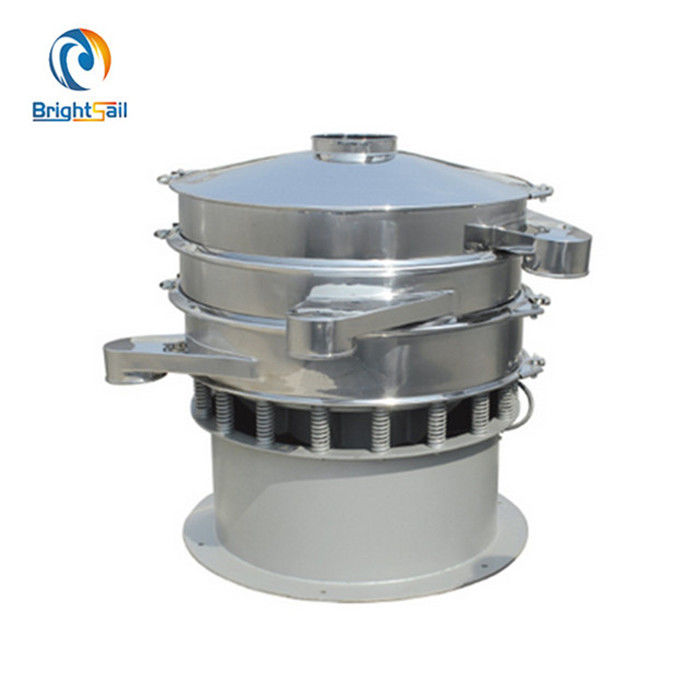

BSST vibrating screen is applied in the sorting of the granule size of dry powder materials in trades of medicine, chemical and foodstuff etc.It is composed of vertical vibration motor,a sieve bottom, a mesh frame, sieve room,rubber vibrating bowl, and all fastening pieces.It can be operated for sorting purpose either in single sieve or multi-sieves.

The diameter of our BSST powder vibrating screen can be ranged from 400mm to 2000mm, with single or multiple screening layers(1-5 layers).Material can be divided into all carbon steel,contact part stainless steel and all stainless steel.

Structure:

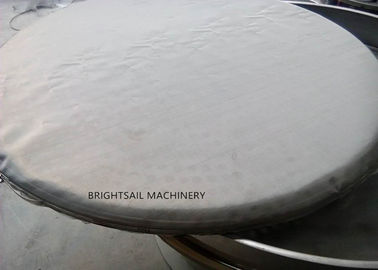

1) Screener box consists of screener frame, screener net, screener shelf, clamp, labyrinth, airproof ring and discharge dish. The screen and the dish are fixed by the special collet. If you want to change the screener net, you only need to turn down the handle. This screener box can used to screen the solid or liquid material. The angle between the placket of the dish and horizontal line is 23°, which makes it more easier to discharge and more greater to screen.
2) Transmission equipment consists of motor, delta-belt, rubber flexibility shaft connector and eccentricity blocks. The block vibration equipment is started up by the shaft connector. Its advantage is that whenever it is started up or stopped, it is very stable and there is no impact.
3) Vibration chamber consists of main shaft pedestal and suspensory equipment of the vibrator. The suspensory equipment consists of each three suits of the rubber frames up and down. The upper three vibrators are fixed on the main shaft pedestal and the down ones are fixed on the machine pedestal. They are connected through low carbonic-steel suspensory stick. This structure makes the equipment moving stably, little noise, and high efficiency.
4) Machine pedestal consists of the machine body and the pedestal, under which it is equipped with the free-rotation truckle, so it can move easily and conveniently. There is the checking door on the pedestal, through which you can check up the parts inside.

Working method:

Vibration system: rubber flexibility shaft connector of the motor and the main shaft; eccentricity vibration blocks on both side of the main shaft; the suspensory screen box and the rubber aseismatic frame connecting with the machine pedestal. The vibrator is connected with the frame by the nonlinear rubber flexibility. It can get the different screener fineness to adjust the different phasic angles of the blocks. At that time, the raw material is forced not only by the horizontal centrifugal force bur also the vertical force, which make the material multiplex movement. The bigger the phasic angle is, the greater the volution is.

Main features:

1. It can be used with single or multiple screening layers(1-5 layers).
2. Automatic discharge of materials, continuous operation.
3. No dead corner, easy to clean.
4. High screening precision, suitable for any powder, granules.
5. New grid structure, long service life of screen cloth, only 3-5min for screen replacement.
6. Small volume, less space occupation, 360 degree adjustment of discharge opening.

Technical data:
