Automatic Icing Powdered Sugar Grinder , 100 To 300 Mesh Flour Pulverizer

Automatic icing sugar powder making machine 100 to 300 mesh flour pulverizer

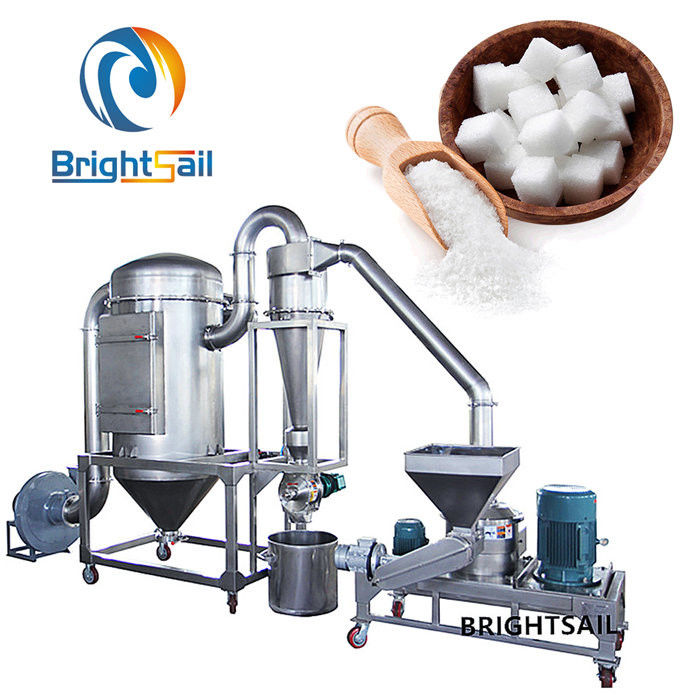

BSP ultra-fine pulverizer consisted of the crusher part, cyclone, dust collecting box, blower and electrical cabinet. It can be used to grind sugar,spice,grains...etc into very fine powder. For examples,if you want to grind sugar, the output size can be 100~1000 mesh fine powder. If you want to grind spice(like ginger,turmeric,garlic...etc), the output size can be 60~300mesh fine powder. If you want to grind grains(like rice,wheat,chickpea...etc),the output size can be 100-200 mesh.

Working method:

The raw material is delivered to the mill chamber by a screw feeder, and is cut and sheared by high speed cutters and eddy current generated by the high-frequency vibration. Due to the action of the negative pressure, the powder been crushed goes to public wheel, by grade wheel’s rotating and centrifugal force of the air knife,powder whose size is bigger than grade particle size will be sent back to crush chamber.Qualified powder will go to pipe and be discharged.

Main specialty:

1. The design is compact and structure is reasonable. The machine is equipped with an internal classification mechanism so that grinding and
classification are carried out simultaneously, thus reducing energy consumption.
2. Equipped with a blower, which dissipates the heat in the machine continuously, the machine is fit for the grinding of thermal sensitive
materials.
3. Having a great adaptability and narrow granularity distribution. The granularity of the product is even and fineness may reach 80-320 mesh.
4. Regulate the speed of the classifier or amount of the air without stopping the machine and evenly distributed products of the required
granularity will be obtained.
5. The top cover of the main machine is opened with pneumatic springs and the body is constructed in such a way that it may be opened to two sides so that no hindrance will be met in cleaning and servicing the internal parts.
6. The main grinding parts are made of high-grade alloy tool steel so that the service life or change cycle of the wear parts is greatly lengthened.
7. High-speed precision bearings imported from abroad are adopted for the bearing system so that the whole machine runs smoothly with little vibration and noise.
8. The pipes are of quick-detachment construction, making detachment and cleaning quick and convenient.

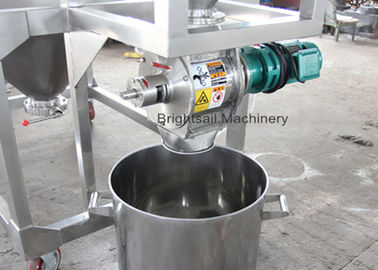

9. Equipped with a cyclone separator and a collector, so there is no powder flying during production. The dust collecting bag can effectively collect the fine powder in the air current so as to meet the requirements for cleanness and environmental protection in waste gas discharge.
10. The fine powder collected by the dust collecting bag can be effectively recycled. thus the material loss is reduced.

Packaging:
Export standard package. Fumigation wooden box or container.
For small machine, we pack it in wooden box.
For super big machine, we will separate the machine into several parts and pack it with film. Then, fix them in container with steel to avoid any shaking or moving during the shipping.

Technical data:
