Product Details:
|
| Material: | SS 304/316 | Capacity: | 50-1000 Kg/h |
|---|---|---|---|
| Fineness: | 40-1000 Mesh | Feed Size: | <15 Mm |
| Voltage: | Customized | Warranty: | One Year |
| High Light: | hammer pulverizer machine,spice making machine |
||

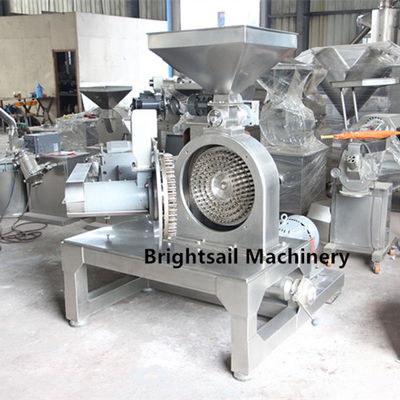

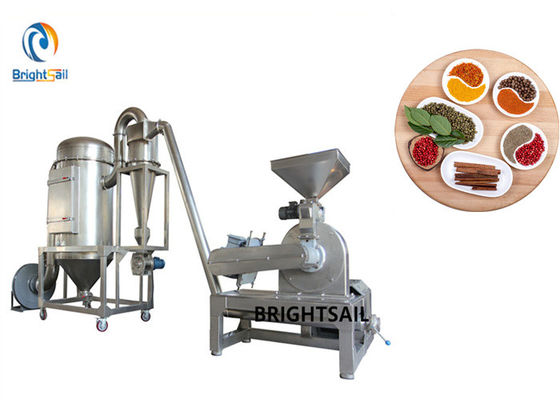

Spices powder making machine coriander seeds pin mill masala grinding machine
The special grinding machine for oil products and chemical raw materials is the introduction of foreign technology, through many years of improvement has been made.
Our BSZ pin mill machine meets the food hygiene standard, simple operation, low noise. It's suitable for all kinds of food, chemical production and processing enterprises.It has two-way wheel grinding and one-way wheel grinding,model size is 350/450/550/630.
Working method:
By means of relative motion between flexible and fixed fluted discs, material is crushed through impact and friction of the teeth and impact among the material. The crushed material flows into the cyclone separator by the gravitation of blower and rotating centrifugal force, then discharges through gate blower. Dust comes into the pulse dust evacuator box, filtered and recycled by the filter cylinder. Bidirectional pair wheels adopt the way of reverse rotation of front and back grinding wheels, thus this way improves the crushing effect. Double discs install the needle cylinders whose diameters are different, every part arrays needles and bars through the technology of three dimensional simulation, designing the layout rationally and thus it can control the materials to achieve the effective split effect in the gap of needle bar efficaciously. Needles and bars can adopt the shape of hexagonal,square,wolf teeth and so on according to crushing materials.
Main features:
1) The linear structure is simple and easy to install and maintain.
2) Use world-renowned brand components, including pneumatic components, electrical parts and operating parts.
3) There is no screen in the grinding room,if you want to change powder particle size,just change the speed by inverter.
4) Very fine powder can be made.
Our company:
Our company-Brightsaill Machinery Co., Ltd is focus on the research of powder equipment, such as grinding machine, mixing machine, drying machine,powder filling machine... etc. Our products are widely applied in food, medical,chemical and other industries and had won a good reputation.
After over 15 year's development and accumulation, our company has been one of the most influential equipment manufacturers in the industry. And we have sold the machines to more than 50 countries,we have enough experience to recommend a most suitable machine for you.
After-sales service:
Pre-sale service
Provide consulation, help customers make the project planning and system requirements analysis
Provide product picture and working video, formal quotation
After-sale service
Related technical information,including operation manual, electric diagram
Free spare parts
According to customers' requirement, we can provide installation and employees' training service
Technical data:
| Model | BSZ-350 | BSZ-450 | BSZ-550 |
| Capacity(kg/h) | 60-200 | 150-500 | 230-700 |
| Feed size(mm) | <15 | <15 | <15 |
| Output size(mesh) | 40-1000 | 40-1000 | 40-1000 |
| Cavity disc crush motor(kw) | 18.5 | 22 | 37 |
| Door disc crush motor(kw) | 15 | 18.5 | 30 |
| Feed screw motor(kw) | 0.37 | 0.55 | 0.75 |
| Speed(rpm) | 12000 | 9600 | 8400 |
