Product Details:
|
| Material: | SS 304/316 | Capacity: | 20-1800 Kg/h |
|---|---|---|---|
| Input Size: | <15 Mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75 Kw | Voltage: | Customized |
| High Light: | hammer pulverizer machine,grain grinder machine |
||

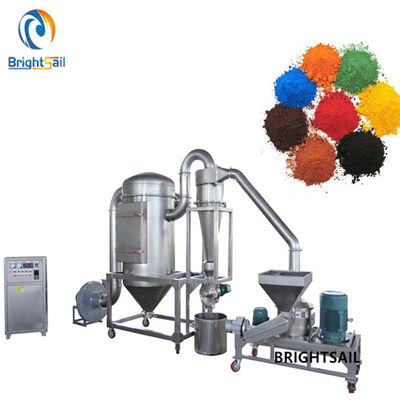

Pigment powder making machine talc bentonite fine powder mill grinder machine
BSP ultra-fine pulverizer is developed and optimized based on the similar domestic and foreign products with our practical experience, which is very suitable for grinding and classifying materials in food, chemical, pharmaceutics and other fields.
It's used in making super fine powder, with fineness up to 2500mesh, has the advantages of high efficiency, easy operating, easy cleaning, steady production, hard and durable.
Working method:
Material is fed into the grinding chamber via screw feeder and strongly impacted and collided into fine powder between the high-speed disc rotor and teeth liner. After grinding process, fine powders are carried to the classifying section by airflow where qualified powders are suctioned into the interior of the classifying wheel and discharged as products; coarse powders flow through the inner guide ring back to the grinding chamber because of centrifugal force for re-grinding. Final product is collected by cyclone and bag house.
Main features:
1. Alloy steel hammer blades and rotor
2. GMP and food grade design
3. Negative working condition can prevent dust and be suitable for heat sensitive material pulverization.
4. Output size is adjustable via air classifier and air flow rate.
5. Feeding rate is automatic controlled
6. Particle size distribution can be accurately controlled
Service:
A.Technical service
1. We calculate the capacity and recommend the best models according to your demand.
2. We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3. We supply the spare parts and technical support in and after the warranty time.
4. We supply the training course to your workers at your factory if you need.
B. After-sales service
1. Technical support for your installation,operation and maintenance.
2. One year warranty, and you can pay for extended warranty if necessary.
3. Spare parts and technical support at the most economic prices after the warranty.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
FAQ:
Q: What information should be provided in order to get a proposal or quotation?
A: Each air classifying mill pulverizer is specially designed for each customer according to specific material, capacity, feed material size and product size. Before we can work out a detailed proposal or quotation, we have to know the following information:
1) Detailed information of material which you want to grind
2) Size of your material
3) Your required particle size after grinding
4) Grinding capacity in kg/h
