Product Details:
|
| Warranty: | One Year | Capacity: | 3-300 Kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | Feed Size: | <10 Mm |
| Material: | SS 304/316 | Voltage: | Customized |
| High Light: | hammer pulverizer machine,grain grinder machine |
||

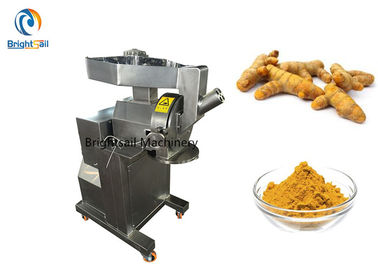

3 to 300 kg per hour turmeric powder making machine spices grinder with CE
Our BS high speed hammer mill is widely used in the pulverization of materials in the pharmaceutical, food, chemical and other industries. The fineness is adjusted between 20-120 mesh. It has the advantages of fine grain size, low noise, low energy consumption, simple maintenance and convenient installation.
Working method:
The machine is composed of three parts: frame, mill chamber and feeding part. There is one moveable cutter head on the principal axis. And one fixed gear ring is installed in the mill chamber. Under the gear ring, there is the screen. When the principal axis works on high speed, the moveable cutter head runs together. The materials are impacted, rubbed, cutted by the fixed gear ring and moveable hammer. And materials also collide with each other. Under the combined effects, they are crushed into powder.
Main features:
1. The crushed materials can be discharged directly from the mill chamber. The fineness can be adjusted by changing the mesh of different meshes.
2. The contact part of grinder is made of stainless steel, which has good corrosion resistance.
3. The inner wall of the machine is smooth without powder or dead angle.
4. Easy to clean, which can make the production of drugs, chemicals and food meet GMP requirements.
Our service:
A. Pre-sales service:
1. We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2. We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3. We will recommend and offer machine according to customer’s use and purchase budget.
B. In-sale service:
1. We will supply each manufacturing step photo for customer checking on time.
2. We will prepare packing and shipment according to customer’s needing in advance.
3. Testing the machine and making video for customer’s checking.
C. After-sale service:
1. We will guarantee the machine quality for 1 year.
2. We provide free training and answer customer's question on technology in time.
Technical data:
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size(mm) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
| Grind fineness(mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/h) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter(mm) | 200 | 270 | 330 | 380 |
| Rotor speed(rpm) | 5900/8600 | 4200/6200 | 2600/5100 | 2200/4400 |
| Motor(kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size(L*W*H)(mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
