Product Details:
|
| Warranty: | One Year | Capacity: | 50-5000 Kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | Material: | SS304/316 |
| Voltage: | Customized | Package: | Container |
| High Light: | hammer pulverizer machine,spice making machine |
||

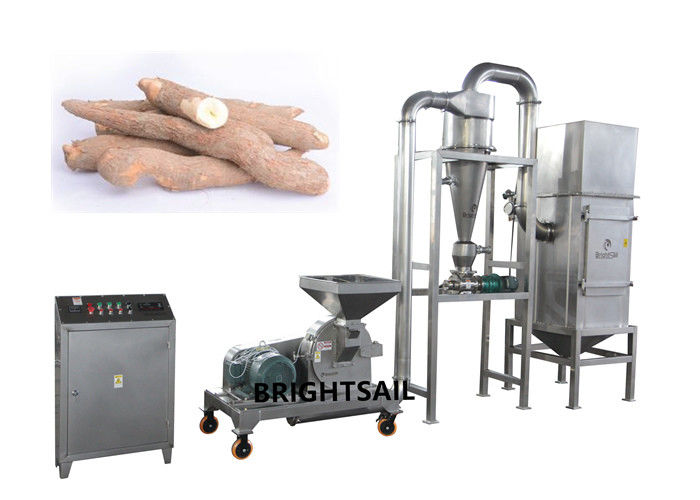

Wheat food powder making machine cassava yam flour milling grain grinder machine
Our BSG self absorb grinding set is designed by our-own, It’s a newly high efficiency powder producing machine. Widely used in chemistry, dyestuff, dope, pharmaceutical, foodstuff industries with the features of general function, compact structure, stability, low power consumption, widely applications, easy maintenance, etc. No pollution after de-dusting. It’s an ideal complete equipment for Environmental Protection. The Grinding Chamber also equip with water-cooling system combined with air-cooling, avoid the damage to the products caused by the high-temperature inside the chamber.
Working method:

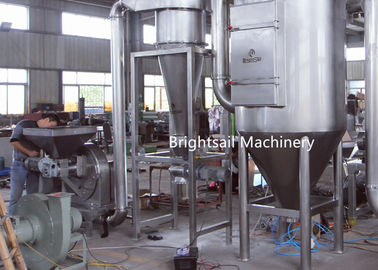

The products enter into the grinding chamber through the hopper, impacted by the high-speed rotary grinding discs/hammers, been thrown into the fixed gear rings, then been bounced and sheared. Meanwhile, under the impact, cut, rubbing force by turns, the material is micronized well. Under the negative pressure from the Blower and Impeller, the powder are absorbed into the cyclone through the sieve, pipes for discharging. And some mini-powder dust is collected by the pulse de-duster.
Main Features:
1. Self-absorbed type, with high efficient capacity.
2. Equiped with dust collection system, the machine can absorbe the dust caused from the milling chamber into the dust collector. and the final powder are self outlet with the help of outlet system, this system solve the normal machine's powder flying situation.
3. The machine occupy a samll area. The rotating blade in the milling chamber take away the heat caused during milling, so it can effectively avoid the high temperature may affect the materials' characteristic.
4. The discharging part is equipped with a sealed rotary discharging, it can make the discharging process be much more smooth/even, makes sure there is no powder-flying situation during the production.
5. Grinding chamber is equipped with Water-Cooling system, which can effectively avoid the high-temperature's damage to your products caused during the grinding process.
Packing and shipping:
About goods shipping:
We have long-term cooperation with shipping company and shipping forwarder.
We can do our best to send machine to your port safe and sound .
If you need , we can help you do custom clearance .
Packaging Details:
1. Outside package: Standard export wooden cases.
2. Inner package: wrapping film.
3. For big machine, using steel wires and nail to fix the machine inside container
Technical data:
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
