Product Details:
|
| Warranty: | One Year | Capacity: | 50-5000 Kg/h |
|---|---|---|---|
| Voltage: | Customized | Material: | SS304 Or Carbon Steel |
| Screen Mesh: | 10-120mesh | Package: | Wooden Case |
| High Light: | industrial powder sifter,vibro sieve machine |
||

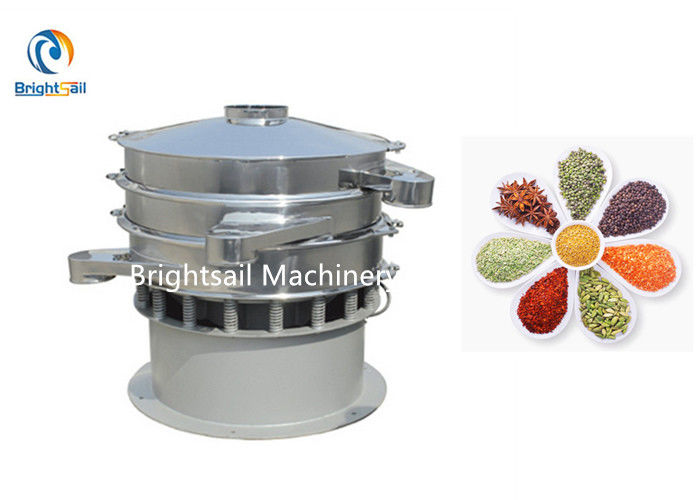

Lab use spice powder sifter machine vibrating chili pepper flour sifting machine
BSST sifting machine is developed according to the foreign information. The contact between the machine and material is all the stainless steel. It is widely used to screen the raw material in the pharmacy, foodstuff industry, chemical industry, cosmetic industry, etc.
It is a high efficiency screening machine manufactured with advanced technologies and designs.It features eco-friendliness, conveninent sifter changing process, low working noise, enclosed structure, high safety and efficiency.
Working method:

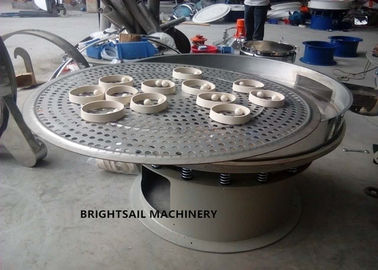

The rubber flexible shaft joint of the motor and the main shaft, the eccentric vibration blocks on both sides of the main shaft, the hanging screen box and the rubber anti-vibration frame connected to the machine base. The vibrator is connected to the frame by a non-linear rubber compliance. It can get different screener fineness to adjust different phase angle blocks. At that time, the raw materials were not only subject to horizontal centrifugal force, but also to vertical centrifugal force, which caused the material to have multiple movements. The larger the phase angle, the larger the whirl.
Main features:
1. This machine adopts special high performance vertical motor to provide powerful force and supports constant work.
2. The parts which contact material are made of food grade stainless steel 304 board, is sanitary and axenic with high corrosion and wear resistance.
3. The sieve adopts the top stretching technology in the industry,which powerfully increases the effective area of the sieve with extremely high sieving precision, thus increasing the output volume.
4. Convenient cleaning, the mesh won't be jammed and can be used repeatedly.
Application:
1. Chemical industry: resin, paint, industrial drugs, cosmetics, paint, herbal powder and so on.
2. Food industry: sugar powder, starch, salt, rice powder, milk powder, soybean milk, seasoning flour,etc
3. Metals, metallurgy and mining: aluminum powder, lead powder, copper powder, ore, alloy powder,etc
4. Powder: manganesedioxide, electrolytic copper powder, Electromagnetic material, grinding powder, refractory materials, kaolin, lime, alumina, heavy calcium carbonate, quartz sand, etc.
Technical data:
| Model | BSST-600 | BSST-800 | BSST-1000 | BSST-1200 | BSST-1500 |
| Capacity(kg/h) | 180-2000 | 200-2500 | 250-3500 | 300-4000 | 350-4500 |
| Power(kw) | 0.4 | 0.75 | 1.1 | 1.5 | 2.2 |
| Screen mesh | 12-200 | 12-200 | 12-200 | 12-200 | 12-200 |
| Diameter(Ø)(mm) | 600 | 800 | 1000 | 1200 | 1500 |
| Vibrating freq | 1500 | 1500 | 1500 | 1500 | 1500 |
| Weight(kg) | 200 | 300 | 410 | 500 | 650 |
FAQ:
1) What material you want to sieve?
2) What sieve size do you need? (like 20 mesh, 40 mesh, 60 mesh ...etc)
3) How many layers of sieve do you need?
4) What is the powder size before sifting, for example, you choose 60 mesh screen in sifter, how much % can pass 60 mesh?
