Product Details:
|
| Product Name: | Dry Powder Flour Granules Sifter Vibrating Screen Sifting Machine | Warranty: | One Year |
|---|---|---|---|
| Application: | Food,chemical,pharmaceutical,etc | Capacity: | 50-5000 Kg/h |
| Voltage: | Customized | Material: | SS304 Or Carbon Steel |
| Screen Mesh: | 10-120mesh | Package: | Wooden Case |
| High Light: | industrial powder sifter,vibro sieve machine |
||

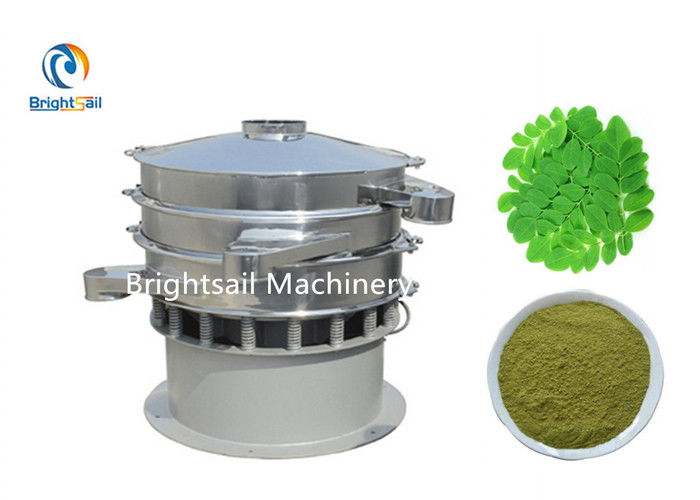

Small moringa leaf powder sifter machine wheat grass tea flour sifting machine
BSST sifting machine adopts new type dynamic generator, making three dimension powers more obviously and successfully, making the scale of processedmaterials enlarged.This machine is widely used to screen the raw material in the pharmacy, foodstuff industry, chemical industry, cosmetic industry, etc. Such as seasoning powder, Herbal powder, grain flour and so on.
Working method:
The vibration of the sieve is produced by the vibration of the vibrating device, which forces the material to form the orbital vortex in the sieve machine, which is very useful for sieving the material. Adjusting the relative position of the upper and lower heavy hammer can improve the moving track of the material on the sieve surface, prolong or shorten the staying time of the material on the sieve surface, so as to achieve the ideal sieving effect.
Main features:
1. Can be used with single or multilayer screen mesh.
2. Automatic discharge of materials, continuous operation.
3. No dead corner of parts, easy rinse thoroughly and disinfection.
4. High screening precision, high efficiency, suitable for any powder, grain and mucus materials.
5. New grid structure, long service life of screen cloth, only 3-5min for screen mesh replacement.
6. Small volume, less space occupation, easy to move,360 degree adjustment of discharge opening.
7. Fully enclosed structure, no flying dust, no liquid leakage, no blocking of mesh opening.
Our company:
Brightsail Machinery is one of leading manufacturer of pulverizer machine, mixing machine, drying machine, vibrating screen sifter, conveying machines and other powder solutions machines with more than 15 years designing and manufacturing experiences.All of our products are widely used in food, pharmaceutical, chemical and other fields. Warmly welcome friends from all over the worlds to our company, we looks forward to sincere cooperation and mutually beneficial development with you.
Technical data:
| Model | BSST-600 | BSST-800 | BSST-1000 | BSST-1200 | BSST-1500 |
| Capacity(kg/h) | 180-2000 | 200-2500 | 250-3500 | 300-4000 | 350-4500 |
| Power(kw) | 0.4 | 0.75 | 1.1 | 1.5 | 2.2 |
| Screen mesh | 12-200 | 12-200 | 12-200 | 12-200 | 12-200 |
| Diameter(Ø)(mm) | 600 | 800 | 1000 | 1200 | 1500 |
| Vibrating freq | 1500 | 1500 | 1500 | 1500 | 1500 |
| Weight(kg) | 200 | 300 | 410 | 500 | 650 |
FAQ:
If you want to get a detailed quotation of a suitable flour sifting machine,please tell us the details as below:
1. Material's name,the density(kg/m3),water content(%)
2. The necessary capacity you required(per hour)
3. The material of the machine you want.
4. The dimension of the machine you want.
5. How many layers you need?
6. Please inform the voltage&frequncy in your city.
