Product Details:
|
| Warranty: | One Year | Capacity: | 50-5000 Kg/h |
|---|---|---|---|
| Voltage: | Customized | Material: | SS304 Or Carbon Steel |
| Screen Mesh: | 10-120mesh | Package: | Wooden Case |
| High Light: | powder sifting machine,vibro sieve machine |
||

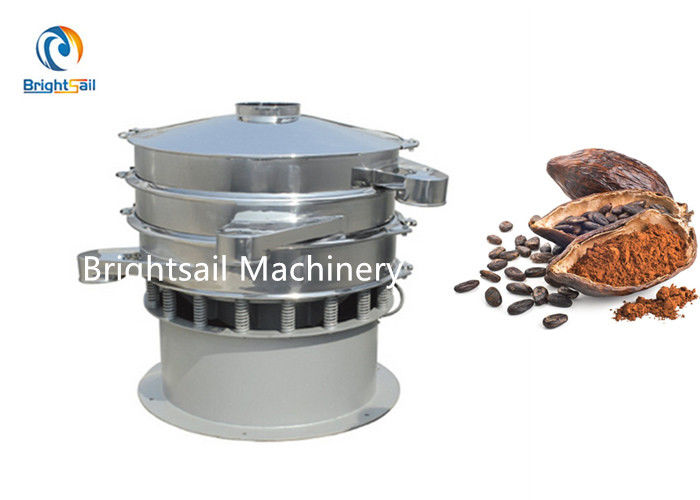

Round food grade powder sifter machine sugar cocoa flour sifting machine
BSST sifting machine makes use of upright motor as the source of vibration, is suitable for the quick separation and filter of any powder, grain, foodstuff, chemical, pharmaceutical, grinding and metals processing etc.
It is a new-type and high efficient machine which moves circularly and has multi-layers. It possesses the features of many specifications, reliability, strong exciting force, high efficiency, little noise, durability, convenient maintenance and safety.Vibrating screen machine is applied to sieveing and filtering powder and partical in different fields.
Working method:
The fundamental principle of round separator is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.
Main features:
1) As the screen vibrates in multiplane hence the holes of the screen remain clear.
2) Due to vibrations in the vertical plane, blinding of screen is minimized. However, for certain materials which have inherent blinding, sticking property and special accessories can be used to eliminate this problem.
3) The design enables to utilize the vibratory force generated by the motor to the optimum and very few moving parts reduce the maintenance to minimum.
4) As many as five screens could be mounted on one separator achieving six sizes materials to get.
5) Because of the little input mouth,The whole operation is very clean and pollution free.
Application:
1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, etc.
4) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
5) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
Our company:
Brightsail Machinery is specialized in making pulverizer machine, mixing machine, drying machine, sifting machine, packing and filling machine and other powder solutions machines with more than 15 years designing and manufacturing experiences.All of our products are widely used in food, pharmaceutical, chemical and other fields. Warmly welcome friends from all over the worlds to our company, we looks forward to sincere cooperation and mutually beneficial development with you.
Technical data:
| Model | BSST-600 | BSST-800 | BSST-1000 | BSST-1200 | BSST-1500 |
| Capacity(kg/h) | 180-2000 | 200-2500 | 250-3500 | 300-4000 | 350-4500 |
| Power(kw) | 0.4 | 0.75 | 1.1 | 1.5 | 2.2 |
| Screen mesh | 12-200 | 12-200 | 12-200 | 12-200 | 12-200 |
| Diameter(Ø)(mm) | 600 | 800 | 1000 | 1200 | 1500 |
| Vibrating freq | 1500 | 1500 | 1500 | 1500 | 1500 |
| Weight(kg) | 200 | 300 | 410 | 500 | 650 |
