Product Details:
|
| Product Name: | Double Cone Powder Mixer Blender Mixing Blending Machine | Material: | SS304/316 |
|---|---|---|---|
| Volume: | 180-4000L | Warranty: | One Year |
| Mixing Time: | 4-10 Min | Power: | 1.1-11kw |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| Highlight: | powder mixing machine,powder blender mixer |
||

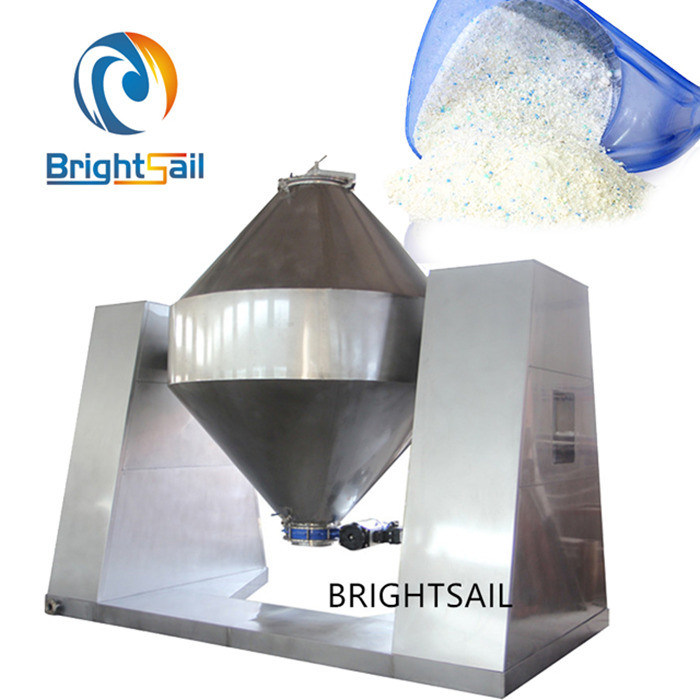

Detergent powder blender mixer machine chemical flour blending equipment
BSW double cone mixer absorbs foreign products advantage to design, because two barrels length are not same will not asymmetry; when the mixer revolution, the raw material in barrel analysis and combination with different potential energy. The raw material spread mixing alternately, with the time go on, the raw material will mixed very well.
It is widely applied in food, chemical, pharmaceutical and other industries,such as coffee powder, detergent powder, seasoning powder, protein powder and so on.
Working method:
W model double cone powder mixer is most often used for the intimate dry mixing of free flowing solids. The materials are fed into the mixing barrel via quick-open feed port manually or by vacuum feeder. With the rotation of mixing barrel, materials can be completely mixed with high degree of homogeneity. Normal cycle times are typically in the range of 10 minutes, however they can be less depending on the difficulty of mixing.
Main features:
1. The mixing barrel of the machine has unique structure, uniform mixing, high efficiency and non accumulation.
2. The utility model has the advantages of simple structure and easy operation.
3. The outer surface and material contact parts are made of high quality stainless steel, with beautiful appearance, convenient maintenance and cleanness
4. The mixer inner walls are smooth without any dead corner. The tank is provided with unique four-direction mixing movement track.
5. High mixing precision and high speed, ideal mixing effect is achieved.
Our company:
Brightsail Machinery has found nearly 15 years, who designs and manufactures overall powder processing solutions for the Chemical, Pharmaceutical, Food, Mineral, Cosmetic and Plastic industries, like powder grinding machines, mixing machines, sifting machines...etc.
Our company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as Australia, Indonesia, Pakistan, America, Canada, Gernmany, France, Iraland,etc) and also have the good cooperation with the foreign client and vendor.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!
Technical data:
|
Model
|
BSW-180
|
BSW-300
|
BSW-500
|
BSW-1000
|
BSW-1500
|
BSW-2000
|
BSW-2500
|
BSW-3000
|
BSW-4000
|
|
Full volume(m3)
|
0.18
|
0.3
|
0.5
|
1.0
|
1.5
|
2.0
|
2.5
|
3.0
|
4.0
|
|
Mixing time(min)
|
4-8
|
6-10
|
6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
|
Mixing speed(rpm)
|
12
|
12
|
12
|
12
|
12
|
12
|
12
|
7.8
|
7.8
|
|
Power(kw)
|
1.1
|
1.1
|
2.2
|
4
|
4
|
7.5
|
7.5
|
7.5
|
11
|
|
Gross rotation
height(mm)
|
1850
|
1850
|
1950
|
2460
|
2540
|
3650 |
3650
|
3700
|
3730
|
|
Weight(kg)
|
280
|
310
|
550
|
810
|
980
|
2150
|
2150
|
2500
|
3200
|
