Product Details:
|
| Product Name: | Double Shaft Paddle Powder Mixer Blender Mixing Machine | Material: | SUS304,SUS 316,carbon Steel |
|---|---|---|---|
| Application: | Food,chemical,pharmaceutical,etc | Motor Power: | 3-75kw |
| Volume: | 100-10000L | Warranty: | One Year |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | mixing blender machine,powder mixing machine |
||

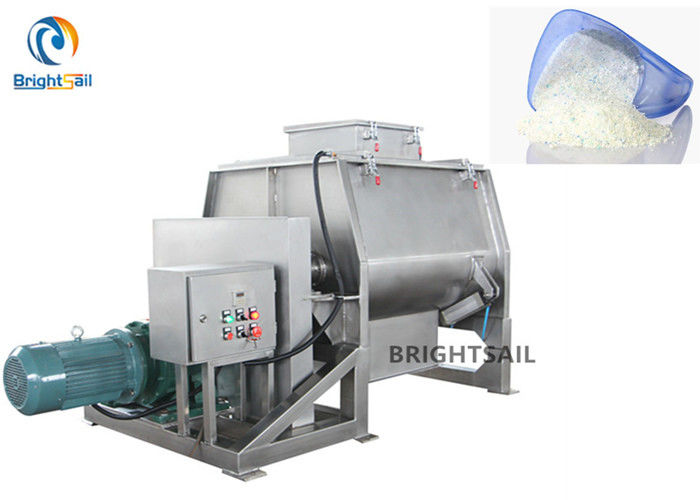

Washing powder blender mixer machine double shaft paddle detergent powder mixer
Our BSL double shaft paddle mixer is an ideal mixing machine with low-speed, high-efficient and energy-saving characteristics. It is applicable to mix all kinds of powder or pasty materials.
It is mainly used for thermal insulation mortar, anti-crack mortar, bonding mortar, mortar, floor mortar, concrete admixture, chemical powder, high homogeneity, etc. In the case of larger fibers, the mixer can add shearing blades, and then crush and disperse the fiber material, and obtain a satisfactory mixing effect through the shearing blades in a relatively long time.
Working method:
This machine consists of two rotors with reverse rotation directions, welding many paddles in the rotor with different special angles. Paddles make the materials counterclockwise rotating along slot inner wall, and make materials stirring left and right. The overlapped area of two rotors makes a zero-gravity area, no matter what size, shape and bulk density materials are, they are even mixed in the mixer.
1. Material of the machine can be carbon steel, SS304, SS316 and so on. Besides, different material can also be used in combination between the part contact with the raw material and the parts don’t contact with the raw material.Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer.
2. The driven unit, power and speed are varied according to different raw material, starting method, and processing.
3. According to the properties of raw materials, the paddle can be adjusted and designed accordingly.
4. Standard valve for double shaft paddle mixer is twin pneumatic planar flap valves.When close the valve, the planar flaps match the mixing barrel perfectly, this makes no mixing dead zone and better mixing effect.
Why to choose us?
1. Our sellers are professional, they will offer suitable and good quality machine for with reasonable price.
2. All your inquiry or problem will be answered or solved within 24 hours.
3. We offer best service and help from receiving your inquiry to you using machine.
4. We own powerful warehousing ability,so make sure your delivery quickly.
5. Our warranty date is one year when customer receive the machine.
Technical data:
|
Model
|
Work
volume
|
Speed
(rpm)
|
Motor
power(KW)
|
Overall size (L*W*H)
(mm)
|
Weight
(kg)
|
Output size
(mm)
|
|
BSL-100
|
60L
|
2*57
|
3
|
1320(L)*700(W)*700(H)
|
320
|
2*200*50
|
|
BSL-300
|
180L
|
2*57
|
5.5
|
1242(L)*1278(W)*1025(H)
|
750
|
2*250*60
|
|
BSL-500
|
300L
|
2*51
|
7.5
|
1412(L)*1410(W)*1230(H)
|
1000
|
2*300*80
|
|
BSL-1000
|
600L
|
2*43
|
15
|
1875(L)*1610(W)*1350(H)
|
1550
|
2*350*120
|
|
BSL-2000
|
1200L
|
2*43
|
18.5
|
2312(L)*2160(W)*1775(H)
|
2500
|
2*350*120
|
|
BSL-3000
|
1800L
|
2*36
|
22
|
2408(L)*2400(W)*1955(H)
|
2900
|
2*350*120
|
|
BSL-4000
|
2400L
|
2*36
|
30
|
2822(L)*2546(W)*2015(H)
|
3600
|
2*360*140
|
|
BSL-6000
|
3600L
|
2*29
|
45
|
3075(L)*2980(W)*2235(H)
|
5600
|
2*700*140
|
|
BSL-8000
|
4800L
|
2*29
|
55
|
3278(L)*3426(W)*2425(H)
|
7100
|
2*700*140
|
|
BSL-10000
|
6000L
|
2*29
|
75
|
3538(L)*3645(W)*2615(H)
|
8000
|
2*800*140
|
