Product Details:
|
| Product Name: | Double Shaft Paddle Powder Mixer Blender Mixing Machine | Material: | SUS304,SUS 316,carbon Steel |
|---|---|---|---|
| Application: | Food,chemical,pharmaceutical,etc | Motor Power: | 3-75kw |
| Volume: | 100-10000L | Warranty: | One Year |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | mixing blender machine,powder blender mixer |
||
Industry cement blender mixer machine pigment paint powder paddle mixer machine

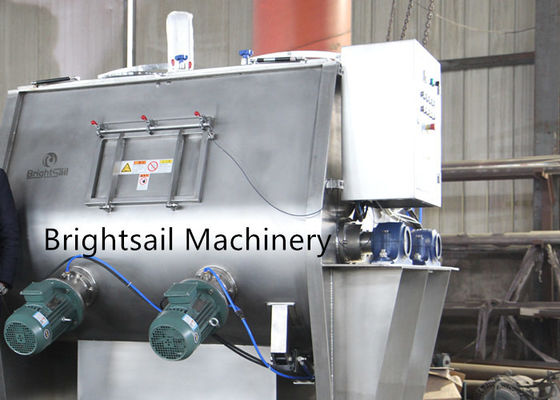

Our BSLdouble shaft paddle mixer is a new type of high homogeneity mixer which makes material weightless during mixing.It is widely used in heavy bulk density, high viscosity material such as dry mortar, metal, rubber, mining, plastic, chemical, Metallurgy industry and to meet highest homogeneity.
Working method:
Double shaft paddle mixer is with 2 horizontal paddle shaft; there is the paddle on each shaft.With the driven equipment, two cross paddle shafts moves intersection and patho-occlusion. Driven equipment makes paddle rotating fast; the rotating paddle generates centrifugal force during high speed rotation, spilling the material to the upper part in the barrel, then material falling down (the vertex of material is in a so-called instant non-gravity state). Driven by the blades, material is mixed back and forth; also sheared and separated by the meshing space between the twin shafts; fast and evenly mixed.
1. The production efficiency is high, the mixing time is short, and the power consumption of tonnage is small.
2. It is not easy to produce segregation when mixing materials with different physical properties such as specific gravity, particle size and shape.
3. Bottom open door technology, quick discharge and the residue is very low.
4. Equipped with safety interlocking device to protect personal safety
5. Carbon steel, stainless steel and other different materials can be selected.
6. Flexible body to open the door,the door-sealing,to ensure that materials are not leaking.
7. It is widely used in feed, additives, chemical, pharmaceutical, pesticide, dyestuff and food industries.
Packing and shipping:
1. We provide shipping methods:Courier service,Air transport,Sea Transport
2. Can accept order:Full container cargo load,Less container load
3. Delivery term :EXW,FOB,CIF,CNF etc.
We always choose the most economical and reliable shipping company to make sure you receive the goods in time. The BL and tracking number will be provided to you once the consignment is shipped.
Technical data:
|
Model
|
Work
volume
|
Speed
(rpm)
|
Motor
power(KW)
|
Overall size (L*W*H)
(mm)
|
Weight
(kg)
|
Output size
(mm)
|
|
BSL-100
|
60L
|
2*57
|
3
|
1320(L)*700(W)*700(H)
|
320
|
2*200*50
|
|
BSL-300
|
180L
|
2*57
|
5.5
|
1242(L)*1278(W)*1025(H)
|
750
|
2*250*60
|
|
BSL-500
|
300L
|
2*51
|
7.5
|
1412(L)*1410(W)*1230(H)
|
1000
|
2*300*80
|
|
BSL-1000
|
600L
|
2*43
|
15
|
1875(L)*1610(W)*1350(H)
|
1550
|
2*350*120
|
|
BSL-2000
|
1200L
|
2*43
|
18.5
|
2312(L)*2160(W)*1775(H)
|
2500
|
2*350*120
|
|
BSL-3000
|
1800L
|
2*36
|
22
|
2408(L)*2400(W)*1955(H)
|
2900
|
2*350*120
|
|
BSL-4000
|
2400L
|
2*36
|
30
|
2822(L)*2546(W)*2015(H)
|
3600
|
2*360*140
|
|
BSL-6000
|
3600L
|
2*29
|
45
|
3075(L)*2980(W)*2235(H)
|
5600
|
2*700*140
|
|
BSL-8000
|
4800L
|
2*29
|
55
|
3278(L)*3426(W)*2425(H)
|
7100
|
2*700*140
|
|
BSL-10000
|
6000L
|
2*29
|
75
|
3538(L)*3645(W)*2615(H)
|
8000
|
2*800*140
|
