Product Details:
|
| Product Name: | V Shape Powder Mixer Blender Flour Mixing Blending Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS304/316 | Volume: | 50-5000L |
| Warranty: | One Year | Mixing Time: | 4-10 Min |
| Power: | 1.1-11kw | Voltage: | Customized |
| High Light: | mixing blender machine,powder mixing machine |
||

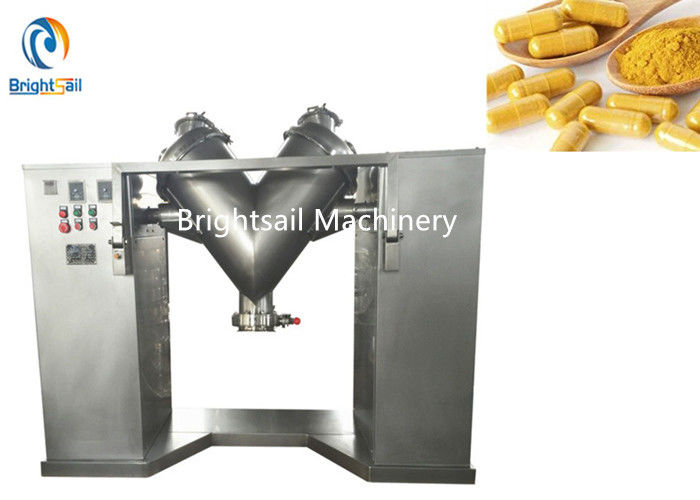

industrial pharmaceutical powder blender mixer machine vitamin V shape blender
BSV powder mixing machine is international common powder, dry grain material mixing machine, It has the advantages of simple structure, easy operation, convenient to maintain and clean, fast speed, the mixing effect, Widely used in pharmaceutical, chemical, food, electronics, metallurgy, plastics, refractories and other industries, is a kind of ideal high-efficient dry powder mixing equipment.
Working method:

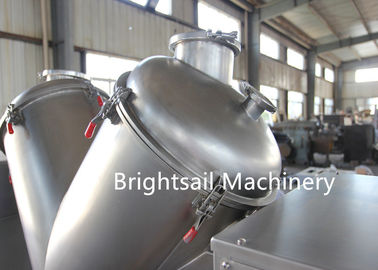

The main part of the mixer is welded by two cylindrical V-shapes. The feed port is a quick locking device and the discharge port is a manual butterfly valve. The operation is fast and simple. The fixed forced mixing shaft is made of sanitary stainless steel seamless steel pipe. The main body is fixed on the shaft sleeves at both ends of the cylinder. Through the relative movement with the mixing cylinder, the material can be forced to roll and the mixing can be improved.
Main features:
1) With safety bar, mixer can work when safety bar is in horizontal position. When safety bar is upward turned, power will be cut automatically and mixer is stopped. This function will protect operator from possible injury from the rotating V mixing barrel.
2) With auto-positioning stop function, when machine stops, the discharge parts is right towards the ground automatically, no need to use point-stop (jog) manually.
3) With intensifier bar (agitator) inside mixer, mixing effect will be better; when mix powder which is a little sticky or bad fluidity, this is high recommended to add.
FAQ:
If you want to send inquriy to me about our product, could you please tell me?
1) What material you want to mix, is it dry, what is the size of feed material?
2) What capacity you expect? (kg/h)
3) What mesh or mm or micron (size) of the powder you want?
4) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz 3p; 220V... etc.
(We only provide 3P, because our machines are all for industrial use, not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Technical data:
| Model | BSV-100 | BSV-200 | BSV-300 | BSV-500 | BSV-1000 | BSV-1500 | BSV-2000 | BSV-2500 | BSV-300 | BSV-4000 |
| Total volume(m³) | 0.1 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 |
| Mixing time(min) | 4-8 | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Cylinder speed(rpm) | 15 | 15 | 12 | 12 | 12 | 10 | 10 | 8 | 8 | 7 |
| Main motor power(kw) | 1.1 | 1.1 | 1.1 | 2 | 4 | 5.5 | 7.5 | 7.5 | 7.5 | 11 |
| Agitator power(kw) | 0.75 | 0.75 | 0.75 | 1.5 | 2.2 | 2.2 | 3 | 3 | 4 | 5.5 |
| Weight(kg) | 230 | 290 | 400 | 550 | 850 | 1020 | 2040 | 2200 | 2500 | 2800 |
