Product Details:
|
| Product Name: | Small High Speed Powder Making Grinder Hammer Mill Grinding Pulverizer Flour Milling Machine | Warranty: | One Year |
|---|---|---|---|
| Application: | Food,chemical,pharmaceutical,etc | Capacity: | 3-300 Kg/h |
| Fineness: | 10-120 Mesh | Feed Size: | <10 Mm |
| Material: | SS 304/316 | Voltage: | Customized |
| High Light: | hammer pulverizer machine,spice making machine |
||

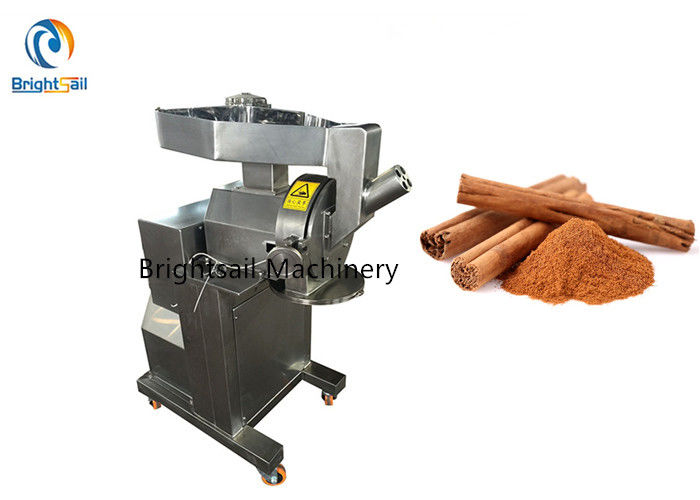

Small dry spice powder making machine masala curry chili hammer pulverizer
Our BS high speed hammer mill is suitable for pharmaceutical, chemical, food and other industries, it is very good powder processing equipment. It is not restricted by the viscosity of the material hardness, softness and fiber etc., and it can have better crushing effect for any material.
Working method:
The machine is composed of three parts: frame, crushing chamber and feeding parts. The main shaft is equipped with a movable cutter head, a fixed ring gear is installed in the crushing chamber, and a screen is installed below the ring gear. When the main shaft is running at high speed, the movable cutter head runs, and the materials impact and friction between the fixed ring gear and the movable hammer Under the combined effects of shear, shear, and impact between materials, crushing is achieved. This machine has simple structure, strong and durable, stable operation, obvious crushing effect and convenient maintenance.
The crushed material can be directly discharged from the crushing cavity of the host, and the particle size can be obtained by replacing the screens with different apertures. (You can also adjust the speed to obtain the fineness of the finished product)
Main features:
1. Wide application and large handling capacity.
2. Simple and compact construction; smooth and steady running.
3. The material grinding process is fast and reliable, grinding fitness is adjustable.
4. The surface of the multifunctional grinding machine is smooth, easy to clean.
Our company:
Brightsail Machinery is professional and engaged in research, development, production,sale and service of grinder machine,mixer,sifting machine,overall powder solution,welding service,welding machine, and metal processing,and chemical powder.
Since its foundation, Brightsail has always adhered with the principle of quality firstly and technology is life. With customer centric idea as base,it takes evey detail seriouly in the process of production to assure high performance and quality of each part and equipment as well as the stable operation in more than 50 nations around the world.
In addition,we have abtained CE,ISO certificates. In 2018, our company obtained prize from Alibaba group as top-100 seller in east China region. Our products have been exported to such contrires and regions as USA,Canada, Germany, Australia,Europe,Africa,South Asia,middle Asia. Our company name “Brightsail” is also our hope to all of our customers and parters around the world, we hope will grow together and set a sail to bright.
Technical data:
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size(mm) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
| Grind fineness(mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/h) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter(mm) | 200 | 270 | 330 | 380 |
| Rotor speed(rpm) | 5900/8600 | 4200/6200 | 2600/5100 | 2200/4400 |
| Motor(kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size(L*W*H)(mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
