Product Details:
|
| Product Name: | Grain Powder Mill Grinder Milling Making Machine Air Classifier Mill | Material: | SS 304/316 |
|---|---|---|---|
| Capacity: | 20-1800 Kg/h | Input Size: | <15 Mm |
| Fineness: | 60-2500 Mesh | Crusher Motor: | 11-75 Kw |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | spice making machine,grain grinder machine |
||

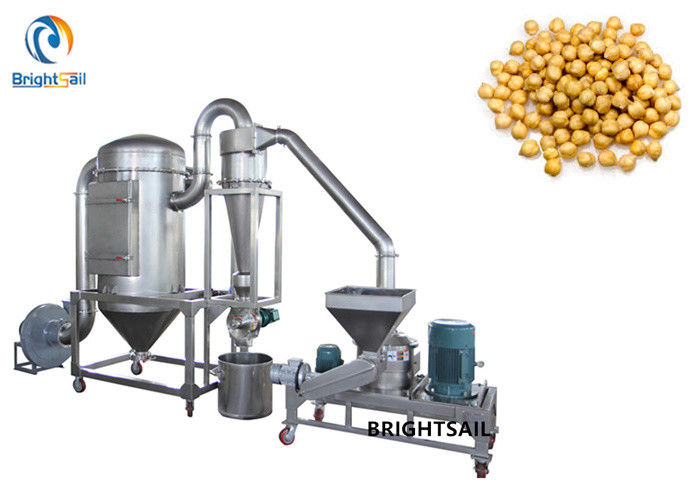

Chickpea powder making machine mung bean superfine grain flour grinding machine
BSP ultra-fine pulverizer is a kind of advanced powder machinery combined with the actual situation in our country. The unit has the advantages of stable performance, low noise power saving, high production efficiency, attractive appearance and covers less occupied area, etc. Compared with domestic models, the granularity of its products is adjustable arbitrarily and low temperature when it smashes. Therefore, it, particularly, is suitable for the heat-sensitive materials such as sugar, plastic powder and Chinese herbal medicine. It is the ideal equipments of pharmacy, chemistry, food feedstuff.
Working method:
Material is cut and crushed by high-speed rotating blade through screw conveyor. Material is transported into cyclone separator by negative pressure air transportation, and material is discharged. Dust is filtered and recovered by vacuum box through bag or filter barrel. No dust is flying in the production process.
Main features:
1. Wide application and large handling capacity.
2. Simple and compact construction; smooth and steady running.
3. The material grinding process is fast and reliable, grinding fitness is adjustable.
4. The surface of the multifunctional grinding machine is smooth, easy to clean.
Our service:
Pre-sale services:
Based on the clients' request and budget, we will offer project of equipment pictures, working site videos, plant processing diagram, assemble drawings, foundation drawings, and plant layout. Clients are welcome to visit our factory.
After-sale services:
Normally, the equipment warranty is 12 months since installation. To establish long term cooperation, we will regularly call and
email our clients to check the equipment working condition and offer suggestions for maintenance.
Why choose us:
1) Professional advice to help you solve problem.
2) Test running before shipment. Installation video, user guide of equipment and electric cabinet.
3) Our engineers have rich installation experience abroad. Also provide field commissioning, training workers.
4) Free hotel during visiting our factory.
5) One-Stop powder solution, effectively reduce the labor cost.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
