Product Details:
|
| Product Name: | Ginger Crusher Machine | Application: | Herb,rice,leaf,spice,tumeric,ginger |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 100-1800kg/Hr |
| Input Size: | <15mm | Fineness: | 60-2500 Mesh |
| Voltage: | Customized | Other Name: | Ginger Cutting Machine |
| High Light: | 1800kg/hr ginger crusher machine,100kg/hr ginger crusher machine,15mm Ginger Crusher Machine |
||
Capacity 80-1500kg/Hr ginger crusher machine

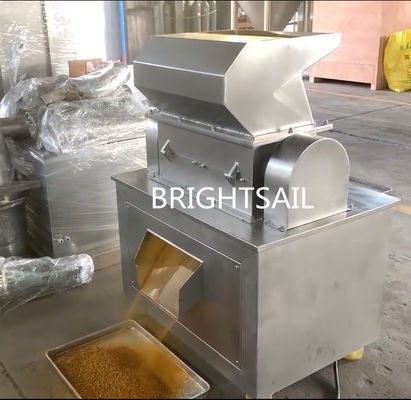

1.BSC Series Coarse Crusher (can make 0.5 to 20 mm granule)
The BSC ginger crusher is the primary crushing stage of the main powder equipment. Its
main function is to crush large and hard materials into small particles to provide suitable
feed materials for subsequent powder equipment.
Technical data:
| Model |
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
|
Capacity(kg/h)
|
80-300 | 100-800 | 200-1000 | 500-1500 |
|
Size of input granules (mm)
|
<100 | <100 | <100 | <100 |
|
Crushing Fineness(mm)
|
0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
|
Speed of principal axis(rpm)
|
960
|
960 | 960 | 960 |
|
Motor power(KW)
|
3 | 5.5 | 7.5 | 11 |
|
Overall Size(L*W*H) (mm)(Type B)
|
900*600*1140 | 900*700*1440 | 900*800*1440 | 1000*900*1440 |
|
Weight(Kg)
|
200 | 300 | 380 | 500 |

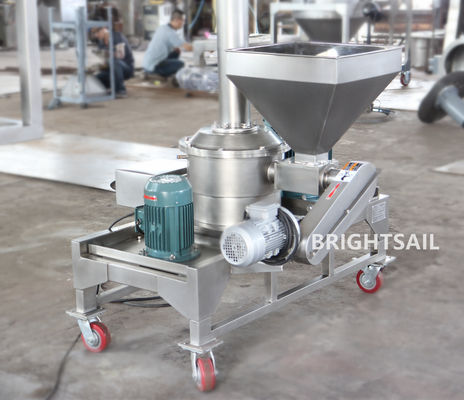

2.BSP ultra-fine pulverizer set (can make 40 to 320 mesh powder)
After being coarsely crushed by BCU, ginger becomes small particles, and can be further crushed
into a finer powder on the BSP ultra-fine powder grinder. BSP is especially suitable for large-scale
condiment production plants, flour mills, etc.
turmeric grinding machine cinnamon processing machineturmeric grinding machine cinnamon processing machine
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Application:
spices,chilli,herbal,turmeric,ginger,coco beans,chickpea,rosehip...etc.
