Product Details:
|
| Product Name: | Ginger Crusher Machine | Application: | Herb,rice,leaf,spice,tumeric,ginger |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 100-1800kg/Hr |
| Input Size: | <15mm | Fineness: | 60-2500 Mesh |
| Voltage: | Customized | Other Name: | Ginger Powder Processing Machine |
| High Light: | 100kg/h ginger powder processing machine,capacity 100kg/h ginger powder machine,SS Ginger Powder Processing Machine |
||
Capacity 80-1500kg/Hr ginger powder processing machine
1.BS series hammer mill grinding unit (can make 12 to 120 mesh powder)
Suitable for crushing herb and other spices, small output, crushing fineness between 12-120 mesh.
BS hammer mill unit To change powder size, just change different sieves in mill chamber.
Technical data:
| Model | BS-400 | BS-630 | BS-880 | BS-1000 |
| Capacity(kg/h) | 80-1200 | 400-1800 | 800-2500 | 1000-3000 |
| Fineness(mesh) | 12-120 | 12-120 | 12-120 | 12-120 |
| Main crush motor(kw) | 22 | 37 | 45 | 55 |
| Overall size(L*W*H)(mm) | 5400*1300*2700 | 6800*1300*2700 | 7800*1800*3200 |
8800*2000*3300 |

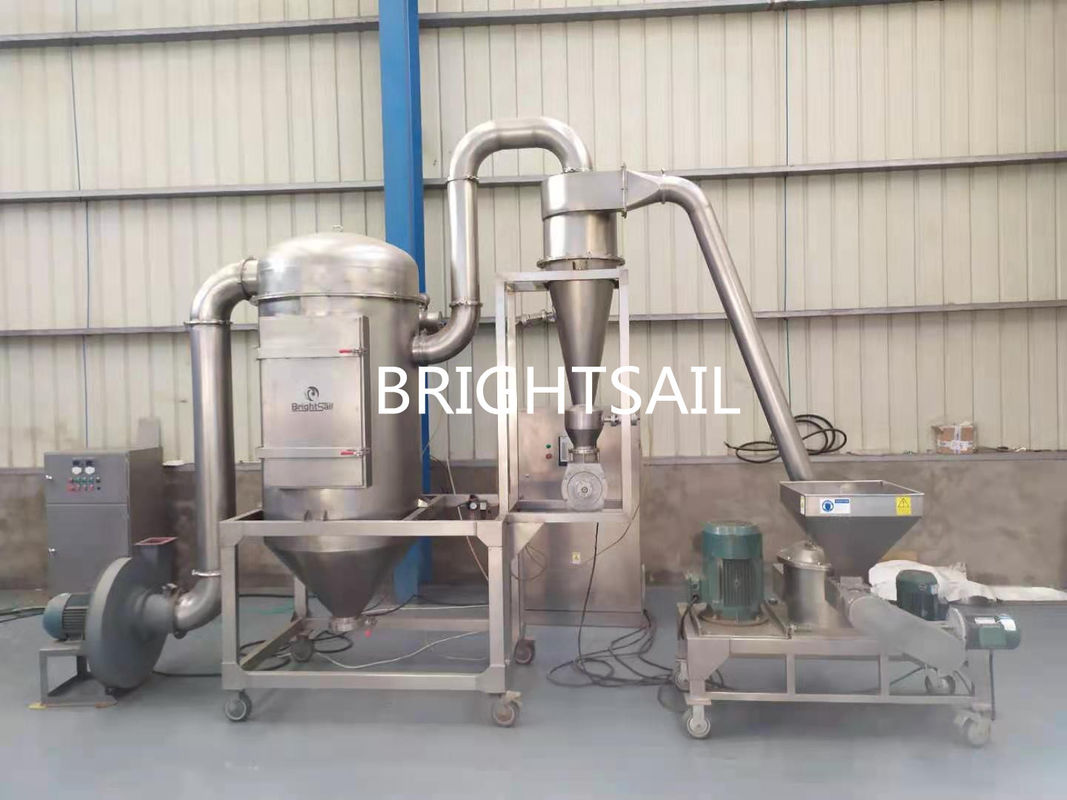

2.BSP ultra-fine pulverizer set (can make 40 to 2500 mesh powder)
The BSP superfine pulverizer is suitable for pulverizing some raw materials with low oil content, such as herbs,
leaves, ginger, sugar, etc..Its advantages are high productivity, high speed, high crushing fineness and precision
turmeric grinding machine cinnamon processing machineturmeric grinding machine cinnamon processing machine
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |

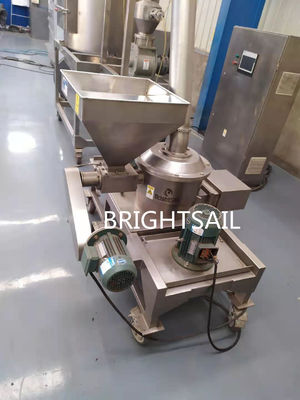

3.BS small hammer mill (can make 12 to 120 mesh powder )
Suitable for small production of herb and other spices,Except for herbs and leaf, it also can be used to grind
spices, dry leaf, chickpeas, sugar and many other materials.
It is more suitable for low production capacity requirements. Its advantage is that it takes up small space and
is convenient.
Main picture:
Technical data:
| Model | BS-180 | BS-250 | BS-300 |
| Input size (mm) | < 10 (granule) < 15*40*2 (leaf) | ||
| Output size (mesh) | 10-120 | ||
| Capacity(kg/hr) | 3-50 | 10-100 | 20-200 |
| Rotating speed (rpm) | 5900/8600 | 4200/6200 | 2600/5100 |
| Power (kw) | 2.2 | 5.5 | 7.5 |
| Overall size (mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 |
| Weight(kg) | 112 | 210 | 296 |
Application:
spices,chilli,herbal,turmeric,ginger,coco beans,chickpea,rosehip...etc.
