Product Details:
|
| Total Volume (L): | 50-600 | Product Name: | Rapid Mixer Granulator |
|---|---|---|---|
| Over Size: | Customized | Cutting Knife Speed(R.P.M): | 50-3000 |
| Other Name: | Medical Wet Mixing Granulator | Stirrer Speed (R.P.M): | 20-500 |
| High Light: | 2 Minutes Mixing Rapid Mixer Granulator,100L Rapid Mixer Granulator |
||
Mixing About 2 Minutes And Granulating About 7 To 14 Minutes Per Batch Rapid Mixer Granulator
Product Application Of rapid mixer granulator:
BSSF Wet Type Granulator produced by our company is suitable for pharmaceutical, chemical, food and other industries. Specific performance: powder and powder mixing, powder granulation, adhesion.
Working Method Of rapid mixer granulator:
Technical Data Of rapid mixer granulator:
| Model | BSSF-50 | BSSF-100 | BSSF-200 | BSSF-300 | BSSF-400 | BSSF-600 |
| Total volume (L) | 50 | 100 | 200 | 300 | 400 | 600 |
| Working volume (L) | 12-36 | 25-70 | 50-150 | 60-220 | 100-280 | 150-400 |
|
Feeding quantity (kg) The specific gravity of the powder is 0.5g/cm³ |
6-18
|
12-35 | 25-75 | 30-110 | 50-140 | 75-200 |
| Stirrer speed (R.P.M) | 50-500 | 30-360 | 30-260 | 20-200 | 20-200 | 20-200 |
| Mixing power (KW) | 5.5 | 7.5 | 15 | 22 | 22 | 30 |
| Cutting knife speed(R.P.M) | 50-3000 | |||||
| Cutting power (KW) | 1.5 | 3 | 4 | 7.5 | 7.5 | 11 |
Features Of rapid mixer granulator:
1. The adoption of consistent programming technology (man-machine interface is used when selecting options) ensures the stability of machine quality, facilitates manual operation, and makes process parameters and process flow more convenient.
2. The mixing blades and cutting tools are controlled by frequency conversion, and the particle size can be easily controlled.
3. The inner seal box of the rotating shaft is filled with air to prevent the accumulation of dust.
4. Adopt cone-shaped hopper groove structure, the material can rotate evenly. An intermediate layer is arranged at the bottom of the tank body, and a water cooling circulation system is arranged in the Middle Layer, which has higher constant temperature performance than the Air Cooling System and improves the particle quality.
5. Equipped with automatic lifter cover, water tank outlet supporting drying device, self-provided handrails, easy to operate.
6. The outlet is circular to avoid dead angle.

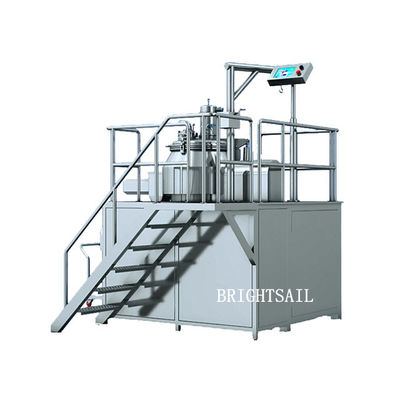

Appearance Of rapid mixer granulator:
Detailed Images Of rapid mixer granulator:
