Product Details:
|
| Product Name: | Vibrating Screen | Other Name: | Vibrating Sieve |
|---|---|---|---|
| Power（kw）: | 2*0.55~2*0.75 | Function: | Sifting |
| Effective Area(㎡): | 1-1.5 | Number Of Plies: | 1-6 |
| Capacity（kg/h): | Depending On The Size Of The Screen | Warranty: | 1year |
| High Light: | fully enclosed structure Powder Sifter Machine,1.1kw vibrating sieve machine,fully enclosed vibrating sieve machine |
||
Fully Enclosed Structure Without Dust Spillage 1 To 1.5㎡ Effective Area Vibrating Screen
Linear vibrating screen is also defined as vibrating separator. The self synchronous or force synchronous vibration theory is used to realize the fast and accurate separation of the selected materials. Widely used in plastic, abrasive, medicine, building materials, food, chemical and other large amounts of fine material separation.

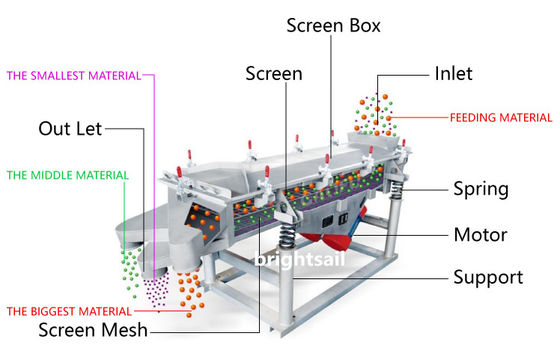

Working Principle: vibrating screen
BSS series vibrating machines uses electric vibration exciter as vibration source, which makes the material be thrown up on the screen and move forward in a straight line. Material from the feeder evenly into the screen machine feed mouth, through the multi-layer screen to produce a number of products and unqualified screen up, screen down from their respective export discharge. It can be used to realize automatic operation in assembly line. The utility model has the advantages of low energy consumption, high efficiency, simple structure, easy maintenance and complete closed structure without dust overflow.
Technical Data:vibrating screen
| Model | BSS520-1 | BSS525-1 | BSS530-1 |
| Size(mm) | 500*2000 | 500*2500 | 500*3000 |
| Power(kw) | 2*0.55 | 2*0.55 | 2*0.75 |
| Effective Area(㎡) | 1 | 1.25 | 1.5 |
| Number of plies | 1-6 | ||
| Capacity(kg/h) | Depending on the size of the screen | ||
Features:vibrating screen
1. Easy to operate and maintain.
2. Low consumption with high yield and low cost.
3. Fully enclosed structure, automatic layout, more suitable for pipeline operations.
4. Good sealing without dust flying.
5. Can be used for single or multi layer.
Scope Of Application:vibrating screen
Widely used in plastics, abrasives, chemical, pharmaceutical, building materials, food, carbon, chemical fertilizer and other industries on the granular material, powder material screening and classification.
