1 To 1.5m2 Effective Area Vibrating Screen Machine Fully Enclosed Structure

1 To 1.5m2 Effective Area Vibrating Screen Machine Fully Enclosed Structure
1 To 1.5m2 Effective Area Vibrating Screen Machine Fully Enclosed Structure 1 To 1.5m2 Effective Area Vibrating Screen Machine Fully Enclosed Structure 1 To 1.5m2 Effective Area Vibrating Screen Machine Fully Enclosed Structure

Large Image :  1 To 1.5m2 Effective Area Vibrating Screen Machine Fully Enclosed Structure

Product Details:
Place of Origin: China
Brand Name: Brightsail
Certification: CE ISO
Model Number: BSS
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Wooden case or container
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month

1 To 1.5m2 Effective Area Vibrating Screen Machine Fully Enclosed Structure

Description
Product Name: Vibrating Screen Machine Other Name: Vibrating Sieve Machine
Power(kw): 2*0.55~2*0.75 Function: Sifting
Effective Area(㎡): 1-1.5 Number Of Plies: 1-6
Pre-sale Service: Provide After-sale Service: Provide
High Light:

1.5m2 effective area vibrating screen machine

,

1m2 effective area vibrating screen machine

,

fully enclosed structure vibrating screen machine

1 To 1.5㎡ Effective Area Fully Enclosed Structure Without Dust Spillage Vibrating Screen Machine

The vibrating screen motor is also defined as a vibrating separator. The self-synchronization or force synchronization vibration theory is adopted to realize the rapid and accurate separation of the selected materials. It is widely used in the separation of large quantities of fine materials such as plastics, abrasives, medicine, building materials, food, and chemicals.



Working Principle: vibrating screen machine

BSS series vibrating screen uses electric exciter as vibration source to make the material throw upward on the screen and move forward in a straight line. From the feeder, the material evenly enters into the feeding port of the screen machine, and a number of unqualified products are produced through the multi-layer screen, and the screen is discharged from their respective outlets. It can be used to realize automatic operation of pipeline. The patent technology of the utility model has the advantages of low energy consumption, high efficiency, simple structure, convenient maintenance, complete closed structure, etc



Technical Data:vibrating screen machine

Model BSS520-1 BSS525-1 BSS530-1
Size(mm) 500*2000 500*2500 500*3000
Power(kw) 2*0.55 2*0.55 2*0.75
Effective Area(㎡) 1 1.25 1.5
Number of plies 1-6
Capacity(kg/h) Depending on the size of the screen



Features:vibrating screen machine

1. Easy to operate and maintain.

2. Low consumption, high yield, low cost.

3. Fully enclosed structure, automatic arrangement, more suitable for pipeline operation.

4. Good sealing, no dust flying.

5. Can Be used in single or multiple layers.



Scope Of Application:vibrating screen machine

Widely used in plastics, abrasives, chemical, pharmaceutical, building materials, food, carbon, chemical fertilizer and other industries on the granular material, powder material screening and classification.

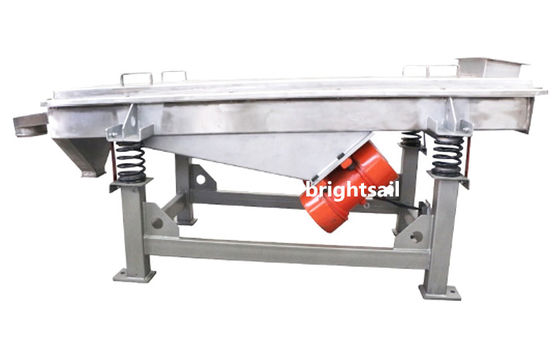

1 To 1.5m2 Effective Area Vibrating Screen Machine Fully Enclosed Structure 0

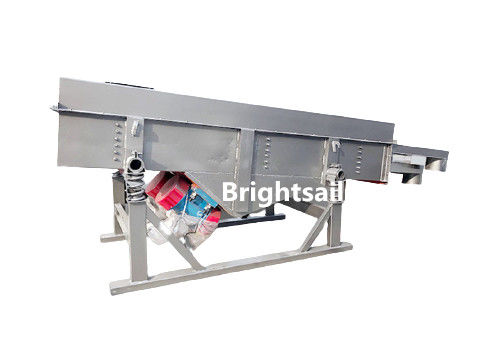

1 To 1.5m2 Effective Area Vibrating Screen Machine Fully Enclosed Structure 1

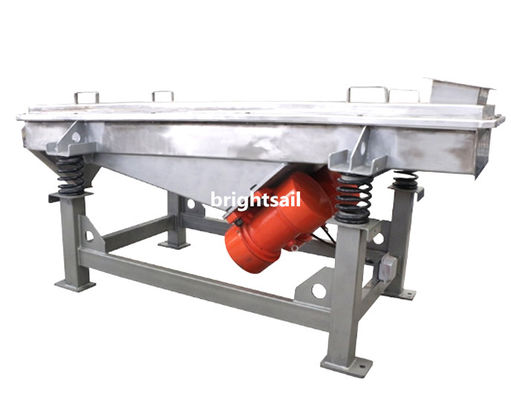

1 To 1.5m2 Effective Area Vibrating Screen Machine Fully Enclosed Structure 2
