100 To 2000 Kg/H Capacity Ultra Fine Powder Grinder For Hemp Fibre Hammer Mill

100 To 2000 Kg/H Capacity Ultra Fine Powder Grinder For Hemp Fibre Hammer Mill
100 To 2000 Kg/H Capacity Ultra Fine Powder Grinder For Hemp Fibre Hammer Mill
100 To 2000 Kg/H Capacity Ultra Fine Powder Grinder For Hemp Fibre Hammer Mill 100 To 2000 Kg/H Capacity Ultra Fine Powder Grinder For Hemp Fibre Hammer Mill 100 To 2000 Kg/H Capacity Ultra Fine Powder Grinder For Hemp Fibre Hammer Mill 100 To 2000 Kg/H Capacity Ultra Fine Powder Grinder For Hemp Fibre Hammer Mill

Large Image :  100 To 2000 Kg/H Capacity Ultra Fine Powder Grinder For Hemp Fibre Hammer Mill

Product Details:
Place of Origin: China
Brand Name: Brightsail
Certification: CE ISO
Model Number: BSDF
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: container
Delivery Time: 30-35 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 15 sets per month

100 To 2000 Kg/H Capacity Ultra Fine Powder Grinder For Hemp Fibre Hammer Mill

Description
Advantage: Large Output Capacity Capacity: 100-2000 Kg/h
Fineness: 10-120 Mesh Motor: 22-75kw
Discharge Motor: 0.75-1.5kw Product Name: Hemp Fibre Hammer Mill
Other Name: Hammer Mill Hemp
High Light:

100kg/h ultra fine powder grinder

,

2000kg/h ultra fine powder grinder

,

hemp fibre grinder for powder

10 To 120 Mesh Powder Fineness 100 To 2000 Kg Per Hr Capacity Hemp Fibre Hammer Mill

Product Introduction:hemp fibre hammer mill

BSDF advanced hammer mill is the most advanced hammer mill equipment of our company. It grinds well with spices such as Chili, turmeric and coriander seeds, as well as with other ingredients such as chickpeas, tapioca, feed and herbs.



Technical data:hemp fibre hammer mill

Model BSDF-350 BSDF-450 BSDF-550 BSDF-650 BSDF-750
Capacity(kg/h) 100-200 300-500 400-800 600-900 800-1300
Fineness(mesh) 20-120 20-120 20-120 20-120 20-120
Grind motor(kw) 22 37 45 55 75
Discharge motor(kw) 0.75 0.75 0.75 1.1 1.5
Blower(kw) 7.5 15 15 18.5 18.5
Rotor speed(rpm) 3500-4500 3300-4200 2900-3600 2400-3100 2100-2700



Working method:hemp fibre hammer mill

The materials to be crushed are fed through the feeding hole installed at the top, and then sucked into the coarse crushing area through the negative pressure of the fan for coarse crushing. Coarse particles are transported to the second crushing area for the second grinding. After secondary crushing, coarse and fine particles are separated by the grading wheel. Then the particles meeting the fine grinding conditions are crushed in the fine grinding area. Large particles that cannot be finely ground remain in the secondary crushing area for re crushing. In the fine crushing area, the crushed powder is discharged from the crushing chamber under the impeller of the blower through the negative pressure of the blower and enters the cyclone separator. The fine powder is discharged through the electric rotary valve at the bottom of the separator. Dusty gas enters the dust collection box. Finally, the dust is collected by the cloth bag in the dust collection box, and the clean gas is discharged from the fan outlet.



Main features:hemp fibre hammer mill

(1) BSDF has three sets of knives in the grinding chamber: coarse grinding, medium-fine grinding and fine grinding, and ordinary hammer grinding has only one set of knives.
(2) BSDF can directly crush large materials. Ordinary hammer mills cannot.
(3) BSDF does not need to set a screen or a screen in the grinding cavity, and the powder particle size can be changed through the speed control of the frequency converter. There are ordinary hammer mills.
(4) The temperature of the grinding chamber of BSDF will not rise or only rise a little, and the powder quality is not affected by heat. The chamber temperature of an ordinary hammer mill is much higher.
(5) Under the same power consumption, the capacity of BSDF is much larger than normal hammer mill.

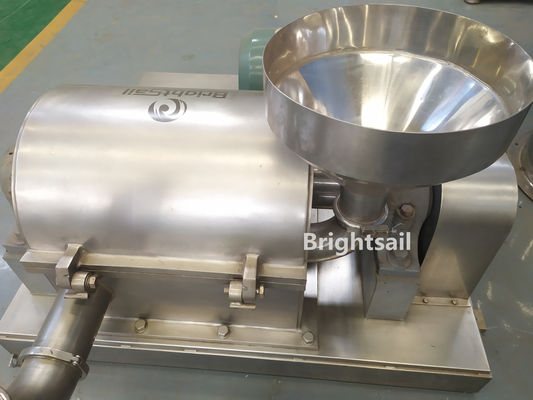

100 To 2000 Kg/H Capacity Ultra Fine Powder Grinder For Hemp Fibre Hammer Mill 0



Crushing part:hemp fibre hammer mill

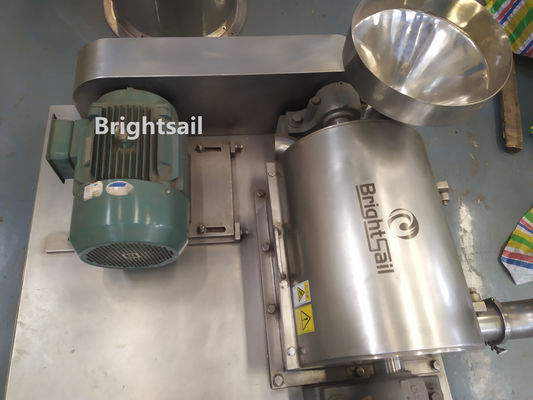

100 To 2000 Kg/H Capacity Ultra Fine Powder Grinder For Hemp Fibre Hammer Mill 1
