Product Details:
|
| Product Name: | Glycyrrhiza Mill | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Capacity: | 3-300 Kg/h | Fineness: | 10-120 Mesh |
| Feed Size: | <10 Mm | Other Name: | Glycyrrhiza Flour Pulverizer |
| Advantage: | Long Service Life | ||
| High Light: | 10 mesh powder making machine,120 mesh powder making machine,3kg/h powder making machine |
||
10 To 120 Grinding Fineness 3 To 300kg Per Hr Capacity glycyrrhiza mill

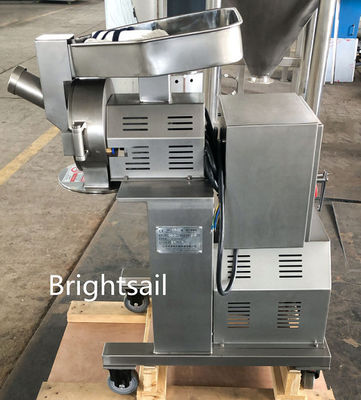

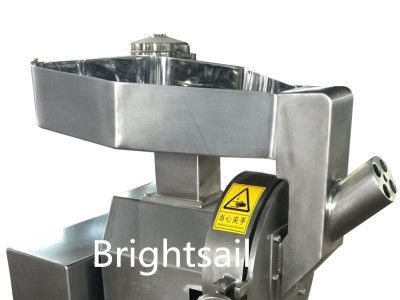

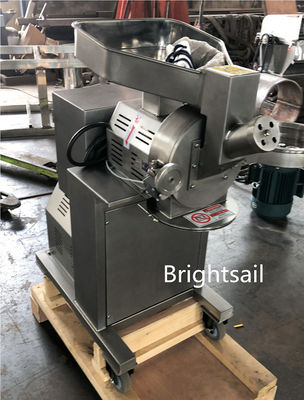

Product introduction:glycyrrhiza mill
My company BS high-speed hammer crusher is suitable for pharmaceutical, chemical, food and other industries. Is a very good powder processing equipment. It can have good crushing effect on any material without being limited by the hardness, softness and fiber viscosity of the material.
Technical data:glycyrrhiza millRadix liquiritiae mill grinding
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size(mm) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
| Grind fineness(mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/h) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter(mm) | 200 | 270 | 330 | 380 |
| Rotor speed(rpm) | 5900/8600 | 4200/6200 | 2600/5100 | 2200/4400 |
| Motor(kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size(L*W*H)(mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
Working method:glycyrrhiza millRadix liquiritiae mill grinding
This machine by the rack, the crushing cavity and is composed for the material department.Installs the active tool bit on the main axle, in the stave cavity installs the set collar tooth, surrounds underneath the tooth to install the strainer.When main axle high-speed operation, moves the tool bit revolution, the material receives the set collar tooth and moves the hammer the impact and the friction.In cutting, cutting, attacks under three together functions, the realization is stave.This machine structure is simple, firm durable, the movement is stable, the stave effect is obvious, the service is convenient.After the smashing material may discharge directly from the main engine crushing cavity, may obtain the granularity through the change different aperture strainer.(The speed also may adjust, obtains the end product degree of fineness)
Main features:glycyrrhiza millRadix liquiritiae mill grinding
1. Wide Range of application, large processing capacity.
2. A compact structure; a stable operation.
3. The material lapping process is fast and reliable, and the lapping degree is adjustable.
4. The surface of multi-function grinder is clean and easy to clean.
Crushing Effect:glycyrrhiza millRadix liquiritiae mill grinding
