Product Details:
|
| Product Name: | Whey Protein Flour Ribbon Blender | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS304/316 | Volume: | 50-5000L |
| Warranty: | One Year | Cylinder Speed(rpm): | 7-15 |
| Other Name: | Whey Protein Powder Mixer Machine | Another Name: | Whey Protein Powder Blending Machine |
| High Light: | forced agitating blender mixer machine,50l industrial blender machine,blender mixer machine 5000l |
||
50 To 5000L Volume Forced Agitating Mixer Whey Protein Flour Ribbon Blender
BSV powder mixer is suitable for the mixing of dry powder and granular materials with good fluidity in the pharmaceutical, chemical, food and other industries. The mixing drum of this machine has a special structure, high efficiency and no dead ends. The material is stainless steel and the wall is polished. Beautiful appearance, even mixing. The mixer can be configured according to customer requirements, which is suitable for the mixing of fine powder materials.
Technical data:whey protein flour ribbon blender
| Model | BSV-100 | BSV-200 | BSV-300 | BSV-500 | BSV-1000 | BSV-1500 | BSV-2000 | BSV-2500 | BSV-300 | BSV-4000 |
| Total volume(m³) | 0.1 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 |
| Mixing time(min) | 4-8 | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Cylinder speed(rpm) | 15 | 15 | 12 | 12 | 12 | 10 | 10 | 8 | 8 | 7 |
| Main motor power(kw) | 1.1 | 1.1 | 1.1 | 2 | 4 | 5.5 | 7.5 | 7.5 | 7.5 | 11 |
| Agitator power(kw) | 0.75 | 0.75 | 0.75 | 1.5 | 2.2 | 2.2 | 3 | 3 | 4 | 5.5 |
| Weight(kg) | 230 | 290 | 400 | 550 | 850 | 1020 | 2040 | 2200 | 2500 | 2800 |
Working method:whey protein flour ribbon blender

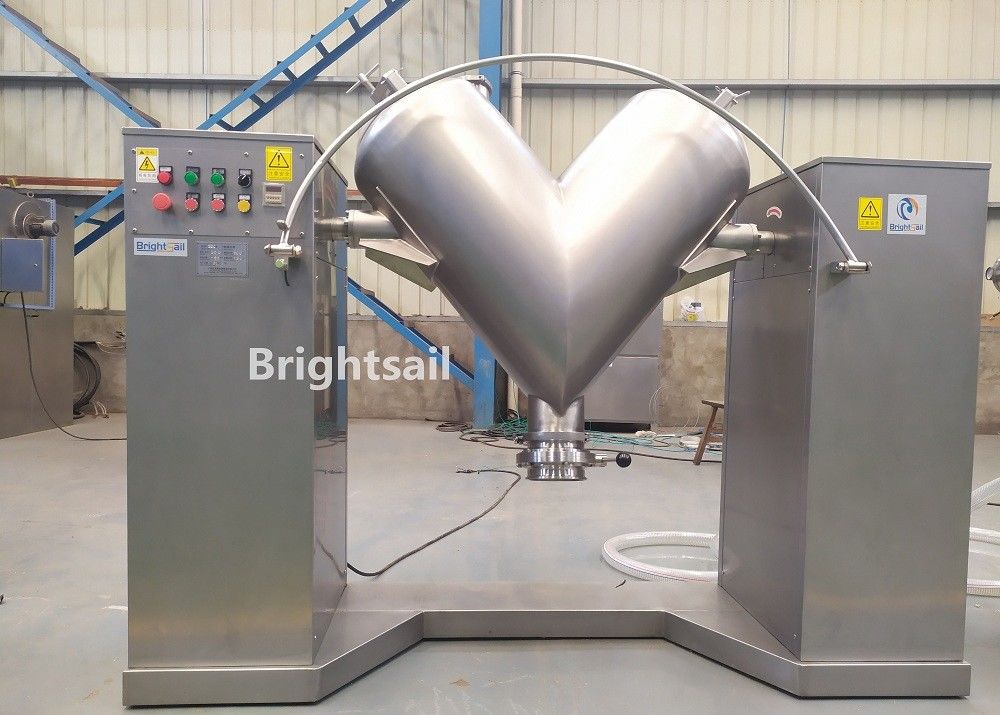

The V-type mixer is composed of two V-shaped shells with different heights or the same height. Through mechanical transmission, the materials in the shell move back and forth, cross and rotate 360 degrees, and finally realize uniform mixing.
Main features:whey protein flour ribbon blender
1. The machine has a unique structure. High mixing efficiency, No dead angle.
2. It's made of stainless steel. The inner and outer walls are polished. It has a beautiful appearance.
3. It's mixed evenly. It has a wide range of applications.
4. Can also be based on customer requirements configuration of the mandatory agitator to meet the requirements of raw materials containing considerable fine powder. Cake and something moist.

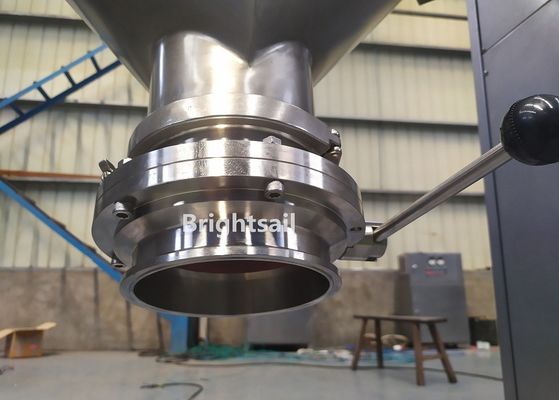

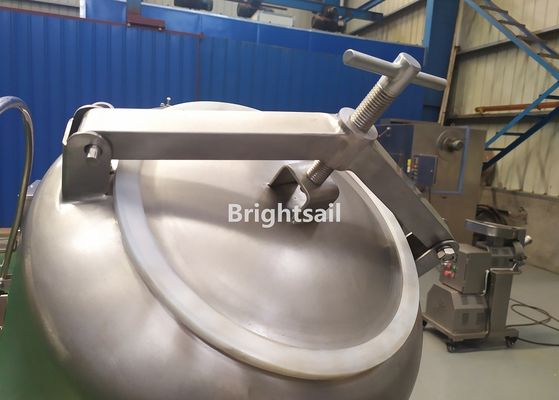

Detailed Image:whey protein flour ribbon blender
