Product Details:
|
| Product Name: | Hammer Mill Crusher | Warranty: | 1 Year |
|---|---|---|---|
| Application: | Spices,herbs,dried Leaves... | Capacity: | 3-300kg/h |
| Fineness: | 10-120 Mesh | Feed Size: | <10mm |
| Other Name: | Small Hammer Mill | ||
| High Light: | 120 mesh fineness hammer mill crusher,300kg/h hammer mill crusher,10 mesh fineness crusher hammer mill |
||
10 To 120 Mesh Fineness With High Rotary Grinding Speed Hammer Mill Crusher
BS high-speed hammer mill is suitable for pharmaceutical, chemical, food, medicine and other industries. It is a very good powder processing equipment. Not limited by material hardness, softness, fiber viscosity, etc., it can have a good crushing effect on any material.
Working method:

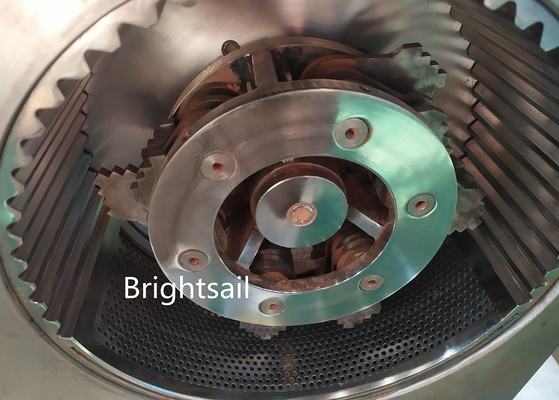

The machine is composed of frame, crushing chamber and feeding part. A movable cutter head is arranged on the main shaft, and a fixed ring tooth is arranged in the crushing cavity, and a screen Mesh is arranged under the ring tooth. When the spindle is running at high speed, the material is impacted and rubbed by the fixed ring teeth and the movable hammer. The material is broken under the combined action of shearing, shearing and impact. The machine structure is simple, durable, stable operation, crushing effect is obvious, convenient maintenance. The crushed material can be discharged directly from the crushing chamber of the main machine, and the particle size can be obtained by changing the screen Mesh with different pore sizes. (You can also adjust the speed to get the fineness of the finished product)
Main features:
1. The application scope is wide, the processing capacity is big.
2. Simple and compact structure; smooth operation.
3. The material lapping technology is fast and reliable, and the lapping degree is adjustable.
4. The surface of multi-function grinder is smooth and easy to clean.
Why Choose Us:
Technical Data:
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size(mm) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
| Grind fineness(mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/h) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter(mm) | 200 | 270 | 330 | 380 |
| Rotor speed(rpm) | 5900/8600 | 4200/6200 | 2600/5100 | 2200/4400 |
| Motor(kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size(L*W*H)(mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
