Product Details:
|
| Product Name: | Z Arm Mixer | Applicable Material: | Powder Or Paste Type Materials |
|---|---|---|---|
| Material: | SS304/316 | Volume: | 50-1000L |
| Warranty: | One Year | Mixing Speed: | 24 Rpm |
| Power: | 1.5-15kw | Voltage: | Customized |
| Other Name: | Through Shaped Mixer | ||
| High Light: | 1000l z arm mixer,customized paste material z arm mixer,50l powder mixer machine |
||

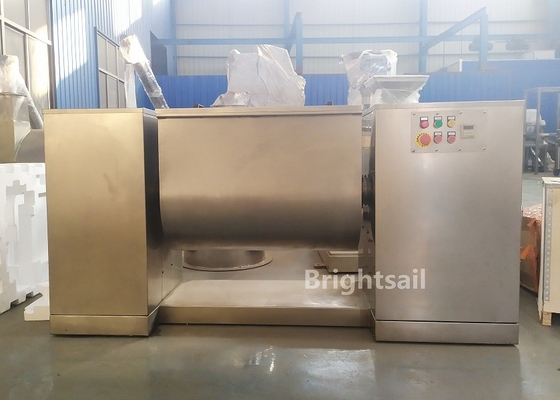

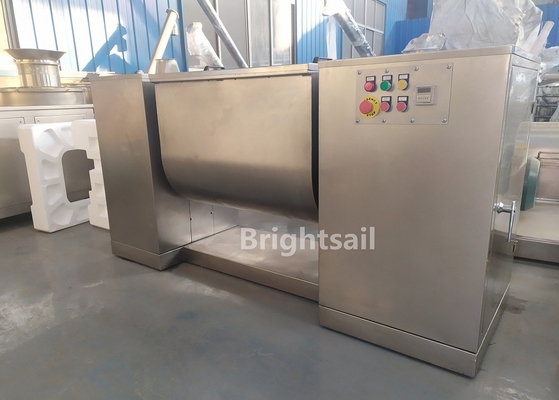

Customized 50 To 1000L Volume Suitable For Mixing Powder Or Paste Material Z Arm Mixer

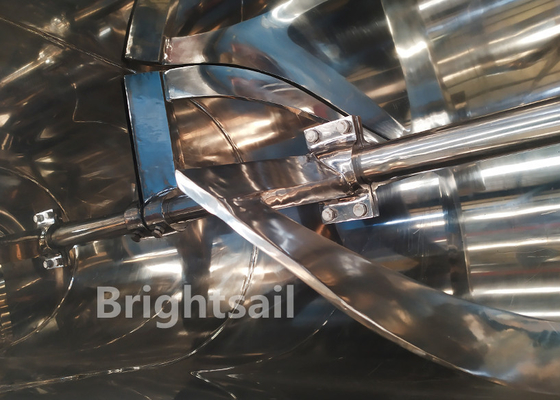

BST series Z arm mixer is suitable for uniform mixing of powdery or paste target materials. Driven by the mixer mechanism, the Z-shaped blade rotates the target material back and forth to make it mix evenly.
Suitable for mixing powder or paste materials. It is a horizontal straight through mixer with single arm or double arm mixing arm.
The mixing arm is removable for easy cleaning. The surfaces of parts in contact with the mixture are made of stainless steel, which has good corrosion resistance. The mixing tank can automatically turn over the mixture.
Technical data:
| Model | BST-50 | BST-100 | BST-150 | BST-200 | BST-300 | BST-500 | BST-1000 |
| Barrel volume(L) | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| Mixing speed(rpm) | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Mix motor(kw) | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 15 |
| Dumping motor(kw) | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 | 3 |
| Weight(kg) | 320 | 350 | 410 | 450 | 520 | 800 | 1400 |
Working method:
The material (usually powder and liquid) enters the mixing tank by gravity. The rotating single or double z-shaped blades stir the mixture completely to achieve even mixing. After mixing, tilt the mixing container to discharge the material.
Main features:
1. High activity: reverse rotation, throwing to different angles, short mixing time
2. High uniformity: compact structure, rotating shaft loading hopper, mixing uniformity up to 99%
3. Low residue: the clearance between shaft and wall is only 2-5mm, and the discharge hole is open
4. Zero leakage: patented design to ensure no leakage of rotating shaft and discharge hole
5. Full cleaning: the mixing hopper is fully welded and polished without screws, nuts and other fasteners.
6. Beautiful appearance: the whole machine is made of 100% stainless steel, with beautiful and generous appearance, except the bearing seat.
