Product Details:
|
| Product Name: | Cinnamon Hammer Mill | Warranty: | 1 Year |
|---|---|---|---|
| Application: | Food Industry | Capacity: | 3-300kg/h |
| Fineness: | 10-120 Mesh | Feed Size: | <10mm |
| Other Name: | Cinnamon Grinding Machine | ||
| High Light: | industrial large capacity cinnamon grinding machine,10 mesh cinnamon grinding machine,120 mesh cinnamon mill grinder |
||
Industrial 300 Kg Per Hr Capacity 10 To 120 Mesh Powder Fineness Cinnamon Hammer Mill
If you want to send inquriy to me about our machine,could you please tell me?
1.What material do you need to grind?
2.What capacity you expect?
3.What voltage you want?For example ,380V 50hz 3p......
4.What material of the equipment you want?usually wo adopt stainless steel 304.
You can also choose:A.all carbon steel
B.contact part SS304,other parts carbon steel
C.all SS 316
D.contact part SS316 parts SS304
5.Do you need other equipments around the grinder?
How can I buy this grinding machine?
First, discuss the details and prices of all the machines with our sales staff.
Second, confirm the price and payment method. Trade guarantee/TT/escrow/Western Union remittance, etc. .
Please send us the order, confirm the Proforma Invoice and arrange the deposit. As soon as we receive the deposit, we will arrange production. Finally, please arrange the balance to us when the machine is ready. We will arrange the shipping for you after receiving the balance.
Technical Data:
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size(mm) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
| Grind fineness(mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/h) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter(mm) | 200 | 270 | 330 | 380 |
| Rotor speed(rpm) | 5900/8600 | 4200/6200 | 2600/5100 | 2200/4400 |
| Motor(kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size(L*W*H)(mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |

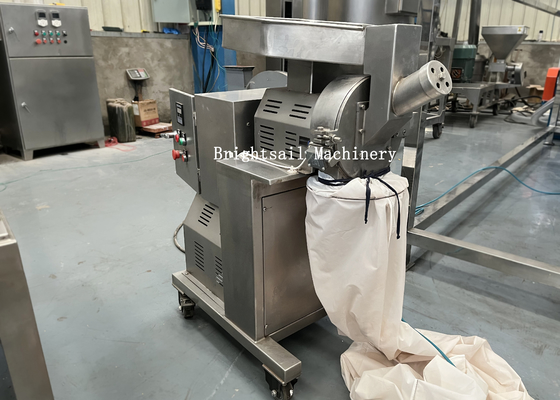

Introduction:
This is our BS series small hammer mill, with high-speed rotation speed. Can Be widely used in pharmaceutical, chemical, food and other industries. For Spice Grinding, a good grinding effect, most of the spice powder up to 30 ~ 40 Mesh. In addition to spices, it can be used to grind dry leaves, chickpeas, sugar and many other ingredients.
Working method:
The machine is composed of frame, crushing chamber and feeding part. A movable cutter head is arranged on the main shaft, and a fixed ring tooth is arranged in the crushing cavity, and a screen Mesh is arranged under the ring tooth. When the spindle is running at high speed, the material is impacted and rubbed by the fixed ring teeth and the movable hammer. The material is broken under the combined action of shearing, shearing and impact. The machine structure is simple, durable, stable operation, crushing effect is obvious, convenient maintenance. The crushed material can be discharged directly from the crushing chamber of the main machine, and the particle size can be obtained by changing the screen Mesh with different pore sizes. (You can also adjust the speed to get the fineness of the finished product)
Main features:
1. The application scope is wide, the processing capacity is big.
2. Simple and compact structure; smooth operation.
3. The material lapping technology is fast and reliable, and the lapping degree is adjustable.
4. The surface of multi-function grinder is smooth and easy to clean.
