Product Details:
|
| Product Name: | Rotary Lab Use Three Dimensional Mixer Machine 5-200L Powder Mixer Machine | Material: | Stainless Steel |
|---|---|---|---|
| Voltage: | Customized | Application: | Food And Chemical And Pharmaceutical Industry |
| Power: | 0.37-7.5kw | Weight: | 70-2500 Kg |
| Volume: | 5-200L | Usage: | Mixing Use |
| Warranty: | One Year | ||
| High Light: | 200l dry powder blending machine,three dimensional dry powder blending machine,5l dry powder mixing machine |
||

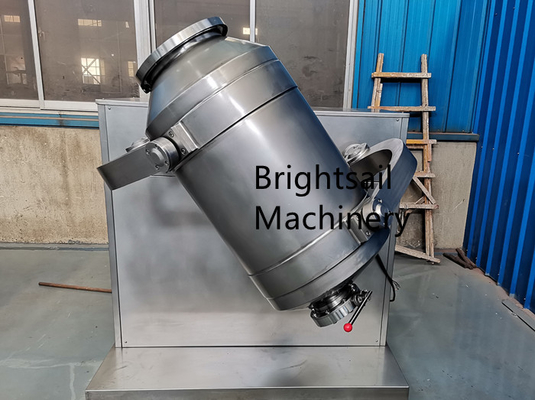

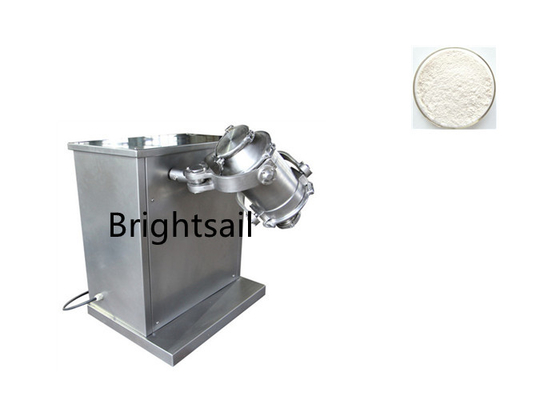

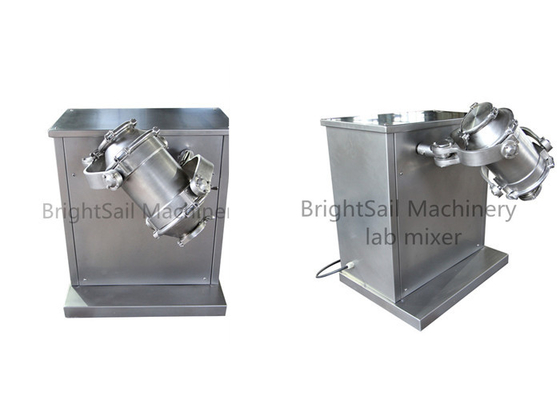

Rotary lab use three dimensional mixer machine 5-200L powder mixer machine
This machine is applicable for mixing powdery and granular materials in pharmaceutical, chemical,foodstuff industry.
Working principle:
This machine is composed of base, shaft, rotary connecting rod and barrel etc. The barrel is driven by the positive shaft to make complex movement including horizontal move, rotation and roiling etc, which makes the material moved to 3 directions along the barrel. Therefore, highly uniform mixing of various material is realized.
Technical data:
| Model | BSTD-5 | BSTD-10 | BSTD-25 | BSTD-50 | BSTD-100 | BSTD-200 | BSTD-400 | BSTD-600 | BSTD-800 | BSTD-1000 |
| Volume of work barrel(L) | 5 | 10 | 25 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 |
| Max loading volume(L) | 3 | 7 | 17 | 35 | 70 | 140 | 280 | 420 | 560 | 700 |
| Spindle speed(rpm) | 0-19 | 0-20 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-11 | 0-10 | 0-10 |
| Motor power(kw) | 0.37 | 0.55 | 0.75 | 1.5 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 |
| Weight(kg) | 70 | 120 | 150 | 300 | 500 | 800 | 1200 | 1500 | 2000 | 2500 |
Main usage:
1. food industry: dry spice powder, milk powder, coffee powder, grain, etc
2. pharmaceutical industry: protein powder, vitamin powder, medicine powder, etc
3. chemical industry:zinc stearate powder, lithium stearate powder, etc
If you want to send inquriy to me about our machine,could you please tell me?
1The raw material you need to mix and the bulk density of it
2.The expected mixing capacity(L/Batch)
3.What voltage your factory use?For example ,380V 50hz 3p......
4.Any special requirement for the machine material? The standard is SS304.
You can also choose:A.all carbon steel
B.contact part SS304,other parts carbon steel
C.all SS 316
D.contact part SS316, other parts SS304
Please contact us if you have interests in our products.
