Product Details:
|
| Usage: | Powder/granule Mixing | Voltage: | Customized |
|---|---|---|---|
| Product Name: | Laboratory Pharmaceutical Chemical Food Granule Powder 3D Mixer | Application: | Food, Pharmacy, Chemical, Etc |
| Material: | SS304/SS316 | Work Volume: | 5-1000L |
| Weight: | 70-2500kg | Power: | Depends |
| Size: | Customized | Type: | BSTD Series |
| High Light: | 3d dry powder mixing machine,three dimensional dry powder mixing machine,3d dry powder blending machine |
||

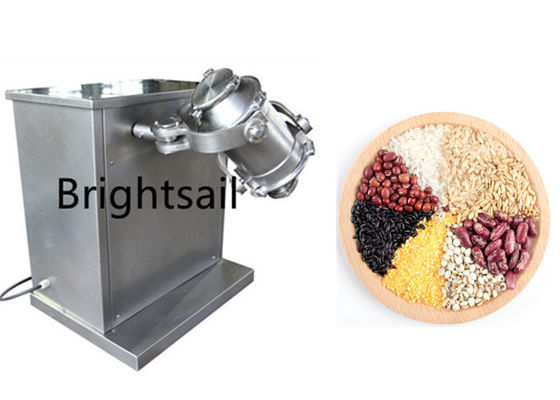

Stainless Steel 3D Three-dimensional Laboratory Mixer Dry Powder Mixing Machine
Product introduction:
This type mixer is combined by base, shaft, rotary connecting rod and barrel etc. It is mainly used to blend the powder and granule materials to achieve high uniformity in the pharmaceutical, chemical, food, and many other industries.
Working principle:
When it works, the mixing machine is provided with three-dimensional movement, and carries out revolution and rotation. The mixing machine has powerful turbulent action to accelerate material flowing and dispersing and makes turning and translational movement to conquer the impact of centrifugal force, so that gravity segregation and agglomeration will not occur in the materials, there is no dead corner, and even mixing is ensured.
Main application:
Pharmaceutical,food,light industry,electronics,mining and metallurgy,national defense industry and the research units of powder,granular material mixed with high uniformity.
Technical data:
| Model | BSTD-5 | BSTD-10 | BSTD-25 | BSTD-50 | BSTD-100 | BSTD-200 | BSTD-400 | BSTD-600 | BSTD-800 | BSTD-1000 |
| Volume of work barrel(L) | 5 | 10 | 25 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 |
| Max loading volume(L) | 3 | 7 | 17 | 35 | 70 | 140 | 280 | 420 | 560 | 700 |
| Spindle speed(rpm) | 0-19 | 0-20 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-11 | 0-10 | 0-10 |
| Motor power(kw) | 0.37 | 0.55 | 0.75 | 1.5 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 |
| Weight(kg) | 70 | 120 | 150 | 300 | 500 | 800 | 1200 | 1500 | 2000 | 2500 |
If you want to send inquriy to me about our machine,could you please tell me?
1The raw material you need to mix and the bulk density of it
2.The expected mixing capacity(L/Batch)
3.What voltage your factory use?For example ,380V 50hz 3p......
4.Any special requirement for the machine material? The standard is SS304.
You can also choose:A.all carbon steel
B.contact part SS304,other parts carbon steel
C.all SS 316
D.contact part SS316, other parts SS304
Please contact us if you have interests in our products.
