Product Details:
|
| Product Name: | Spice Chili Hammer Mill | Finished Product: | Spice Powder |
|---|---|---|---|
| Application: | Foodstuff Industry,chemical,medical | Capacity: | 3-300 Kg/h |
| Fineness: | 10-120 Mesh | Feed Size: | <10 Mm |
| Material: | Stainless Steel 304/316 | After-sales Services: | One Year Warranty; Video Support |
| Other Name: | Chili Grinding Machine | ||
| High Light: | Spice Chili Powder Making Machine,Hammer Mill For Spice Chili,Spice Chili grinding Machine |
||

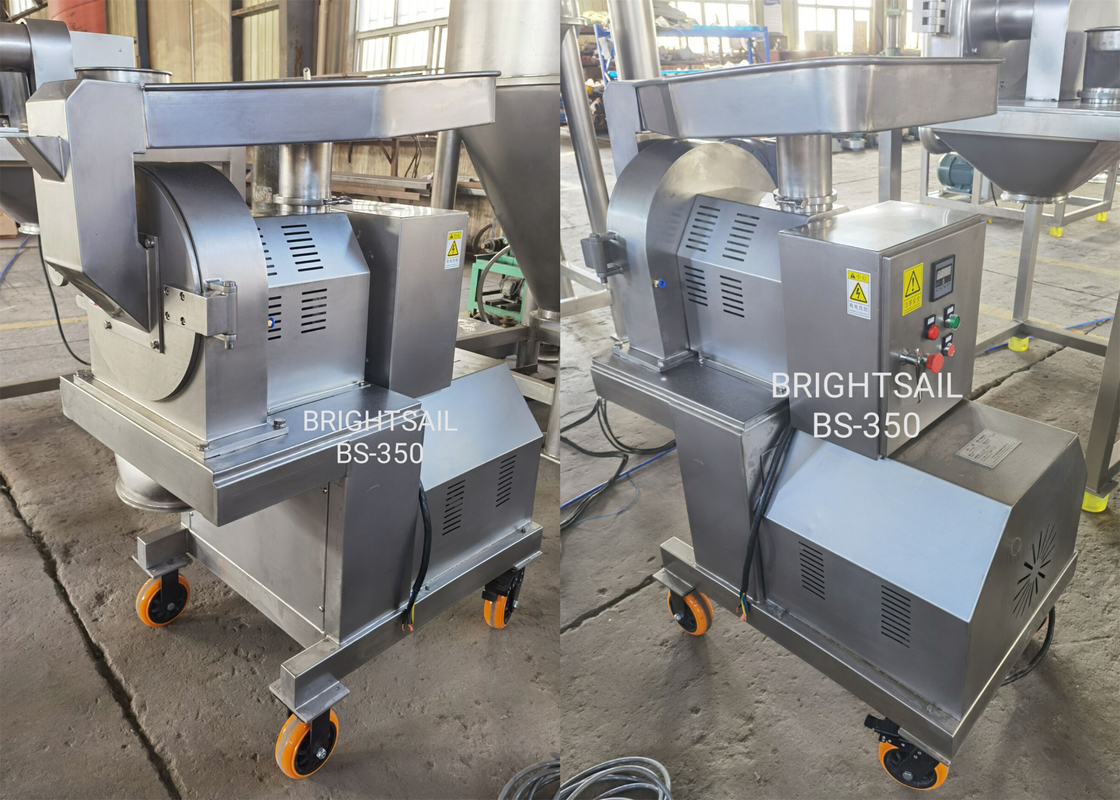

Industrial Customized 10 To 120mesh Powder Making Machine Hammer Mill For Spice Chili
Our Services:
1. Pre-sales service:
Inquiry and consulting support with 24 hours;
Machine sample test service;
Factory visit
2. After-sales service:
Instructing how to install and use the machine;
one year warranty;
video support;
engineer is available to go to user's factory to help install and train.
Why Choose Us:
Within years, we have exported machine to over 70 countries.
For example, New Zealand, Germany, Poland, Thailand, Pakistan, Qatar, Nigeria and many other countries.
So you do not need to worry about the export procedures because we know all the procedures.
Please contact us if you have interests in our products.
our email: info@brightsail-asia.com
website:www.brsmill.com
Whatsapp: +8615961653782
Technical data:
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size(mm) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
<10mm(granule) <15*40*2(leaf) |
| Grind fineness(mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/h) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter(mm) | 200 | 270 | 330 | 380 |
| Rotor speed(rpm) | 5900/8600 | 4200/6200 | 2600/5100 | 2200/4400 |
| Motor(kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size(L*W*H)(mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
Working Method:

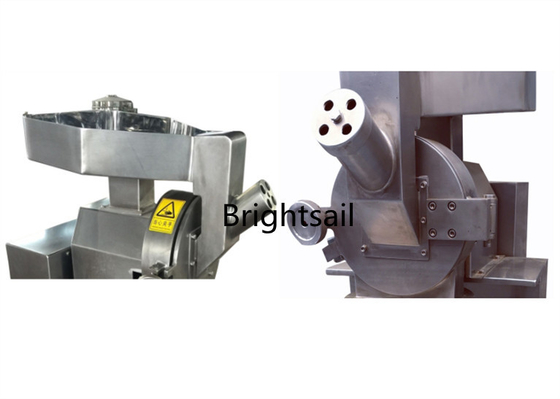

The machine is composed of frame, crushing chamber and feeding part. A movable cutter head is arranged on the main shaft, a fixed ring gear is arranged in the crushing cavity, and a screen is arranged below the ring gear. When the spindle rotates at high speed, the movable cutter head rotates, and the material is impacted and rubbed between the fixed ring gear and the movable hammer. Under the joint action of shear, shear and impact between materials, crushing is realized.
The machine has the advantages of simple structure, durability, stable operation, obvious crushing effect and convenient maintenance. The crushed materials can be discharged directly from the crushing chamber of the host machine, and the particle size can be obtained by changing the screens with different pore sizes. (the speed can also be adjusted to obtain the fineness of the finished product.)
Main features:
crushing parts:
