Product Details:
|
| Product Name: | Spice And Herb Powder Mixing Machine Drum Type Mixer | Type: | W Shape Mixer |
|---|---|---|---|
| Material: | SS304/316 | Volume: | 180-4000L |
| Warranty: | One Year | Mixing Time: | Depends |
| Power: | 1.1-11kw | Voltage: | Customized |
| High Light: | Herb Blender Mixer Machine,SS304 w shape Blender Mixing Machine,W Shape Spice Powder Blender Mixer |
||
spice and herb powder mixing machine drum type mixer
Product description:

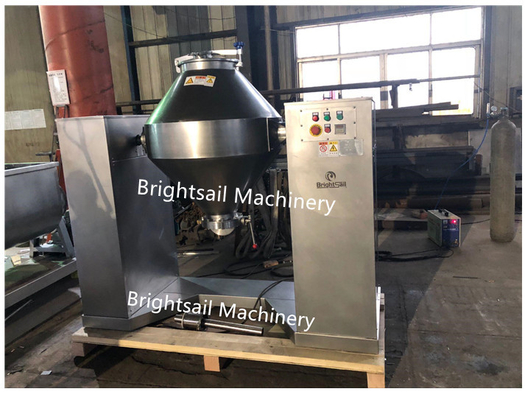

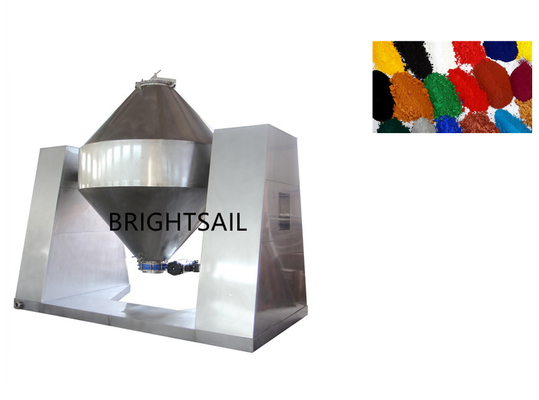

The BSW series double cone mixer has a unique structure design. The mixing container rotates. During this process, the materials in the container move in differerent directions, which makes the materials in the container get mixed with good effect and high mixing uniformity. The maximum load coefficient is 0.6.
Working principle:
The rotation axis of the double cone mixer deviates an angle from the center of the mixing container during mixing. When the container rotates, the material diffuses, flows and moves tangentially. In this way, under the action of frequent and rapid rotation and turning, the mixed materials are mixed with each other, which ensures that the materials can meet the ideal mixing requirements in a short time.
Main features:
3)Discharge through butterfly valve, but pneumatic valve is also optional.
4)It can be loaded manually or connected with a feeder for automatic feeding.
Application:
1. Chemical materials such as plastics, rubber additives, dyes etc.
2. Food materials such as rice, bean, spice, sugar, etc
3. Pharmacy such as protein powder, vitamin powder, etc.
Technical data:
|
Model
|
BSW-180
|
BSW-300
|
BSW-500
|
BSW-1000
|
BSW-1500
|
BSW-2000
|
BSW-2500
|
BSW-3000
|
BSW-4000
|
|
Full volume(m3)
|
0.18
|
0.3
|
0.5
|
1.0
|
1.5
|
2.0
|
2.5
|
3.0
|
4.0
|
|
Mixing time(min)
|
4-8
|
6-10
|
6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
|
Mixing speed(rpm)
|
12
|
12
|
12
|
12
|
12
|
12
|
12
|
7.8
|
7.8
|
|
Power(kw)
|
1.1
|
1.1
|
2.2
|
4
|
4
|
7.5
|
7.5
|
7.5
|
11
|
|
Gross rotation
height(mm)
|
1850
|
1850
|
1950
|
2460
|
2540
|
3650 |
3650
|
3700
|
3730
|
|
Weight(kg)
|
280
|
310
|
550
|
810
|
980
|
2150
|
2150
|
2500
|
3200
|
