Product Details:
|
| Product Name: | Dry Powder Mixing Machine, Mixer Machine | Type: | W Shape Mixer |
|---|---|---|---|
| Material: | SS304/316 | Volume: | 180-4000L |
| Warranty: | One Year | Mixing Time: | Depends |
| Power: | 1.1-11kw | Voltage: | Customized |
| High Light: | Rotary Drum Powder Mixing Machine,W Shape Blender Mixer For Pharmacy,Dry Powder Blender Mixer Machine |
||

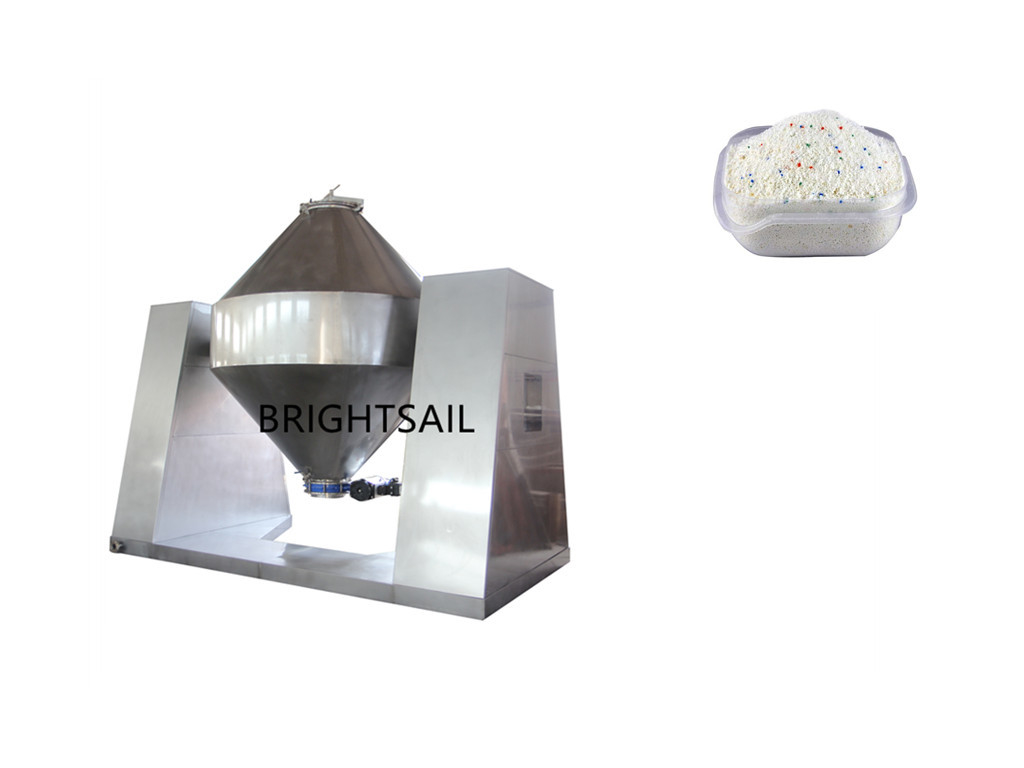

Rotary drum dry powder mixing machine for food or pharmacy
Product introduction of dry powder mixing machine
This machine has w shape structure, which is widely used in pharmaceutical, chemical, food, feed, dyes, electronics and other industries. This machine is used to mix power and granular materials with good fluidity, and the effect is significant. Various technical indicators can reach the standards of similar foreign products. Simplified use of stainless steel, inner and outer walls polished, beautiful appearance, convenient operation.
Technical data of dry powder mixing machine
| Model | BSW-180 | BSW-300 | BSW-500 | BSW-1000 | BSW-1500 | BSW-2000 | BSW-2500 | BSW-3000 | BSW-4000 |
| Full volume(m3) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 |
| Mixing time(min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Mixing speed(rpm) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 7.8 | 7.8 |
| Power(kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 7.5 | 7.5 | 7.5 | 11 |
|
Gross rotation
height(mm)
|
1850 | 1850 | 1950 | 2460 | 2540 | 3650 | 3650 | 3700 | 3730 |
| Weight(kg) | 280 | 310 | 550 | 810 | 980 | 2150 | 2150 | 2500 | 3200 |
Working principle:
The rotation axis of the double cone mixer deviates an angle from the center of the mixing container during mixing. When the container rotates, the material diffuses, flows and moves tangentially. In this way, under the action of frequent and rapid rotation and turning, the mixed materials are mixed with each other, which ensures that the materials can meet the ideal mixing requirements in a short time.
Advantage:
The structure of this machine is unique, the mixing efficiency is high and no dead corner .
Its inner and outer are processed through polishing.Its appearance is beautiful.Its mixing is uniform.Its scope of application is wide.
The forced stirrer can also be equipped,according to request of client, to meet the higher mixing requirements.
Application:
1. Chemical materials such as plastics, rubber additives, dyes etc.
2. Food materials such as rice, bean, spice, sugar, etc
3. Pharmacy such as protein powder, vitamin powder, etc.
Our Services:
1. Pre-sales service:
Inquiry and consulting support with 24 hours;
Machine sample test service;
Factory visit
2. After-sales service:
Instructing how to install and use the machine;
one year warranty;
video support;
engineer is available to go to user's factory to help install and train.
