Product Details:
|
| Port: | Shanghai | Type: | Grinder |
|---|---|---|---|
| Material: | Stainless Steel | Applicantion: | Chemical, Food And Pharmaceutical Line |
| Usage: | Grinding Powders, Spices, Herbs | Core Components: | Motor |
| Logistics Mode: | By Ship, By Train, By Air | Work Voltage: | Customized |

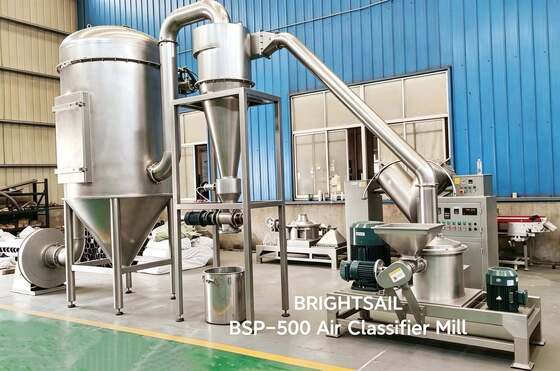

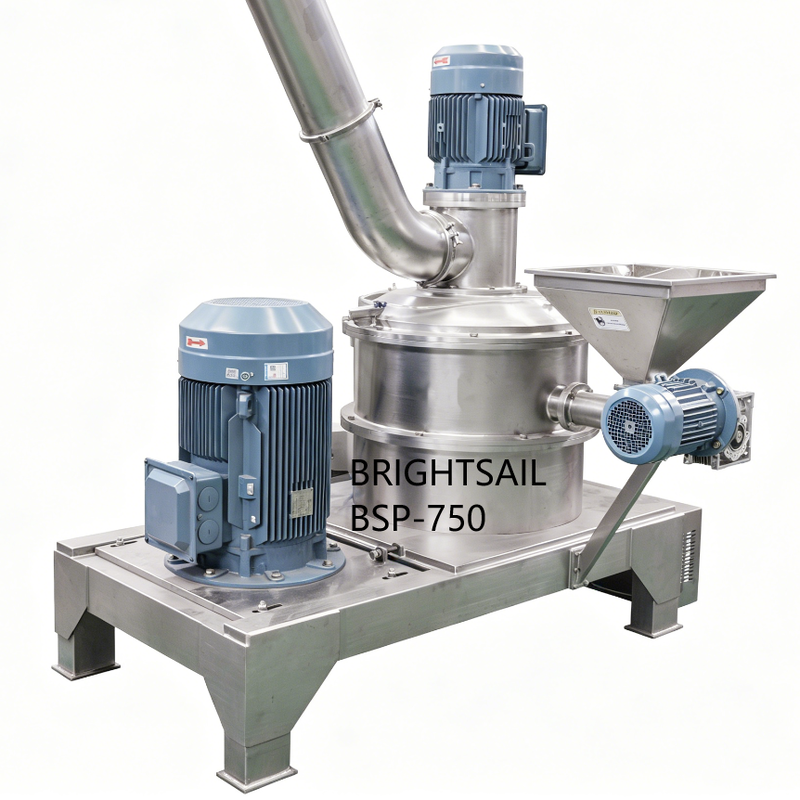

Sorrel Grinder Ultra Fine Powder Mill Food Grade SS304 CE Certified
1) Introduction of sorrel powder grinder

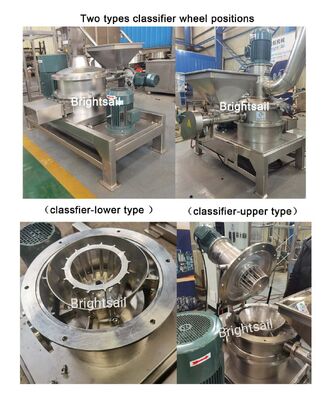

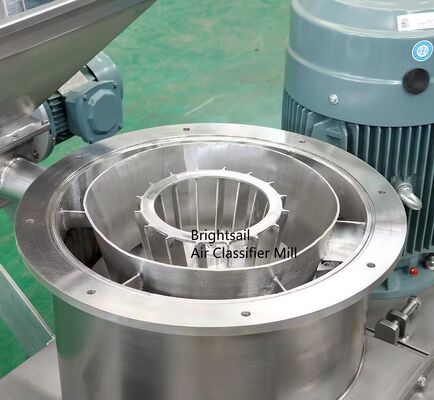

This machine adopts the air classifier mill (ACM) principle — high-speed rotating blades crush dried sorrel leaves through impact and shearing, while the built-in classifier wheel dynamically separates particles by size. Only powder reaching the target fineness passes through; oversized material recirculates for further grinding. Mesh size is controlled by adjusting the classifier wheel RPM, eliminating the need to swap screen meshes.
2) Technical data of sorrel powder grinder
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
3)Application of sorrel powder grinder
Food industry: spice, grains, sugar, leaves, beans, plants, herbs, etc
Chemical industry: calcium carbonate, citric acid, zinc stearate, talc, bentonite,etc
Medical industry:Glucose, Vitamins, Protein, Baking Soda,Chinese herb,etc
