Product Details:
|
| Product Name: | Maltodextrin Ultrafine Pulverizer Air Classifier Mill For Food-Grade Superfine Powder Grinding | Material: | SS304/316 |
|---|---|---|---|
| Cpacity: | 80-1200 Kg/h | Fineness: | 60-2500 Mesh |
| Voltage: | Customized | Package: | Container |

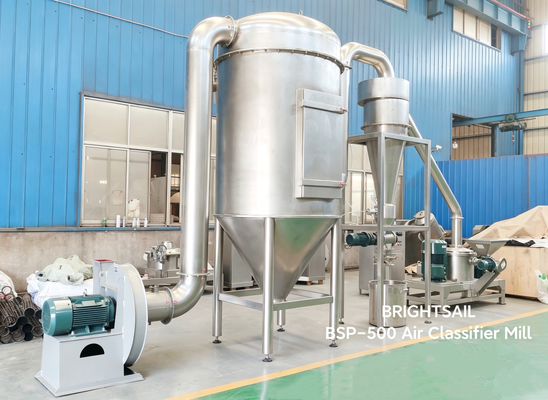

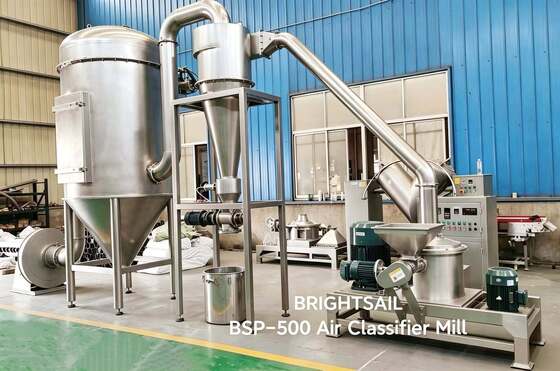

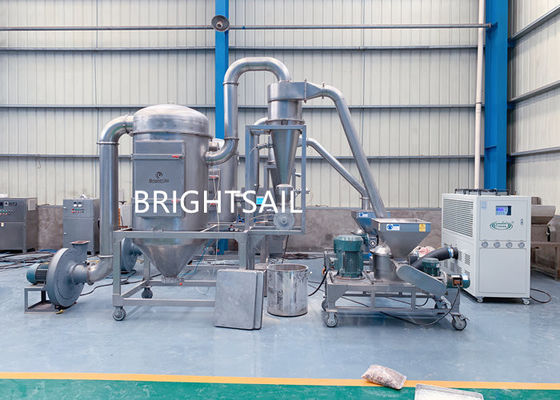

Maltodextrin Ultrafine Pulverizer Air Classifier Mill for Food-Grade Superfine Powder Grinding
Maltodextrin Ultrafine Pulverizer is a food-grade air classifier mill engineered for superfine grinding of maltodextrin, dextrose and other sugar-based food powders. The integrated classifier wheel delivers adjustable fineness, dust-tight hygienic construction and easy-clean design.
Working principle:

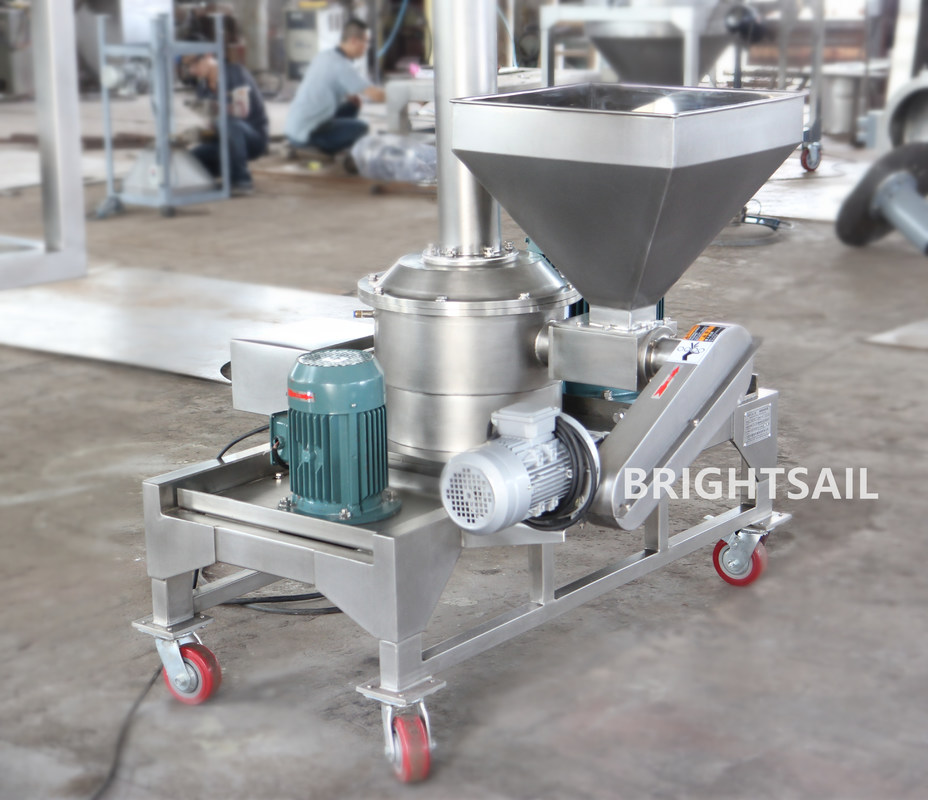

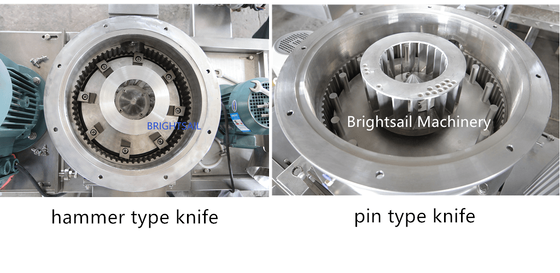

Hammer knives grind the maltodextrin into fine particles.
A variable-speed classifier wheel separates fine powder from coarse — coarse particles fall back for regrinding, no screen needed.

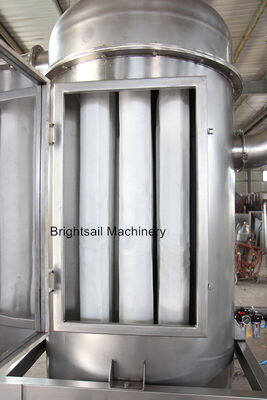

Finished powder is carried by airflow into the cyclone + dust collector, giving dust-free discharge and high collection efficiency.
Fineness is tuned by adjusting classifier speed — one machine covers a wide mesh range.
Technical data:
|
Model
|
BSP-250
|
BSP-350
|
BSP-450
|
BSP-500
|
BSP-750
|
BSP-900
|
BSP-1000
|
|
Capacity (kg/h)
|
10-100
|
20-200
|
40-500
|
50-800
|
120-1800
|
800-2500
|
1000-3600
|
|
Input size (mm)
|
＜ 8
|
＜ 15
|
＜ 15
|
＜ 15
|
＜ 15
|
＜ 20
|
＜ 20
|
|
Powder fineness(mesh)
|
60-2500
|
60-2500
|
60-2500
|
60-2500
|
60-2500
|
60-2500
|
60-2500
|
|
Crush motor(kw)
|
5.5
|
15
|
18.5
|
30
|
55
|
90
|
110
|
|
Classifier motor(kw)
|
1.5
|
1.5
|
4
|
5.5
|
11
|
15
|
18.5
|
|
Blower (kw)
|
4
|
5.5
|
11
|
18.5
|
37
|
45
|
75
|
|
Feed motor (kw)
|
0.37
|
0.55
|
0.55
|
1.1
|
1.5
|
2.2
|
2.2
|
|
Discharge motor(kw)
|
0.75
|
0.75
|
0.75
|
1.1
|
1.5
|
1.5
|
1.5
|
|
Speed of principle axis (rpm)
|
~8400
|
~6500
|
~5600
|
~4400
|
~3100
|
~2450
|
~2450
|
|
Grading impeller speed (rpm)
|
~4000
|
~4000
|
~4000
|
~8500
|
~3000
|
~3000
|
~3000
|
FAQ:
1) Q: Will the machine explode while working?
A: Usually, no. If the powder is explosive or your local agency has specific requests, please contact us, we can provide anti-explosion solutions for your machine.
2) Q: What is the material of the machine?
A: Stainless steel 304 is our standard material.
3) Q: What is the warranty term?
A: Guarantee against defects in materials and workmanship of equipment and parts for one year. Any parts in need of replacement will be shipped free of charge but labor for installation will not be included. Warranty does not cover abuse or user error and quick-wear parts.
