Product Details:
|
| Heating Source: | Steam+electricity | Warranty: | One Year |
|---|---|---|---|
| Material: | Stainless Steel 304 | Temperature Range: | 20-160(adjustable) |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| High Light: | oven drying machine,air circulation oven |
||

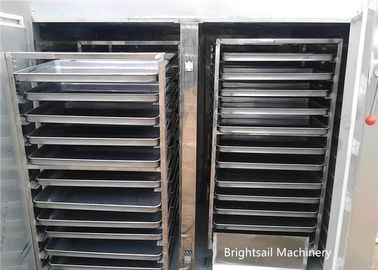

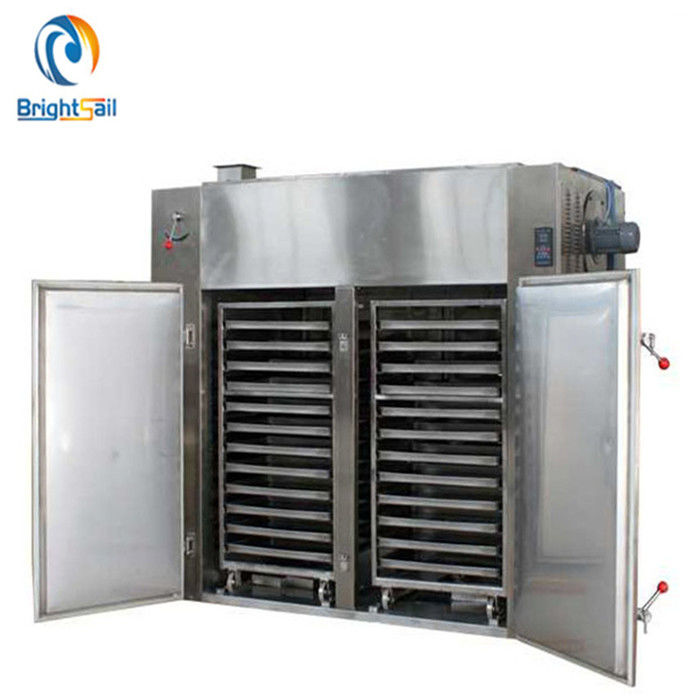

Hot air circulating food dryer oven machine spice tea leaves drying equipment
BSO drying machine is widely applied for the heating and dehumidifying of raw materials and products in the lines of pharmacy, chemical, foodstuff industry etc.
It applies a low-noise and high temperature-proof axial flow blower and an automatic temperature control system which is fully sealed, making that the heat efficiency of the drying oven increases from 3-7% of traditionaloven to 35-45% of the present one. Our products can be customized according to the needs.
Working method:
The basic principle of BSO series hot air circulation drying oven is that steam or electricity is used as heat energy, and the heat is generated by steam radiator or electric heating element, and the fan carries out convection heat transfer, carries out heat transfer to the material, and continuously adds fresh air to the oven and discharges moist air out of the oven. In drying time, the oven keeps proper relative temperature and humidity. The most important feature is that most of the hot air is circulated in the drying chamber, thus enhancing heat and mass transfer, and saving energy.
Main features:
1) The heating sources are optional, you can use steam or electricity.
2) Hot air circulation drying system, which can dry food faster.
3) Temperature control which can set different hot air temperature according to different food.
Our company:
Brightsail Machinery has found nearly 15 years, who designs and manufactures overall powder processing solutions for the Chemical, Pharmaceutical, Food, Mineral, Cosmetic and Plastic industries, like powder grinding machines, mixing machines, sifting machines...etc.And our company has been one of the most famous powder equipment manufactures in the industry.
Since we have sold many machines to more than 50 countries,we have enough experience and technology to help you to find a most suitable machine.We wish to grow up and develop together with all new and old customers.
Technical data:
| Model | BSO-O | BSO-I | BSO-II | BSO-III | BSO-IV |
| Capacity(kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Blower power(kw) | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam expend(kg/h) | 15 | 20 | 40 | 60 | 80 |
| Electric-heating power(kw) | 9 | 15 | 30 | 45 | 60 |
| Down temp(℃) | ±2 | ±2 | ±2 | ±2 | ±2 |
| Tray(piece) | 24 | 48 | 96 | 144 | 192 |
| Overall size(L*W*H)(mm) | 1400*1200*2000 | 1200*2300*2000 | 2300*2200*2000 | 3200*2200*2000 | 4280*2200*2000 |
| Weight(kg) | 820 | 1500 | 1800 | 2200 | 2800 |
