Foodstuff Industry Dryer Oven Machine Large Capacity Hot Air Circulating Oven

Certification
China Jiangyin Brightsail Machinery Co.,Ltd. certification
China Jiangyin Brightsail Machinery Co.,Ltd. certification
Customer Reviews
Brightsail Machinery is a very good company,we have purchased their products for two times at present,their machines are very good and work well in our factory.Don't hesitate to contact them and make an order.

—— Medifoods Group

We purchased two processing line from Brightsail Machinery for making chickpea and spice powder,all of machines are working well in our factory.They are such a good supplier and a good choice for you to purchase the machines.

—— Imtiaz

I'm Online Chat Now

Foodstuff Industry Dryer Oven Machine Large Capacity Hot Air Circulating Oven

Foodstuff Industry Dryer Oven Machine Large Capacity Hot Air Circulating Oven
Foodstuff Industry Dryer Oven Machine Large Capacity Hot Air Circulating Oven
Foodstuff Industry Dryer Oven Machine Large Capacity Hot Air Circulating Oven Foodstuff Industry Dryer Oven Machine Large Capacity Hot Air Circulating Oven Foodstuff Industry Dryer Oven Machine Large Capacity Hot Air Circulating Oven Foodstuff Industry Dryer Oven Machine Large Capacity Hot Air Circulating Oven

Large Image :  Foodstuff Industry Dryer Oven Machine Large Capacity Hot Air Circulating Oven

Product Details:
Place of Origin: China
Brand Name: Brightsail
Certification: CE ISO
Model Number: BSO
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: Wooden case or container
Delivery Time: 25-30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month

Foodstuff Industry Dryer Oven Machine Large Capacity Hot Air Circulating Oven

Description
Product Name: Hot Air Drying Machine Application: Industry Of Chemical,foodstuff,medical
Heating Source: Steam+electricity Warranty: One Year
Down Temp(℃): ±2 Temperature Range: 20-160(adjustable)
Voltage: Customized Package: Wooden Case Or Container
Other Name: Dryer Machine
High Light:

air circulating oven

,

Foodstuff Industry Dryer Oven Machine

,

Large Capacity Hot Air Circulating Oven

Foodstuff Industry 60 To 480kg Per Batch Large Capacity Hot Air Drying Oven



Why Choose Us:​
Within years, we have exported machine to over 70 countries.

For example, New Zealand, Germany, Poland, Thailand, Pakistan, Qatar, Nigeria and many other countries.

So you do not need to worry about the export procedures because we know all the procedures.



If you want to send inquriy to me about our machine,could you please tell me?
1.What material do you need to mix?Do you know the density of it?
2.What capacity you expect?
3.What voltage you want?For example ,380V 50hz 3p......
4.What material of the equipment you want?usually wo adoopt stainless steel 304.
You can also choose:A.all carbon steel
B.contact part SS304,other parts carbon steel
C.all SS 316
D.contact part SS316 parts SS304
5.Do you need a jicket around the mixer for cooling or heating?



Technical data:

Model BSO-O BSO-I BSO-II BSO-III BSO-IV
Capacity(kg/batch) 60 120 240 360 480
Blower power(kw) 0.45 0.45 0.9 1.35 1.8
Steam expend(kg/h) 15 20 40 60 80
Electric-heating power(kw) 9 15 30 45 60
Down temp(℃) ±2 ±2 ±2 ±2 ±2
Tray(piece) 24 48 96 144 192
Weight(kg) 820 1500 1800 2200 2800



Product Introduction:

BSO hot air circulation dryer is mainly used for drying vegetables, fruits, seafood, Chinese medicinal materials, grain, leaves, cassava, etc. It is widely used in food, chemical, pharmaceutical and other industries. High productivity and low consumption.



Working method:

It uses steam or electricity as heat. There is a steam radiator or electric heating element that produces heat. The use of fans for convection heat transfer, heat transfer to the material, constantly add fresh air, exhaust moisture. During the drying process, maintain the appropriate relative temperature and humidity in the box. The biggest characteristic is most hot air circulates in the box body, enhances the heat and mass transfer, saves the energy. These two series are widely used in pharmaceutical, chemical, food, light industry, heavy industry and other industries of raw materials and products heating and dehumidification.

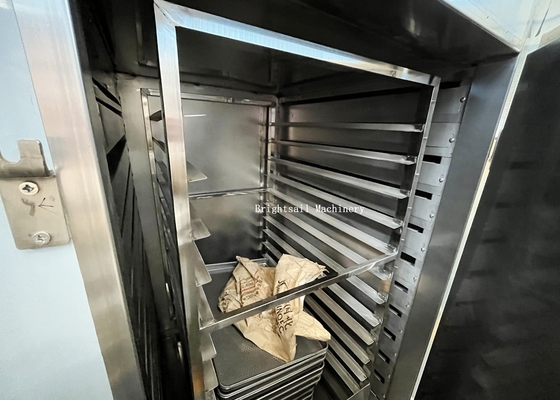

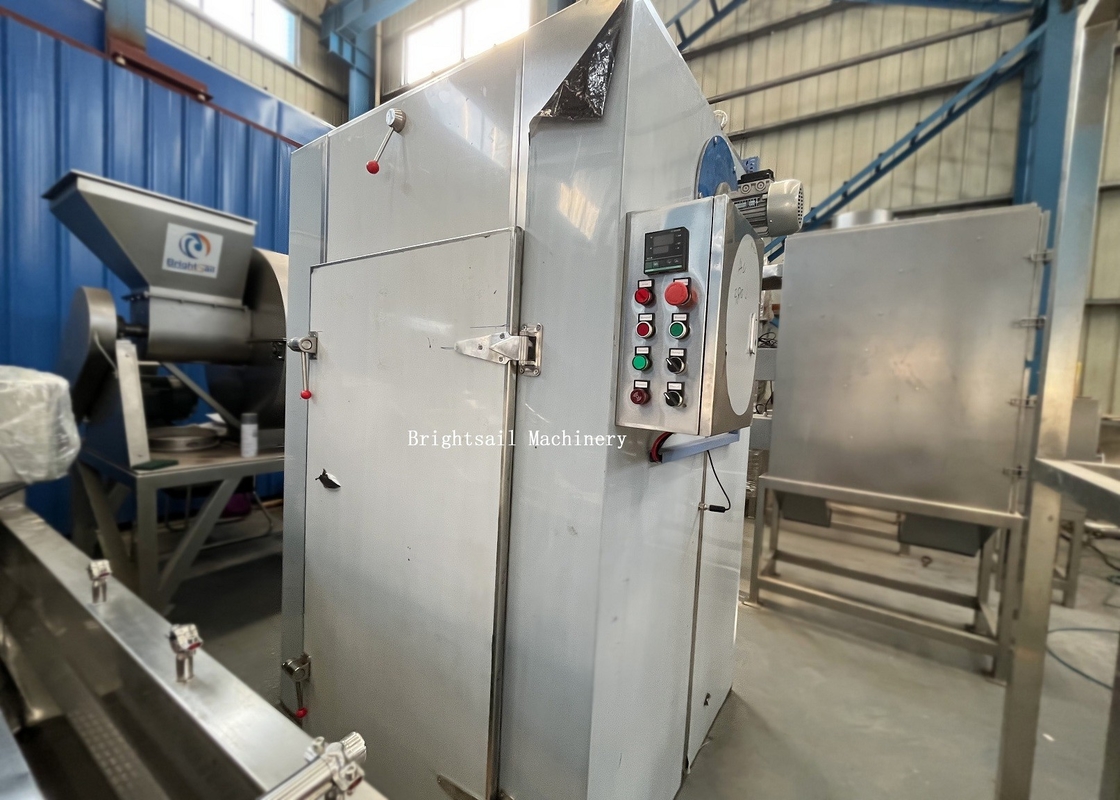

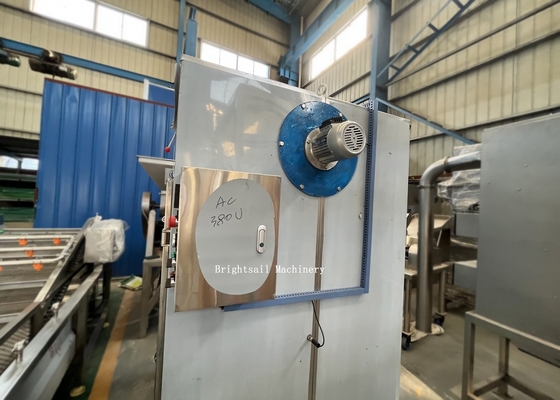

Main Structure:

The machine is mainly composed of drying chamber, combustion chamber, electric heating pipe, ventilation system and control system.

1. Drying room: stainless steel material is used inside and coated steel plate is used outside to save cost while ensuring hygiene and corrosion resistance in the drying process.

2. Combustion chamber: in order to solve the smoke and dust generated in the production process, the combustion chamber is connected with the chimney, which is efficient and convenient.

3. Ventilation: when it comes to humidity control, the ventilation system plays an important role in balancing the humidity and air in the machine.

4. Control system: the control cabinet controls the electric heating pipe and fan. In addition, a temperature and humidity tester is installed to facilitate users to understand the current situation.



Main features:

1. Using Centrifugal multi-wing fan circulation system, special duct structure, stable temperature control, uniform temperature field, standard manufacturing process, beautiful appearance, easy operation and maintenance, purchase only need to provide power and required working environment.

2. The accessory parts are fully matched with the assembly, and the main functional parts are original parts of international advanced level.

3. Oven control system with over-temperature power protection and buzzer alarm, 24 hours unattended and safe use.

4. Equipped with high-temperature Silicone Rubber water stop; Human Awareness of environmental protection; to ensure the health of workers.



Foodstuff Industry Dryer Oven Machine Large Capacity Hot Air Circulating Oven 0
