Product Details:
|
| Product Name: | Spice Grinder Crusher Pulverizer Grinding Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS304/316 | Warranty: | One Year |
| Feed Size: | <100mm | Output Size: | 0.5-20mm |
| Capacity: | 50-1000 Kg/h | Voltage: | Customized |
| High Light: | spice powder making machine,chili powder making machine |
||

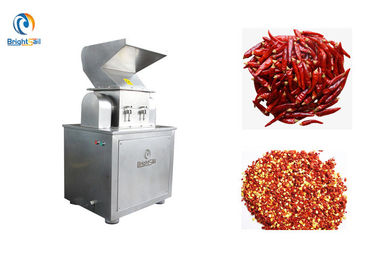

50 to 1000 kg per hour SS304 dry red pepper spice coarse crusher machine
Our BSC coarse crusher is applied as supporting equipment before fine crushing process in industries of chemical, pharmaceutical, electronics, foodstuff... etc. It is used as specialized equipment for coarse crushing of materials in preparatory process, and crush hard and tough materials like plastics, rubber, etc. Especilally, it is not limited by viscosity, hardn ess, softness and fiber shape of material and has good effectt to all materials.
Components of this machine which have contact with materials to be crushed are all made of stainless steel with good anti-corrosive property. The housing is in a full enclosure for the convenience of cleaning. The interior walls are all treated to achieve evenness and smoothness of the surface, thus to ensure production of such materials as medicine, food and chemical in better conformity with the national “GMP” standard.
Working method:

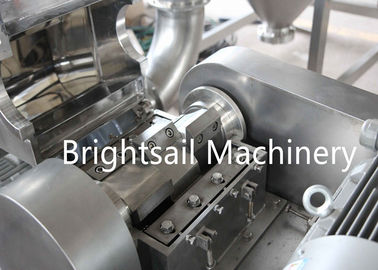

This machine is of horizontal crushing structure. The material is fed into the crushing chamber through a hopper, crushed by cutting and impact of both fixed and rotating knives, and flows into the exit automatically under the effect rotating centrifugal force.
Main features:
1) Simple structure ,easy in installation and maintation.
2) Easy to clean and low noise.
3) Stable running and has good wearability.
4) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
Packing and Shipping:
1.Packaging: in wooden case
2.If you want to know the transportation cost:
1)by air-----please tell me your airport name;
2)by sea------pls tell me your delivery port.
Our company:
Brightsail Machinery has found nearly 15 years, who designs and manufactures overall powder processing solutions for the Chemical, Pharmaceutical, Food, Mineral, Cosmetic and Plastic industries, like powder grinding machines, mixing machines, sifting machines...etc.And our company has been one of the most famous powder equipment manufactures in the industry.
Since we have sold many machines to more than 50 countries,we have enough experience and technology to help you to find a most suitable machine.We wish to grow up and develop together with all new and old customers.
Drawing:
Technical data:
|
Model
|
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
|
Capacity(kg/h)
|
80-300
|
100-800 |
200-1000
|
500-1500
|
|
Size of input granules (mm)
|
<100
|
<100
|
<100
|
<100
|
|
Crushing Fineness(mm)
|
0.5-20
|
0.5-20 | 0.5-20 | 0.5-20 |
|
Speed of principal axis(rpm)
|
960
|
960
|
960
|
960
|
|
Motor power(KW)
|
3
|
5.5
|
7.5
|
11
|
|
Overall Size(L*W*H) (mm)(Type B)
|
900*600*1140
|
900*700*1440
|
900*800*1440 |
1000*900*1440
|
|
Weight(Kg)
|
200
|
300
|
380
|
500
|
