Product Details:
|
| Warranty: | One Year | Capacity: | 100-2000 Kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | Motor: | 22-75kw |
| Discharge Motor: | 0.75-1.5kw | Blower: | 7.5-18.5 Kw |
| Voltage: | Customized | Package: | Container |
| High Light: | powder grinding machine,industrial powder grinder |
||

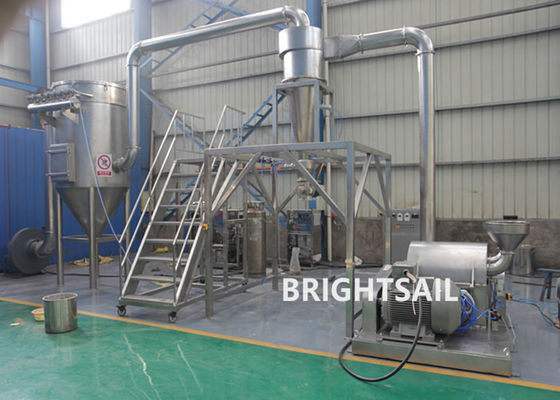

100 to 1000 kg per hour food grade powder grinder machine grain hammer mill
BSDF advanced hammer mill is the newest product especially for grinding spice,it has three milling areas:coarse milling area,middle milling area and fine milling area,and the material will be ground three times at the same time.
BSDF advanced hammer mill is widely applied in food,chemical and medical industries,such as various of spices, leaves, chickpea, arabic gum,grain,animal feed...etc.And we have sold this kind of machine to many countries,for example Americ,Indonesia,Saudi Arabia,Pakistan...etc.
Working method:
BSDF advanced hammer mill combines three milling areas,so the material will be milled three times at the same time.When grinding,material is sent to mill chamber to be crushed, by force of blower, powder will go to cyclone and be discharged, the ultra-fine powder will be separated to dust collecting box.The production process is dust-free and continuous.
The fineness of the material has many specifications. Customers need to adjust rotor speed to control the particle size according to their demands. The adjustment method: use the speed control button of the main motor converter operating panel on the electric control box.
Main features:
1) It doesn't need a screen/sieve in the mill chamber,if you want to change the powder particle size,just change the speed by inverter.
2) Since there is no screen in mill chamber,when grinding, there is no heat rising in mill chamber.You don't need to worry power get stuck in the screens or the product quality will be got affected by the heat. That's why it is very suitable for grinding heat-sensitive material or material contains fiber or oil.
3) Since the mill chamber of this machine is very big,you don't need a grind big material into small granules first.It can save more time for making powder.
4) It can save more power, its capacity is much bigger than other same motor type traditional hammer mill.
Our company:
We Brightsail Machinery has specialized in the manufacturing of grinder machine for more than 15 years. We stick to give our clients quality machines and best service. Honesty is our first principle when doing business. Within years, we have exported machines to more than 50 countries.
Packing and shipping:
Standard wooden case package, or in container without packing, to prevent them from destroying during transportation.
Delivery by Sea, Express(DHL, Fedex etc), By air
We will choose the most safety, convenient and economic way to delivery goods.
Technical data:
| Model | BSDF-350 | BSDF-450 | BSDF-550 | BSDF-650 | BSDF-750 |
| Capacity(kg/h) | 100-200 | 300-500 | 400-800 | 600-900 | 800-1300 |
| Fineness(mesh) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
| Grind motor(kw) | 22 | 37 | 45 | 55 | 75 |
| Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 |
| Blower(kw) | 7.5 | 15 | 15 | 18.5 | 18.5 |
| Rotor speed(rpm) | 3500-4500 | 3300-4200 | 2900-3600 | 2400-3100 | 2100-2700 |
