Product Details:
|
| Product Name: | BSP Air Classifier Mill Metal Oxide Air Classifier Mill Metal Oxide ACM Ggrinder From Brightsail | Application: | Food, Pharmacy, Chemical, Etc |
|---|---|---|---|
| Other Name: | Acm Classifying Mill | Material: | Stainless Steel 304/SS316L |
| Type: | Acm Pulverizer | Input Size: | <15mm |
| Fineness: | 60-2500 Mesh | Usage: | Making Powder |
| Function: | Fine Grinding | ||
| Highlight: | Dry Grain Grinding Mill,Air Classifying Mill,Herb Medicine Grinding Mill |
||

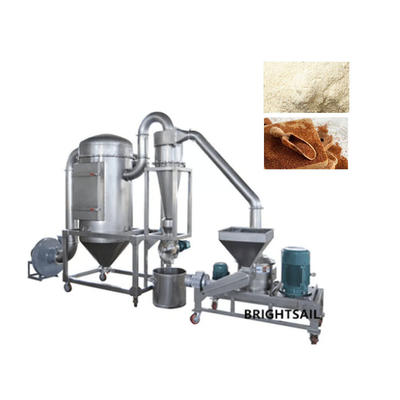

BSP air classifier mill Metal oxide air classifier mill Metal oxide ACM Ggrinder from Brightsail
I.What Metal oxide air classifier mill Can Do
The air classifying mill is super fine powder grinder machine, it can be used to grind metal oxide and many other materials into powder.
II.How Metal oxide air classifier mill work

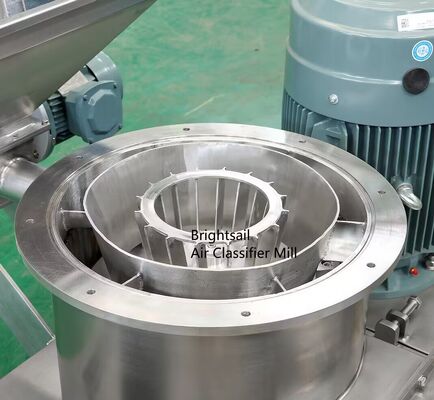

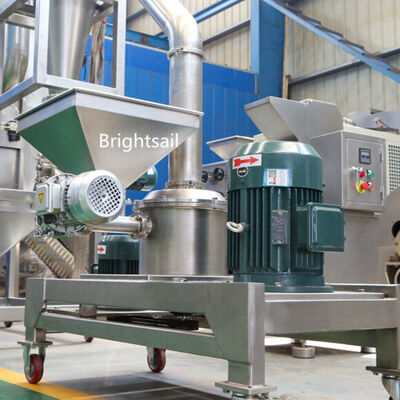

Firstly, the materials need to be fed into the grinder from the feeding hopper. Then the materials would enter into the mill chamber and get ground inside. Finally, under the force of blower, the powder materials would be discharged from the discharge valve.
III.Metal oxide air classifier mill Advantages
1) You can get very fine powder by this mill.
2) Very simple way to change the output size,

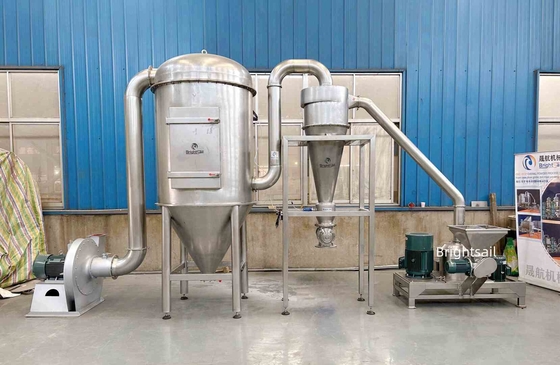

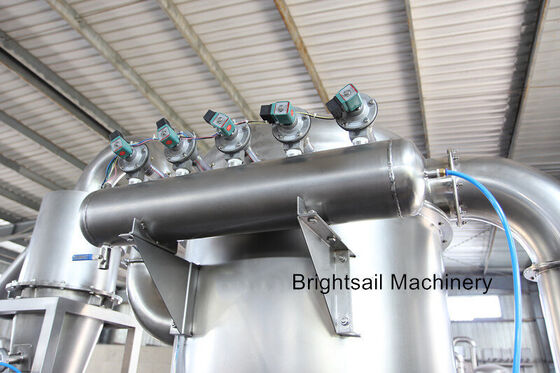

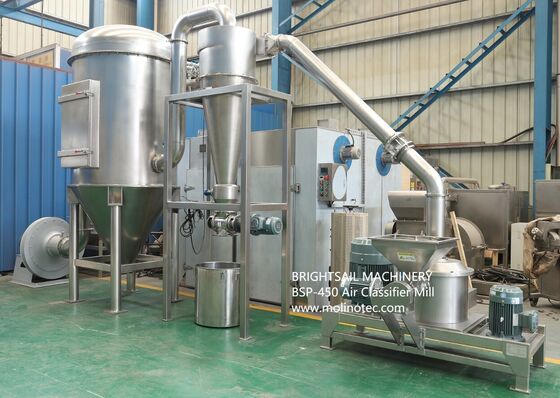

3) The production process is continuous with the cyclone and dust collecting system.
IV.Technical data:
| Model | BSP-250 | BSP350 | BSP-450 | BSP-500 | BSP-750 | BSP-900 | BSP-1000 |
| Capacity(kg/h) | 10-100 | 20-200 | 40-500 | 50-800 | 120-1800 | 800-2500 | 1000-3600 |
| Input size(mm) | ＜8 | ＜15 | ＜15 | ＜15 | ＜15 | ＜20 | ＜20 |
| Powder fineness(mesh) |
60-2500 |
||||||
| Crush motor(kw) | 5.5 | 15/18.5 | 18.5/22 | 30/37 | 55/75 | 90 | 110 |
| Classifier motor(kw) | 1.5 | 1.5 | 4 | 5.5 | 11 | 15 | 18.5 |
| Blower(kw) | 4 | 5.5 | 11 | 18.5 | 37 | 45 | 75 |
| Feed motor(kw) | 0.37 | 0.55 | 0.55 | 0.75 | 1.5 | 2.2 | 2.2 |
| Discharge motor(kw) | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 | 1.5 | 1.5 |
| Speed of principle axis(rpm) | ~8400 | ~6500 | ~5600 | ~4400 | ~3100 | ~2450 | ~2450 |
| Classifier speed(rpm) | ~4000 | ~4000 | ~4000 | ~3500 | ~3000 | ~3000 | ~3000 |
Video of BSP air classifier mill operation
FAQ:
Q: What certificate do you have?
A: We have CE,ISO certificates.
Q: Which city are you from?
A: We are in Wuxi city, which is near Shanghai, the distance is only ~150KM.
By car, it takes ~2 hours from our city to Shanghai.
