Product Details:
|
Warranty: | One Year | Capacity: | 50-5000 Kg/h |
---|---|---|---|
Fineness: | 10-120 Mesh | Material: | SS304/316 |
Voltage: | Customized | Package: | Container |
High Light: | rice powder mill,powder grinding mill |
Fine icing sugar powder milling machine crystal salt baking soda pulverizer

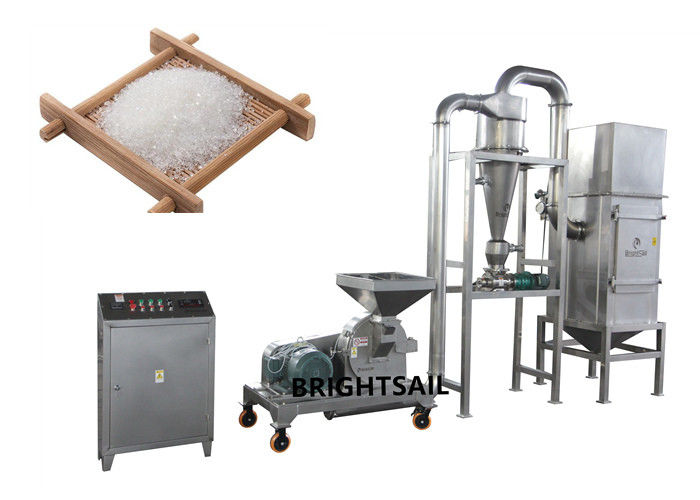

This machine is our BSG series self absorb grinder, with whole grinding system (crusher part, dust collector and cyclone).This grinder is widely used in food, chemical and other industry. This type grinder is very suitable for krystal materials grinding, for example, this grinder can make 1-2 tons sugar powder per hour. And for grinding leaves,grains,chemical powder,etc, this type is also suitable.
With the dust collecting system, the powder dust will be collected in the cloth bags, which is more environmental for the industry.
Working method:
The products enter into the grinding chamber through the hopper. The product, impacted by the high-speed rotary grinding discs/hammers, been thrown into the fixed Gear Rings, then been bounced and sheared. Meanwhile, under the impact, cut, rubbing force by turns, the material is micronized well. Under the negative pressure from the Blower and Impeller, the powder are absorbed into the cyclone through the sieve, pipes for discharging. And some mini-powder dust is collected by the pulse de-duster.
Main Features:
1) Grinding Chamber is equipped with Water-Cooling system, which can effectively avoid the high-temperature's damage to your products caused during the grinding process.
2) Unique Impeller designed, the air-flow caused during grinding will take the final powder products with the hot air together out of the grinding chamber. No blocks/jam.
3) The Sieves are made from good quality Stainless Steel. Special Design. You can change the mesh Sieves easily when you need another mesh size powder.
4) Wonderful Cyclone-discharging system, your desired final evenly powder will be discharged from our automatic rotary discharging device by a discharging motor, which makes the final powder be discharging smoothly, no powder flying.
5) The machine also equipped with a Dust-Collecting system, which is used for collecting the mini-powder produced unavoidable during the grinding process into a collector, this process makes sure the final discharging powder from our automatic rotary discharging device to be much more uniform.
6) All Stainless Steel Constructed, according to GMP standards, meet the food-grade, chemical-grade, pharmaceutical-grade standards.
Our company:
Our company was established in 2002. We are specializing in the production of grinding machines,mixing machines,drying machines,packing and filling machines, etc., widely used in food, medicine, chemical and other industries.After years of careful design and improvement, it has absorbed similar products at home and abroad Based on the characteristics and advantages, the product has won praise and praise from customers at home and abroad, and is willing to work with you to create a better future!
Technical data:
Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
Crusher part:
