Product Details:
|
| Material: | SS 304/316 | Capacity: | 20-1800 Kg/h |
|---|---|---|---|
| Input Size: | <15 Mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75 Kw | Voltage: | Customized |
| High Light: | vegetable powder making machine,flour hammer mill |
||
White powdered sugar food powder machine fine baking soda flour mill pulverizer

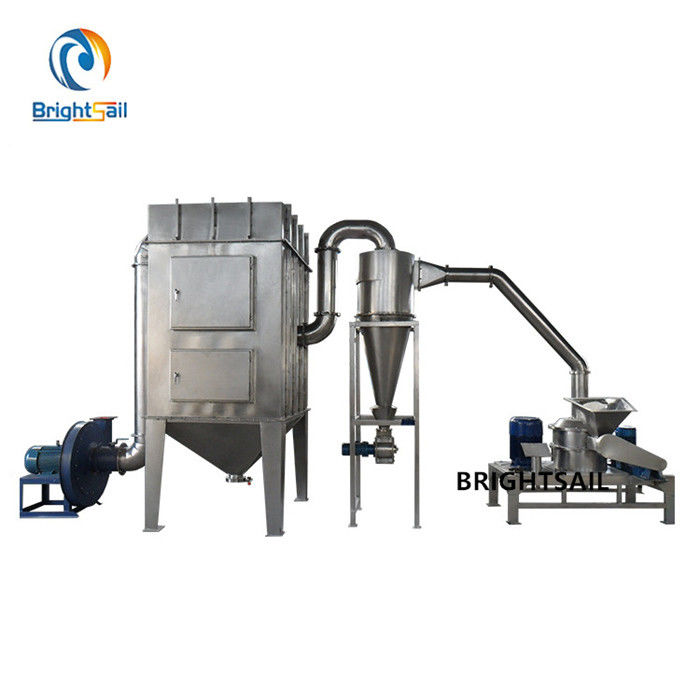

BSP ultra-fine pulverizer is made up of three parts: main machine, auxiliary machine and electric control box. It has properties of wind selection, having no sieve or net, and an even granularity of the processed material.
The production process going on continuously and the machine can undertake grinding of chemical products, foodstuff, medicine, medicament, cosmetics, plastic, dyestuff, resin, grain, etc.
Working method:
The material enters the grinding chamber via the funnel and spiral conveyor where it is sheared and broken by the fastrotating blades. The power passes the guide ring and enters the classification chamber. As the classification wheel is in revolution, both the air force and centrifugal force act on the powder.As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a great mass, they are thrown back into the grinding chamber to be ground again, while the particles whose diameters are smaller than the critical diameter enter the cyclone separator and bagtype collector via the material exit pipe be means of negative pressure wind conveyance.The discharge material meets the requirement for the product.
Main features:
1. Integration of mill and classifier,it is free from over grinding.
2. Sharp particle size distribution,fineness 60-2500 mesh is adjustable.
3. Inner temperature is reduced by airflow,and grinding chamber is used water cooling jacket for cooling,suitable for heat-sensitive materials.
4. Negative operation is free of dust pollution.
5. Depolymerizing agglomerated material
6. Grinder equipped with slag discharge device,which can automatic discharge the hard and impurity materials
7. Compact structure.
8. A little wearing parts and easy maintenance.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
FAQ:
If you want to send inquiry to me about our BSP ultra-fine pulverizer, could you please tell me?
Q1: What''s the raw material you want to grind?(like chili,sugar,herbs...)
Q2. What''s the size of your raw material?(such as 5mm,10mm,15mm...)
Q3: What''s the capacity of the machine you require?(like 50kg/hr, 300 kg/hr,500 kg/hr...etc)
Q4: What''s the finished powder fineness you want to get ?(can measured by mesh or mm or micron)
