Product Details:
|
| Certification: | CE And ISO | Capacity: | 50-5000 Kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | Material: | SS304/316 |
| Package: | Container | Product Name: | Herb Grinding Machine |
| Other Name: | Herbal Hammer Mill | ||
| High Light: | Barley Grinding Machine,herbal hammer mill,Powder Making Malted Grinding Machine |
||
Got CE Industrial 12 To 120mesh Powder Making Malted Barley Grinding Machine
About Us:
Brightsail Industries Group Co.,Ltd. is the trade dept of Jiangyin Brightsail Machinery Co.,Ltd and Jiangyin Heng Sheng Steel Structure Co.Ltd which is established in 2002.
We provide professional powder processing overall solution,grinder,mixer,sifter,welding service,welding machine,chemical powder...etc.
Technical Data:
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
Introduction:

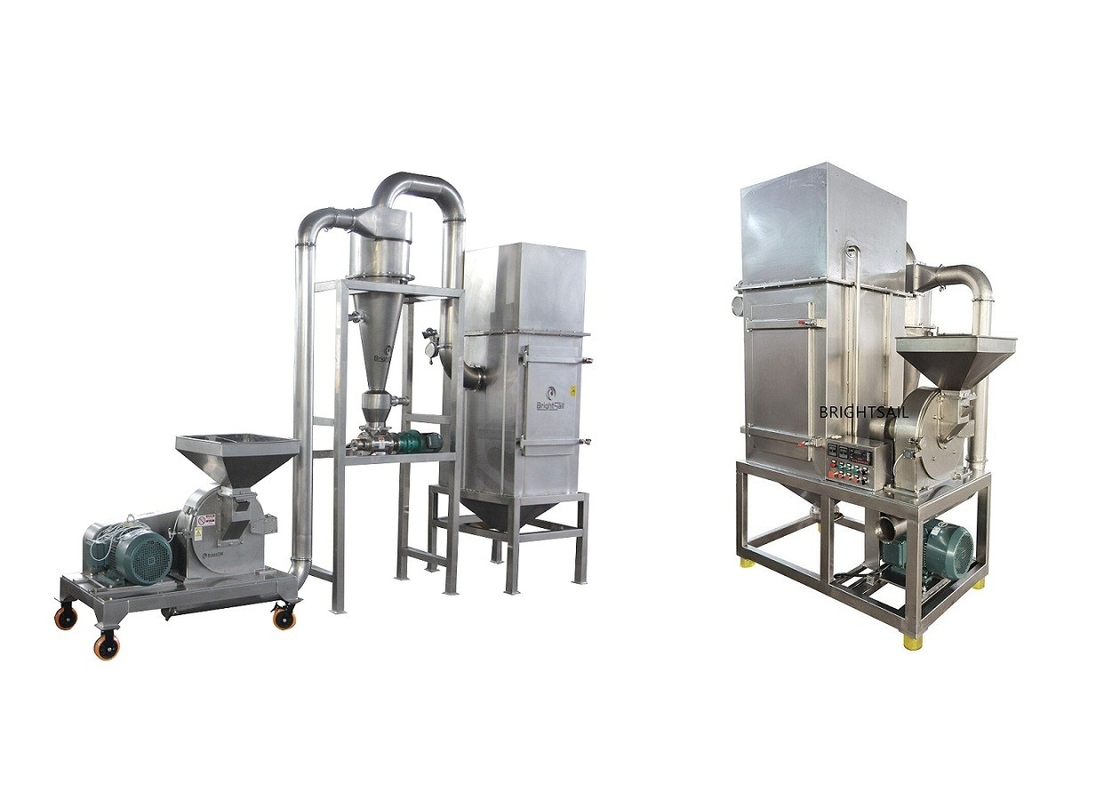

The BSG self-absorb grinding machine can be widely used in different fields of chemical industry,medical industry,foodstuff industry... The auxiliary machine includes a cyclone dust collector and a bag filter, which can collect air more tightly; the main machine is equipped with an active crushing disc device, and the direction of the hammer head can be changed.
In addition to crushing, it also has the functions of grading and winnowing centrifugal shearing, which can control the particle size. After the material is crushed, it is sent to the air outlet by negative pressure. It is an ideal equipment for food, pharmaceutical, chemical and other industries.
Main Properties:
This equipment consists of crushing chamber,suction device,discharge device,pulse dust catcher,blower,electrical cabnets,etc.
After crushing material discharge is under normal temperature, material's cell integrity is kept well.
Capacity is 2-3 times bigger than usual universal grinder.
Working method:

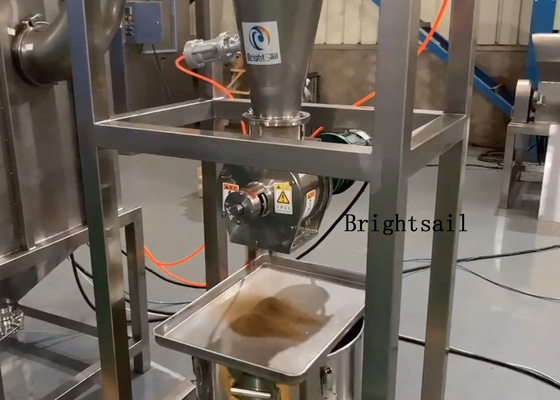

The material enters the grinding chamber through the hopper, is thrown into the stationary ring gear by the impact of the high-speed rotating disc/hammer, and is then bounced and cut. At the same time, the material is refined by alternating forces of impact, cutting and grinding. Under the negative pressure of the fan and the impeller, the powder is absorbed into the cyclone separator and discharged through the screen mesh and pipes. The pulse precipitator can collect a small amount of fine dust.
Features:
1. The grinding room is equipped with a water cooling system to effectively avoid product damage caused by high temperature during grinding.
2. The screen is made of high-quality stainless steel. Special design. When you need another sieve grade powder, you can easily change the sieve.
3. The machine is also equipped with a dust removal system to collect the fine powder inevitably produced in the crushing process into the dust collector. This process ensures that the final powder output of our automatic rotating powder output device is more uniform.
4. All stainless steel structure, in line with GMP standards, food grade, chemical grade and pharmaceutical grade standards.
