Product Details:
|
| Name: | Chili Powder Grinding Machine | Capacity: | 50-5000 Kg/h |
|---|---|---|---|
| Fineness: | 10-120 Mesh | Material: | SS304/316 |
| Voltage: | Customized | Package: | Wooden Case Or Container |
| Other Name: | Powder Grinder Machine | ||
| High Light: | spice industry chili powder grinding machine,50kg capacity chili powder grinding machine,5000kg capacity chilli grinding machine |
||
Spice Industry 50 To 5000kg Per Hr Capacity Chili Powder Grinding Machine

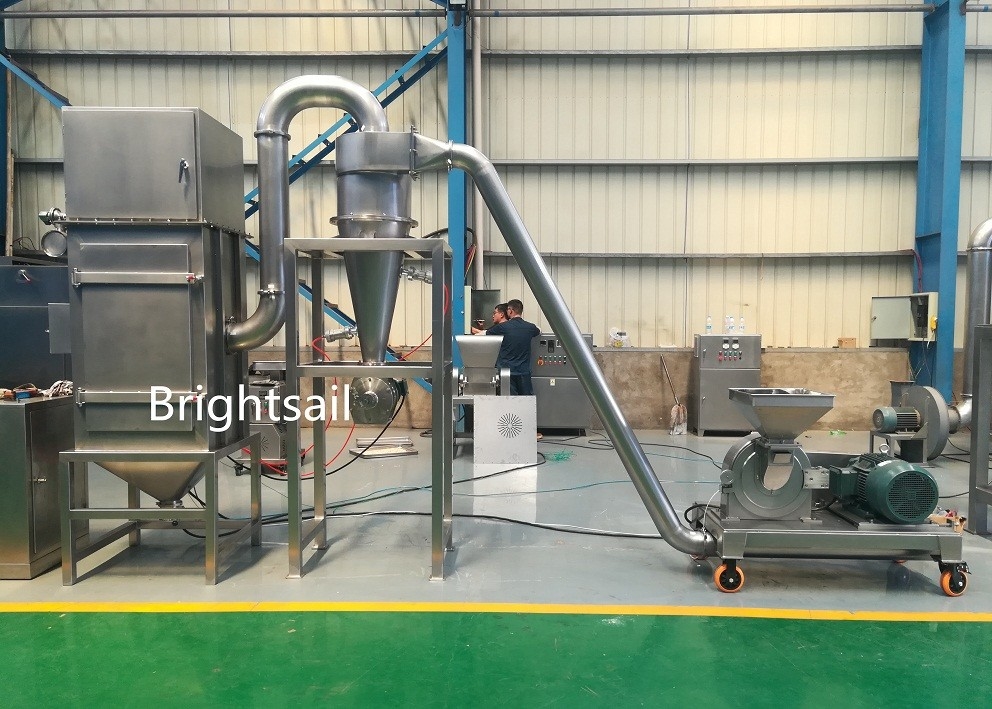

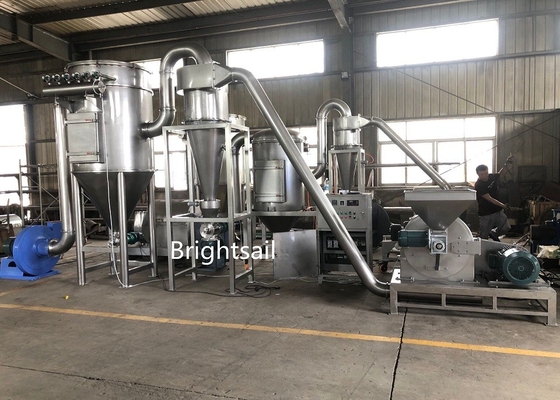

The BSG self-priming grinding unit produced by our company is composed of main machine, auxiliary machine, conveying pipe, electric control device, feeding device, etc. . The auxiliary machine has cyclone separator with bag filter and air collector. The main machine is equipped with active crushing disc device, which can change the direction of hammer head. In addition to crushing, it also has grading function and screening Centrifugal shearing function, and the size of particles can be controlled. After the material is crushed, it is sent to the air intake by negative pressure. Is the food, pharmaceutical, chemical and other industries ideal equipment.
Technical data:
| Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
| Speed of principal axis(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
| Crusher motor(kw) | 5.5 | 7.5 | 15 | 22 | 30 |
| Blower(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Discharge motor(kw) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
| Grinding capacity(kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
Working method:
The material enters the grinding chamber through the hopper, is thrown into the fixed ring gear under the impact of the high-speed rotating disc/hammer head, and then is cut by bouncing. At the same time, under the alternating action of impact, cutting and grinding forces, the material is refined. Under the negative pressure of the fan and Impeller, the powder is absorbed into the cyclone separator and discharged through the screen Mesh and pipes. The pulse precipitator can collect a small amount of fine dust.
Main Features:
(1) The grinding chamber is equipped with water cooling system to effectively avoid product damage caused by high temperature during grinding.
(2) The screen is made of high-quality stainless steel. Special design. When you need another sieve size powder, you can easily change the sieve.
(3) The machine is also equipped with a dust collection system to collect the fine powder inevitable in the grinding process into the dust collector. This process ensures that the final powder discharge of our automatic rotary powder discharge device is more uniform.
(4) All stainless steel structures comply with GMP standards, food grade, chemical grade and pharmaceutical grade standards.
FAQ:
If you want to send an inquiry about BSG self-absorbing grinding set, can you let me know?
1) what material do you want to grind, is it dry?
2)What is the size before grinding? What kind of powers do you want? (Kg/hour)
3) what kind of Mesh or mm or micron (size) powder do you want?
4)How much voltage do you want? For example, 380V 50hz 3P; 440V 60hz 3P; 220V... (we only provide three-phase voltage because our machines are industrial, not domestic.)
5) usually we use 304 stainless steel, if you want 316 stainless steel, please let us know.
