Product Details:
|
| Product Name: | Dry Food Sugar Spice Powder Making Milling Grinding Pulverizer Machine | Application: | Food,chemical,pharmaceutical,etc |
|---|---|---|---|
| Material: | SS 304/316 | Capacity: | 20-1800 Kg/h |
| Input Size: | <15 Mm | Fineness: | 60-2500 Mesh |
| Crusher Motor: | 11-75 Kw | Voltage: | Customized |
| High Light: | sugar powder making machine,flour hammer mill |
||

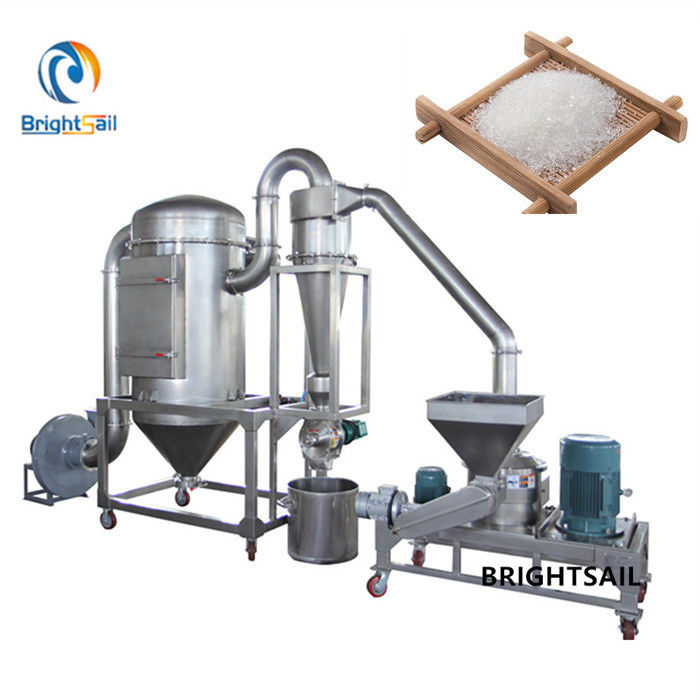

SS304 dry food powder machine air classifier mill sugar powder grinding machine
BSP ultra-fine pulverizer is a verticl shaft reflective micro crusher, can finish at the same crushing and micro powder sorting the two processes. It consists of the body, frame, feeding device, crushing equipment, discharge tube, transmission device and motor and other components, supporting the host, precipitator, high pressure centrifugal fan, shut the wind instrument,a whirlwind collector and electric control cabinet and other components of a complete set of air turbine micro powder units. Don't stop in the case,can be arbitary regulationsize.Products of granularity, fine degrees can reach up to 60-2500mesh.
Working method:
The material would be conveyed by feeding system evenly to grinding chamber, and would be impacted by high-speed rotating beater, and also under the centrifugal force, it would impact the grinding track. By several different pulverization powers, the material would be grinded into fine powder. The grinded powder would go with air flow up to the classifying chamber. With the help of adjustable classifier wheel, coarse powder and fine powder would be separated. Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the grinding chamber to be grinded again.
Main features:
1. It has a wide adaptability range, the production process is continuous, and the discharge granularity is adjustable (60-2500mesh).
2. Compact design, reasonable structure, air-selective, no screen. The machine is equipped with a hierarchical structure that enables comminution and grading to be completed at one time.
3. The crushing and grading of the materials to the finished product is carried out in the same closed system. After dust removal treatment, it is not polluted, and it is an ideal equipment for environmental protection.
Our company:
Brightsail Machinery is specialized in producing pharmaceuticala machinery, food machinery, chemical mchinery and daily chemical machinery, our company is a professional machinery manufacturer integrating research, development and sale, enjoying a high reputation among our peers in the industry. Our main products include: pulverizer machines,mixing machines,vibrating sifting machine,drying machine,packing and filling machine, etc.
We sincerely thank our old and new customers for your cooperation and support. We expect you to talk business with us by phone or by mail and create a brilliant future together.
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
