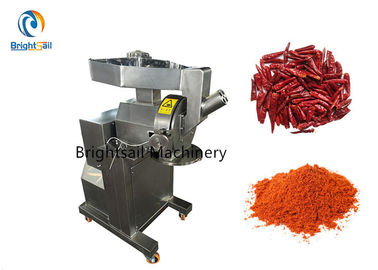

Dried Chili Spice Powder Machine 10 To 40 Mesh Pepper Flour Hammer Mill Grinder

Dried chili spice powder machine 10 to 40 mesh pepper flour hammer mill grinder

This is the smallest grinder machine,also one of the best selling products in our company.It can grind many kinds of materials,such as spices,moringa leaves,date seeds,chickpea,dry flowers...etc.

Working method:

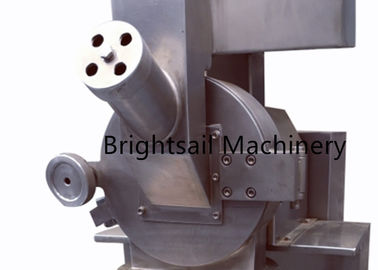

The machine consists of three parts: frame, mill room and feeding part. There is a movable knife head on the spindle. A fixed gear ring is installed in the mill room. There is a screen under the ring of teeth. When the spindle works at high speed, the movable tool head runs together. The material is impacted, frictioned and cut by fixed ring and movable hammer. Material also collides with each other. In the combined effect, they are crushed into powder.

Main features:

1. The crushed materials can be directly discharged from the mill chamber. If you want to change the powder particle size,just change the screen inside the mill chamber.
2. The contact part of grinder is made of stainless steel, which has good corrosion resistance.
3. The inner wall of machine is smooth, no powder and no dead corners.
4. It is easy to be cleaned, can make the production of medicine, chemicals, food in line with GMP requirements.

Our service:

1) Pre-sale services:
Based on the clients' request and budget, we will offer project of equipment pictures, working site videos, plant processing diagram, assemble drawings, foundation drawings, and plant layout. Clients are also welcome to visit our factory.

2) After-sale services:
Normally, the equipment warranty is 12 months since installation. To establish long term cooperation, we will regularly call and
email our clients to check the equipment working condition and offer suggestions for maintenance.

Technical data:

Model	BS-180	BS-250	BS-300	BS-350
Feed size(mm)	<10mm(granule) <15*40*2(leaf)	<10mm(granule) <15*40*2(leaf)	<10mm(granule) <15*40*2(leaf)	<10mm(granule) <15*40*2(leaf)
Grind fineness(mesh)	10-120	10-120	10-120	10-120
Capacity(kg/h)	3-50	10-100	20-200	30-300
Grind chamber diameter(mm)	200	270	330	380
Rotor speed(rpm)	5900/8600	4200/6200	2600/5100	2200/4400
Motor(kw)	2.2	5.5	7.5	11
Overall size(L*W*H)(mm)	840*470*1020	930*600*1200	1000*650*1500	1150*700*1600
Weight(kg)	112	210	296	430

Good commet from customers:

FAQ:
If you have intention to send a inquiry,could you tell me the information below
1. Raw material's name, feature(like with oil or sugar), size before grinding
2. Expected capacity(kg/h)
3. Output size(mesh, mm, um)
4. Industrial Voltage(like 380V, 50HZ, 3 Phase,etc)
Other requirement if you have, please inform us.
