Product Details:
|
| Product Name: | Spice Grinder Crusher Pulverizer Grinding Machine | Material: | SS304/316 |
|---|---|---|---|
| Warranty: | One Year | Feed Size: | <100mm |
| Output Size: | 0.5-20mm | Capacity: | 50-1000 Kg/h |
| High Light: | granules making machine,powder crushing machine |
||

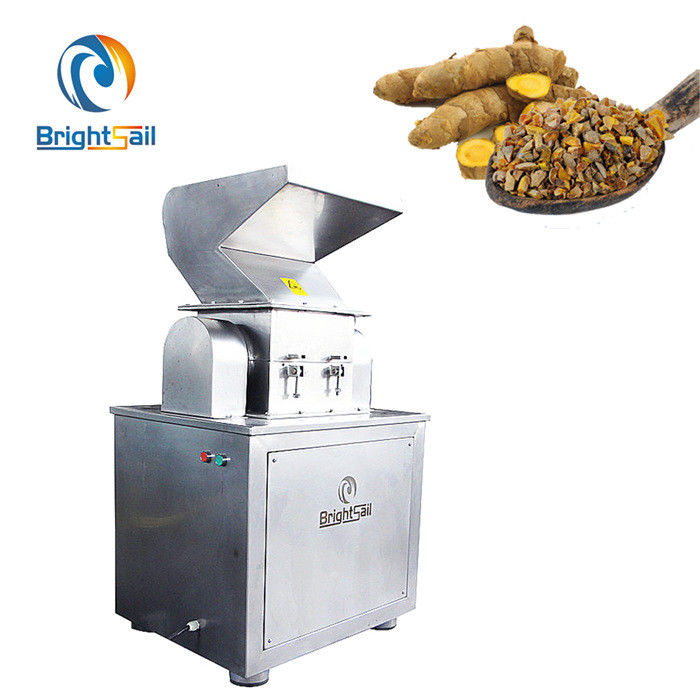

Ginger crusher machine spices cinnamon turmeric granules making machine
BSC coarse crusher is widely used in pharmaceutical, chemical, food and other industries for crushing dry and fragile materials. Materials with low softening point and high viscosity are not suitable for this machine.
Working method:

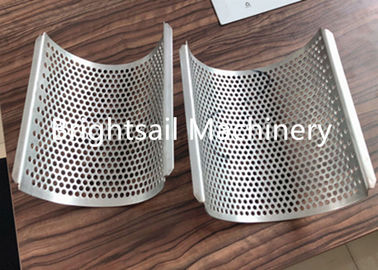

It is a type of horizontal grinding designed to cut large materials into small pieces. There is a counter wheel at the shaft end, which will not be blocked during operation. Raw materials are injected into the hopper, and crushed and cut with a fixed and rotating blade in the crushing chamber. By rotating centrifugal force, the material automatically flows to the outlet. The size of the final product is controlled by the screen. The blade is made of strong and durable hard alloy steel.
Main features:
1. The machine and the parts in contact with the crushed material are made of stainless steel, which has good corrosion resistance.
2. For easy cleaning, the enclosure is fully enclosed.
3. The interior walls have been treated, and the surface is smooth and smooth, ensuring that the production of materials such as medicines, foods, chemicals, etc. is more in line with national "GMP" standards.
Why choose us:
1. International high quality certification product chain
2. Manufacturer, more reasonable price
3. Solid technical support and after-sales service
4. Uphold the principle of “Customer Supreme”,provide customers with the best service
5. Exports to more than 50 countries, good customers feedback
6. One-stop service, customized exclusive project feasibility report
Technical data:
|
Model
|
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
|
Capacity(kg/h)
|
80-300
|
100-800 |
200-1000
|
500-1500
|
|
Size of input granules (mm)
|
<100
|
<100
|
<100
|
<100
|
|
Crushing Fineness(mm)
|
0.5-20
|
0.5-20 | 0.5-20 | 0.5-20 |
|
Speed of principal axis(rpm)
|
960
|
960
|
960
|
960
|
|
Motor power(KW)
|
3
|
5.5
|
7.5
|
11
|
|
Overall Size(L*W*H) (mm)(Type B)
|
900*600*1140
|
900*700*1440
|
900*800*1440 |
1000*900*1440
|
|
Weight(Kg)
|
200
|
300
|
380
|
500
|
