Product Details:
|
| Product Name: | Spice Grinder Crusher Pulverizer Grinding Machine | Material: | SS304/316 |
|---|---|---|---|
| Warranty: | One Year | Feed Size: | <100mm |
| Output Size: | 0.5-20mm | Capacity: | 50-1000 Kg/h |
| High Light: | granules making machine,sugar crusher machine |
||

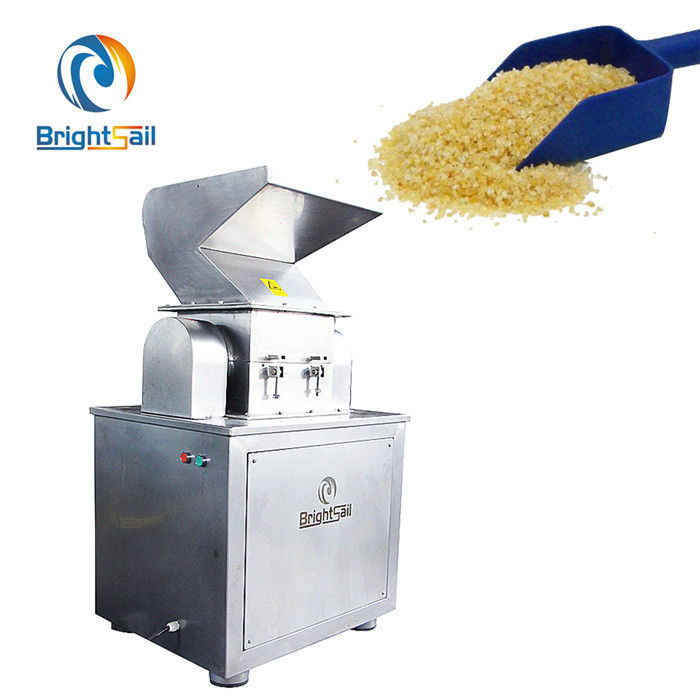

Arabic gum crusher machine coconut shell granules grinder pulverizer machine
BSC coarse crusher is used as specialized equipment for roughly crushing material in pharmaceutics, chemicals and foodstuff. It can crush hard and tough materials. Especially it is not limited bu glutinousness, hardness, softness or fiber shape of material and has good crushing effect for all materials.
Working method:
This machine is of horizontal crushing structure. The material is fed into the crushing chamber through a hopper; crushed by simultaneous cutting of both fixed and movable knives and rotating impact of rotating knife; and is flowed to the exit automatically under the effect of rotating centrifugal force. Besides, this machine is designed according to GMP standard and wholly made of stainless steel. It is simple in structure, convenient to clean and low in nose, the most perfect equipment in present coarse crushers.
Main features:
1. The machine and the parts in contact with the crushed materials are made of stainless steel, which has good corrosion resistance.
2. The shell of the machine is fully enclosed for easy cleaning.
3. The interior wall is treated and the surface is flat to ensure that the production of materials such as medicines, foods, chemicals, etc. is more in line with national "GMP" standards.
Our service:
The products purchased by our company are guaranteed to be intact within one year.
If there is a quality problem during the warranty period, our company will repair it for free.
a. Before sending the machine, we will test and adjust it so that you can use it directly after receiving the machine.
b. Operation videos and instructions will be sent to customers to help them make better use of the machine.
In addition, our company also provides lifetime technical support and accessories. After-sales service is not limited by time, we will solve your problem in time. If you encounter some problems while using our products, please feel free to contact us.
a. If there are any problems during use, professional advice will be provided.
b. Supply all kinds of common parts all year round.
c. 24-hour online service support
Technical data:
|
Model
|
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
|
Capacity(kg/h)
|
80-300
|
100-800 |
200-1000
|
500-1500
|
|
Size of input granules (mm)
|
<100
|
<100
|
<100
|
<100
|
|
Crushing Fineness(mm)
|
0.5-20
|
0.5-20 | 0.5-20 | 0.5-20 |
|
Speed of principal axis(rpm)
|
960
|
960
|
960
|
960
|
|
Motor power(KW)
|
3
|
5.5
|
7.5
|
11
|
|
Overall Size(L*W*H) (mm)(Type B)
|
900*600*1140
|
900*700*1440
|
900*800*1440 |
1000*900*1440
|
|
Weight(Kg)
|
200
|
300
|
380
|
500
|
