Product Details:
|
| Product Name: | Spice Grinder Crusher Pulverizer Grinding Machine | Material: | SS304/316 |
|---|---|---|---|
| Warranty: | One Year | Feed Size: | <100mm |
| Output Size: | 0.5-20mm | Capacity: | 50-1000 Kg/h |
| High Light: | granules making machine,powder crushing machine |
||

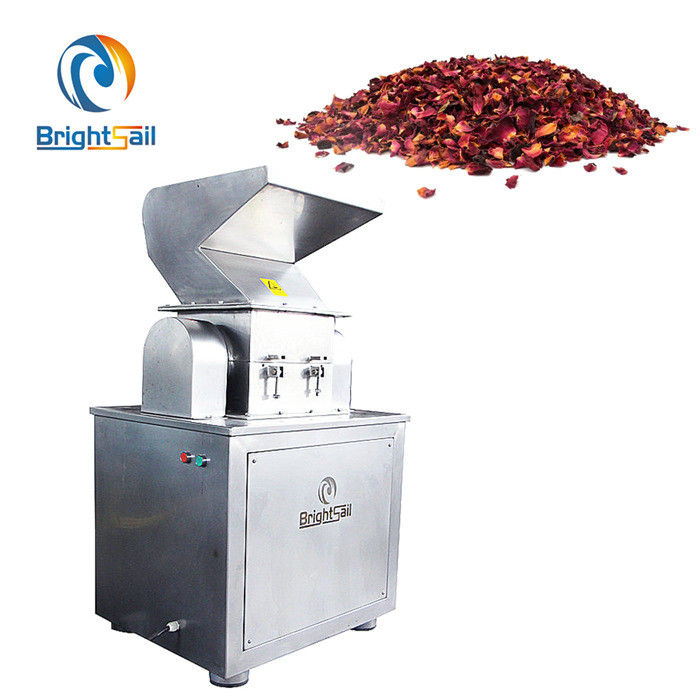

Tea leaf crusher machine dry hibiscus flowers pieces making grinder machine
BSC coarse crusher is applied as supporting equipment before fine crushing process in lines of pharmaceutical,chemical and food stuff etc. It has a good effect for most material.
It is suitable for making granules or be used as a primary mill. For example, BSC coarse crusher can crush dried turmeric slices, chilli, black pepper, dry flowers into small granules as preparation work before entering the fine grinding machine.
Working method:
The material is fed into the crushing chamber through a hopper, crushed by the cutting and impact of both fixed and rotating cutters, and flows into the exit automatically under the rotating centrifugal force.
Main features:
1 Material,usually all material use stainless steel 304,if you want stainless steel 316,we can make for you.
2 Automatic operating :just press button
3. Easy to clean,usually use water cooling and air compressor is ok .
4. Final granules size range from 0.5-20mm.
5. Machine has water cooling system to reduce working temperature,so can working long hours.
Our service:
1) Professional advice and rich experience will help to choose the machine.
2) Lifetime maintenance and thoughtful technical support.
3) Technical personnel can be sent abroad for installation.
4) If you have any questions before or after delivery, you can contact us at any time.
5) Trial run and installation videos, instructions and circuit diagrams will be given to you with the machine.
Technical data:
|
Model
|
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
|
Capacity(kg/h)
|
80-300
|
100-800 |
200-1000
|
500-1500
|
|
Size of input granules (mm)
|
<100
|
<100
|
<100
|
<100
|
|
Crushing Fineness(mm)
|
0.5-20
|
0.5-20 | 0.5-20 | 0.5-20 |
|
Speed of principal axis(rpm)
|
960
|
960
|
960
|
960
|
|
Motor power(KW)
|
3
|
5.5
|
7.5
|
11
|
|
Overall Size(L*W*H) (mm)(Type B)
|
900*600*1140
|
900*700*1440
|
900*800*1440 |
1000*900*1440
|
|
Weight(Kg)
|
200
|
300
|
380
|
500
|
Good comment from customer:
FAQ:
1. What material do you want to grind?is it dry, what is the size of raw material?
2. What capacity you expect ? (kg/h) What mesh or mm or micron(size) of the powder you want?(The finer size you want,the lower capacity you will get)
3. What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...etc.(We only provide 3P, because our machines are all for industrial use,not for family.)
