Product Details:
|
| Product Name: | Spice Grinder Crusher Pulverizer Grinding Machine | Material: | SS304/316 |
|---|---|---|---|
| Warranty: | One Year | Feed Size: | <100mm |
| Output Size: | 0.5-20mm | Capacity: | 50-1000 Kg/h |
| High Light: | granules making machine,sugar crusher machine |
||

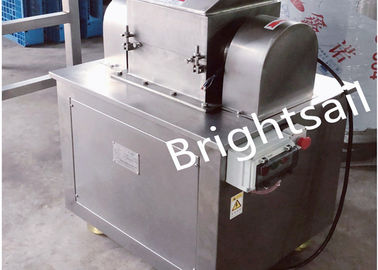

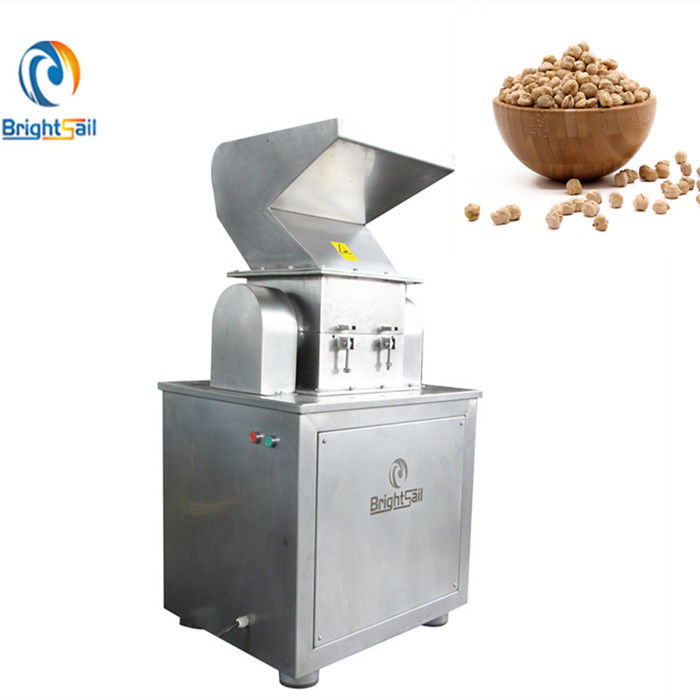

1 to 5 mm grain crusher machine chickpea granules ginseng root grinder machine
BSC coarse crusher is applied by the industries of pharmaceutics, chemical, metallurgy ,foodstuff, and architecture atc. It specially grinds the hard and solid granule materials including the breaking of plastics materials and rubber, as well as the pre-treatment coordinated machine for fine grinding process.
There are two types of coarse crusher for you to choose: vertical type and table type(different in the outlet port position).
Working method:
By means of relative motion between movable and fixed fluted discs, the material is crushed by the impact and friction of the teeth and the impact among material. The crushed material enters into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a bag. Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utitization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.
Main features:
1) Due to the simple structure of the machine, it is very simple and convenient to install and maintain
2) Easy to clean and low noise.
3) Stable operation and good wear resistance.
4) Pneumatic components, electrical components, and operating components use world-renowned brand-name components.
Our company:
Brightsail Machinery is a professional manufacturer and exporter, which is concerned with the reseach, design and produce of grinding machine, mixing machine, drying machine, packing and filling machine and other powder process machines. Through constant efforts for several years, our company has grown into a collective company which integrates scientific research, production and marketing.We have exported our machines to North America, South Ameica, Oceanica, Europe, Asia, Africa, more than 50 countries, and gained many good feedback from our clients. Our principle is make win-win with our clients. We help our clients to realize that buying is not spending but investment. What we do is to let our client have maximum return on investment and big benefit by offering high quality product, best price, professional services, and good advices. Make your success!
Drawing:
Technical data:
|
Model
|
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
|
Capacity(kg/h)
|
80-300
|
100-800 |
200-1000
|
500-1500
|
|
Size of input granules (mm)
|
<100
|
<100
|
<100
|
<100
|
|
Crushing Fineness(mm)
|
0.5-20
|
0.5-20 | 0.5-20 | 0.5-20 |
|
Speed of principal axis(rpm)
|
960
|
960
|
960
|
960
|
|
Motor power(KW)
|
3
|
5.5
|
7.5
|
11
|
|
Overall Size(L*W*H) (mm)(Type B)
|
900*600*1140
|
900*700*1440
|
900*800*1440 |
1000*900*1440
|
|
Weight(Kg)
|
200
|
300
|
380
|
500
|
