Product Details:
|
| Product Name: | Spice Grinder Crusher Pulverizer Grinding Machine | Material: | SS304/316 |
|---|---|---|---|
| Warranty: | One Year | Feed Size: | <100mm |
| Output Size: | 0.5-20mm | Capacity: | 50-1000 Kg/h |
| High Light: | granules making machine,powder crushing machine |
||

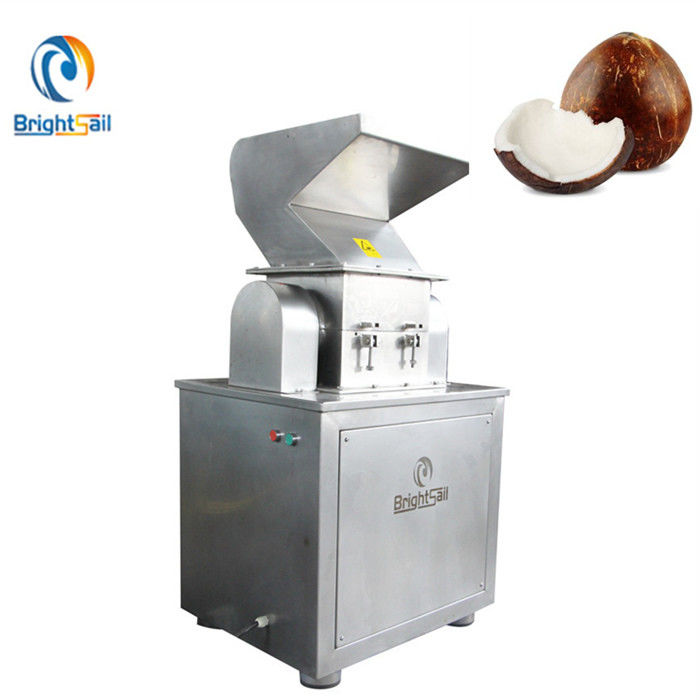

Coconut shell crusher machine ginseng root granuleas making pulverizer machine
BSC coarse crusher is mainly used in Chinese herbal medicines, food, agricultural products, chemical industry and other industries. It processes hard and difficult-to-crush materials, including crushing plastics and rubber, and can also be used as a pre-grinding process. Auxiliary equipment, it is not limited by material viscosity, hardness, softness and fiber, and can have a good pulverizing effect on any material.
Working method:
When the coarse crusher is working, the motor rotates, and the eccentric shaft is driven by the V-belt and the pulley to move the movable cymbal according to the adjusted trajectory, and the movable raft is also periodically reciprocatingly swinged to the fixed raft, when the raft is close. The material is squeezed, split and bent between the two slabs. When the slab is separated, the lower part of the crushing chamber has been broken to a material smaller than the discharge opening, and is automatically dropped by the self-weight, and the material located at the upper part of the crushing chamber is Not broken up to less than the size of the discharge opening, but only a certain distance with the discharge, until the moving jaw is again forced to fix the raft, the material that has fallen in the crushing chamber is again crushed and crushed; Until all the material in the crushing chamber is discharged from the discharge port.
Main features:
1) This machine has two types for you to choose,one is vertical type,another is table type.
2) Easy to clean and low noise,stable operation and good wear resistance.
3) If you want to change particle size,just change the screen.
4) The material of this machine is stainless steel 304,if you want SS316,we can also make it for you.
Our company:
Brightsail Machinery is a wholly-owned enterprise which integrates sales, production and development. It mainly produces pulverizers,mixing machines,drying machines,packing machines, etc.Founded in 2002, after more than 15 years of continuous development, our company have sold machines to more than 50 coutries and won good reputation in our industry.Fully meet customer needs, adhere to the purpose of quality, service, reputation first is our main purpose . Welcome new and old customers to inquiry, order a variety of suitable powder processing equipments.
Technical data:
|
Model
|
BSC-200
|
BSC-300
|
BSC-400
|
BSC-600
|
|
Capacity(kg/h)
|
80-300
|
100-800 |
200-1000
|
500-1500
|
|
Size of input granules (mm)
|
<100
|
<100
|
<100
|
<100
|
|
Crushing Fineness(mm)
|
0.5-20
|
0.5-20 | 0.5-20 | 0.5-20 |
|
Speed of principal axis(rpm)
|
960
|
960
|
960
|
960
|
|
Motor power(KW)
|
3
|
5.5
|
7.5
|
11
|
|
Overall Size(L*W*H) (mm)(Type B)
|
900*600*1140
|
900*700*1440
|
900*800*1440 |
1000*900*1440
|
|
Weight(Kg)
|
200
|
300
|
380
|
500
|
